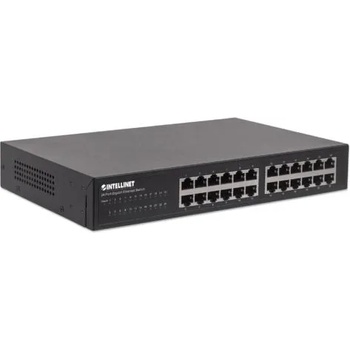

Intellinet 561273

Снимка 1
19 Суич 24 порта 10/100/1000, IC


19 Суич 24 порта 10/100/1000, IC

The Intellinet Network Solutions 24-Port Gigabit Ethernet Switch (561273) offers an array of features while providing superior network throughput. It is very easy to set up and requires no configuration whatsoever. Thanks to its desktop and 19" rackmount design, superior performance and value, the Intellinet Network Solutions 24-Port Gigabit Ethernet Switch is the perfect choice for expanding your small office home or home network.

Extreme Throughput
With a backplane speed of 48 Gbps, plenty of performance is available for your computers, servers and other networking devices.

Auto Features
This Gigabit LAN switch includes many automatic features that make it easy to use. No configuration is required, so installation is Plug and Play and hassle-free. Auto-MDI/MDI-X crossover on all ports eliminates the need for any crossover cables. Each of the 24 ports automatically senses the link speed of the connected network device and adjusts to 10, 100 or 1000 Mbps for compatibility and maximum performance.

Reliable Operation
The Intellinet Network Solutions 24-Port Gigabit Ethernet Switch supports flow control when operating in half-duplex mode and IEEE 802.3ab in full duplex mode to ensure that data transfer and network connectivity run smoothly and uninterrupted. In conjunction with the broadcast storm control and the store-and-forward switching method, full- and half-duplex modes further ensure that your connections remain active even under extremely busy conditions.

Green Ethernet Technology
More often than not, a network switch does not utilize all its ports at all times. Normally, when a computer, notebook, network printer or other network-connected device is powered down, the switch continues to consume the same amount of power as if it were active. Now, thanks to the new, energy efficient IEEE 802.3az technology, the Intellinet Network Solutions 24-Port Gigabit Switch detects link status to all connected devices and reduces the power usage of ports not in use. In addition, the Intellinet Network Solutions switch can adjust the level of power output based on the length of the network cable connected to a particular port. This feature allows for the enjoyment of maximum network performance, and when things slow down, it automatically scales back power usage to conserve energy and save money.

Features:

    10/100/1000 auto-sensing ports automatically detect optimal network speeds
    Auto-MDIX (auto uplink) support for all RJ45 ports
    For use on desktop or mounted in standard 19" rack
    Supports NWay auto-negotiation
    Store and forward switching architecture
    Full/half duplex operation
    Supports 802.3x flow control for full duplex mode and collision-based backpressure for half duplex mode
    Green Ethernet power-saving technology deactivates unused ports and adjusts power levels based on the cable length
    Complies with the IEEE 802.3az (Energy Efficient Ethernet EEE) specification
    48 Gbps switch fabric
    Supports jumbo frames up to 9 kBytes
    Supports 16k MAC address entries
    512 kBytes buffer memory
    Supports MAC address auto-learning and auto-aging
    Fanless design ideal for silent operation
    Includes 19" rackmount brackets

Цвят:
Категория:
Тип:
Дължина:
Конектори:
Мрешова скорост:10/100/1000
Брой_жила_или_влакн :
Размер:
Врати:
Височина:
Тип система:



.
