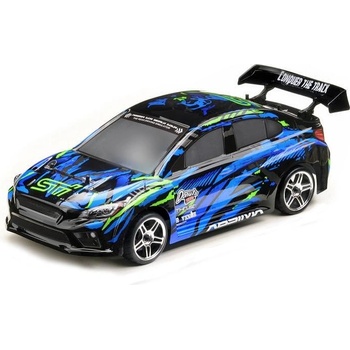

Absima Рали радио управляема кола 1: 10 EP Touring/Rally Car "ATC3.4V2" 4WD RTR Absima 12221V2 (12221V2)

Рали радио управляема кола 1:10 EP Touring/Rally Car "ATC3.4V2" 4WD RTR Absima 12221V2

   The success story continues! We have equipped the ATC3.4 "V2" with some new features that take the vehicle to the next level.   Absima TouringRally Car




The chassis comes with 2 sets of wheels ! One set chrome colored on-road wheels for smooth surfaces like asphalt and one set slightly larger white rally wheels for loose surfaces like sand and gravel.



• NEW* 80A   brushed  speed controller   with T-plug and 540size 15T Motor
• NEW* Speed controller is programmable
• NEW* 6kg steering servo
• NEW* Rally body design
• NEW* 2 wheel sets included - On-road und Rally




  The new 80A brushed speed controller is waterproof, programmable and pre-assembled with a T-connector. To fully exploit the potential of the vehicle, we recommend a 2S LiPo battery for operation. In addition, a separately available programming card (item 2110061) can be used to set various parameters such as brake strength, punch, low voltage protection and much more.    The car is driven by a 540 15T brushed engine which directly accesses the all-wheel drive. The two differentials (front and rear) are driven by an aluminum drive shaft.   Due to the higher power of the speed controller and the use of T-plugs, any 2S LiPo battery can be used - no matter what C-rate and capacity.

  4 oil-pressure shock absorbers provide ideal handling so that a lot of driving fun arises. If you choose the on-road tires, you can make hot drifts on smooth surfaces while the grooved profile of the rally tires provides traction on almost any surface. A 6kg servo takes over the implementation of the steering commands.

  Lightweight and compact design, as well as comfortable and ergonomically shaped - these are just two features of our CR4S 4-channel remote control. Of course, all trim, reverse and dual rate functions are available in the cockpit, so that settings can be made easily via levers and knobs. In addition, the remote control has a "beginner mode" (power reduction by 50%) and is therefore ideally suited for novice drivers.



• 4WD all wheel drive
• 2.4GHz 4-channel radio system

• 80A brushed speed controller with T-plug
• 540size 15T Motor mit 32.000 U/min @ 7.4V
• 6kg steering servo (25T, ball bearing)

• 4 oil shock absorber

• Ball bearing main drive

• Extremely durable composite plastic parts

• Steel differential outdrives

• Aluminum universal joint drive with steel mounts

• Adjustable upper track rods

• 5mm aluminum motor mount

• 6mm shock towers

• 2 differentials (front/rear)

• Stylish touring car body

• Light-Weight chassis (less weight - longer driving time)

• Many aluminum option parts available



• Scale: 1:10

• Dimensions (L/W/H): 470x200x150 mm

• Weight: 1400g

• Wheelbase: 260mm

• Ground clearance: ca. 15mm

• Track width: 170mm front/rear

• On-road wheels front/rear: Ø 65mm / Width: 26mm
• Rally wheels front/rear: Ø 70mm / Width: 26mm

• Shock-oil: 400CPS

• Damper installation length: 60mm
• Internal gear ratio: bevel gear: 13T / ring gear: 38T
• Motor ratio brushed version: Pinion: 26T /  main gear : 58T (module 0.6)




• ATC3.4V2 On-Road/Rally Car RTR
• 2.4GHz CR4S radio system
• Plastic clips for shock absorbers
• Sticker
• Manual

Изисква да добавите:

4x AA batteries for the radio system

7.2V NiMH or 7.4V* LiPo car battery (*recommended)

Charger (suitable for car battery)

Programming card for individual settings of the speed controller

Item number12221V2EAN4250650957667Description 1:10 EP Touring/Rally Car "ATC3.4V2" 4WD blue RTRMotor typeBrushedBattery typeNiMH 7.4V / LiPo 2S/3SBattery includedNoCharger includedNoRadioType2.4GHz - 4CHESC performance80A/320AESC plugT-PlugMotor T/KV540 / 15TMotor pinion26TSteering servo force6kgSteering servo gear typePlasticVehicle lightingNoSpeed40km/hDrive4WDChassis clearance15mmWheelbase260mmLength470mmWi dth200mmHeight150mmWeight1400gManufactur erAbsima
