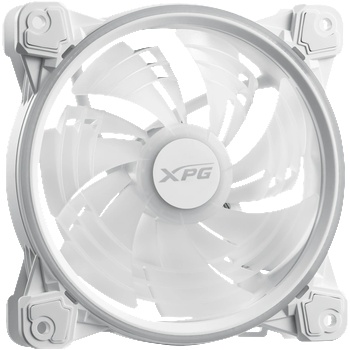

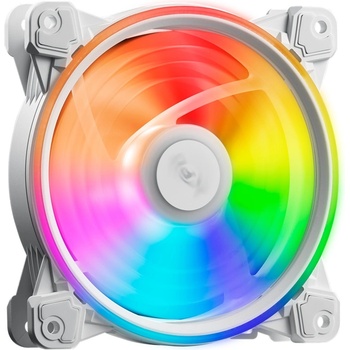

ADATA Hurricane 120 ARGB PWM (HURRICANE120ARGBPWM-WHCWW)

EFFICIENT COOLING PERFORMANCE
XPG HURRICANE 120 ARGB PWM fan offers more than just mesmerizing dual-ring lighting effects. The fan speed runs up to 2,000 RPM, generating up to 61.5 CFM of cool air with 1.42 mmAq of static pressure.

FLUID DYNAMIC BEARING (FDB)
The fluid lubricates between the bearings and shaft when the shaft rotates, offers smoother operation, hence lower noise, better cooling efficiency, lower power consumption, and longer fan life expectancy.

PATENTED FAN BLADE DESIGN
Innovative dual-layer fan blade design is comprised of the Main Blade and the Booster Blade. Both function simultaneously to enhance airflow and static pressure, while minimizing wind resistance hence less noise during operation.

Specifications

Dimensions
120 x 120 x 25mm

Bearing Type
Fluid Dynamic Bearing

Connector
4-Pin

Speed (RPM)
600 ~ 2000 RPM ± 10%

Fan Max Air Flow (CFM)
61.5 CFM ±10%

Fan Max Static Pressure (mmH2O)
1.42mm H2O ±10%

Fan Noise Level (dBA)
18.17 dBA(avg. )

Fan Rated Voltage
DC 12V

Fan Starting Voltage
DC 3.5V

Fan Operating Voltage
DC 3.5V～12.6V

Fan Rated Current
0.2A (Max)

Fan Power Dissipation
2.4W

Fan Protection
Auto-Restart

MTTF
230,000 Hours

Cable Length
610mm ± 10% with Daisy-Chain Capable

Remark
*Data may vary due to differences in testing equipment and environment, with ±10% tolerance.
