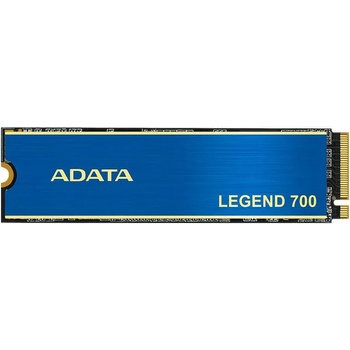

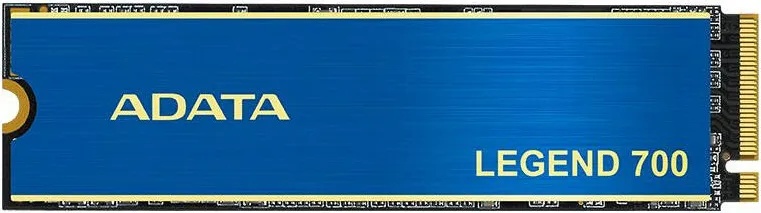

ADATA Legend 700 512GB M.2 (ALEG-700-512GCS)

A-Data LEGEND 700

 Enhance Your Creativity

The LEGEND 700 utilizes PCIe Gen3 x4 and NVMe 1.3 to deliver sustained read and write speeds of up to 2,000/1,600 MB per second. It's M. 2 2280 specification supports the latest Intel and AMD platforms, including desktop PCs and laptops.

Specifications:

Capacity

512GB

Form factor

M. 2 2280

NAND Flash

3D NAND

Dimensions (L x W x H)

80 x 22 x 3.13mm / 3.15 x 0.87 x 0.13inch (with heat sink)

80 x 22 x 2.15mm / 3.15 x 0.87 x 0.09inch (without heat sink)

Weight

9g / 0.32oz (with heat sink)

6.2g / 0.22oz (without heat sink)

Interface

PCIe Gen3 x4

Sequential Read (Max)

Up to 2,000MB/s*

Sequential Write (Max)

Up to 1,600MB/s*

4KB Random Read IOPS(Max)

Up to 180K*

4KB Random Write IOPS(Max)

Up to 280K*

Operating temperature

0°C - 70°C

Storage temperature

-40°C - 85°C

Shock resistance

1500G/0.5ms

MTBF

1,500, 000 hours

Terabytes Written (TBW)

320TB**
