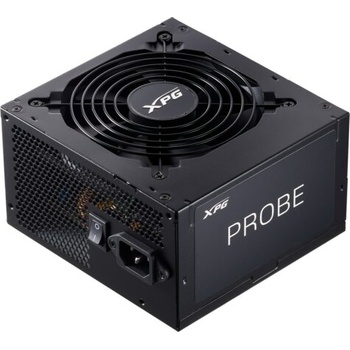

ADATA Probe 600W 80 PLUS Bronze (75261547)

PROBE
VIABLE, APPLIABLE, & RELIABLE
With up to 87% efficiency at 50% load and a 120mm low-noise fan featuring an intelligent curve, XPG PROBE is designed to deliver stable and reliable power to your system!

Enhanced Safety in Operation:
Unlike most Bronze power supply units, XPG PROBE is ATX v2.52 compliant, enhancing overall reliability and providing safer operation for your current and future hardware.

Intelligent Fan-Curve Design:
The 120mm low-noise sleeve-bearing fan, featuring an intelligent curve design, keeps the power supply cool without excessive noise, thus reducing power consumption for cooling and improving overall energy efficiency.

Long, Reliable Lifespan:
XPG PROBE comes with premium capacitors with a 105°C rating, offering greater reliability, premium efficiency, and a longer lifespan.

Specifications

Dimensions (L x W x H)
140 x 150 x 86mm

80 Plus Rating
BRONZE

ATX Version
ATX 2.52

Protections
OVP / OPP / SCP / UVP / OTP / SIP

Certification
CB, CE, FCC, TUV, cTUVus, BSMI, CCC, NOM, FCC IC, UKCA, EAC, RCM

PFC
> 0.99 @ Typical load

Input Voltage
100-240V, 47~63Hz

Input Current
9A - 10A

Input Frequency
47 - 63Hz

DC Output Voltage
+5V | +3.3V | +12V | -12V | +5Vsb

Total Output
700W: +5V: 17A, +3.3V:19A, +12V:54A, -12V:0.3A, +5Vsb:2.5A 600W: +5V: 17A, +3.3V:19A, +12V:46A, -12V:0.3A, +5Vsb:2.5A

Power Excursion
Total:700W +5V/+3.3V:110W, +12V:648W, -12V:3.6W, +5Vsb:12.5W Total:600W +5V/+3.3V:110W, +12V:552W, -12V:3.6W, +5Vsb:12.5W

Operating Temperature
0~40°C

Fan Size
120mm

Fan Bearing
Sleeve Bearing Fan

Fan Speed
2400 ± 10% RPM

MTBF
>100,000 hours @ 25°C

ATX 24 Pin Connector
1

EPS 8 (4+4) Pin Connector
2

Molex 4 Pin Connector
2

SATA Connector
5
