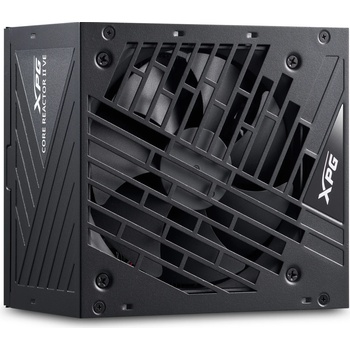

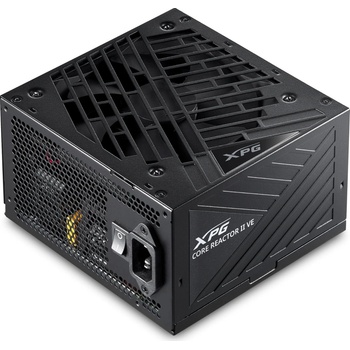

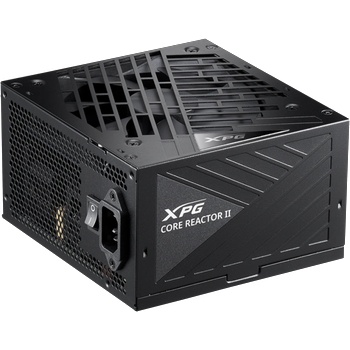

ADATA XPG Core Reactor II VE 750G 80 PLUS Gold (COREREACTORIIVE750G-BKCWU)
Препоръчани оферти (3)
ADATA XPG Core Reactor II VE 750G 80 PLUS Gold (COREREACTORIIVE750G-BKCWU)
Най-евтини оферти (7)
ADATA XPG Core Reactor II VE 750G 80 PLUS Gold (COREREACTORIIVE750G-BKCWU)
Описание на продукта
Параметри на продукта
Параметри на продукта
Описание на продукта
A-Data XPG Core Reactor II VE
ATX 3.1 Compatible
XPG CORE REACTOR II VE integrates seamlessly with ATX 3.1 standards, enhancing performance and reliability. With a dedicated 12V-2x6 connector, it ensures optimal compatibility with the latest graphics card requirements, delivering advanced power delivery and efficiency.
12V-2x6 Connector
The provided 12V-2x6 connector ensures direct and efficient power delivery to critical components, maximizing system stability and performance. By minimizing voltage drops and optimizing efficiency, this connector guarantees consistent and reliable power for your system's demanding needs.
DC-DC Circuit Design
XPG CORE REACTOR II VE’s DC-DC circuit design maximizes efficiency and reliability by converting power directly to the required output voltage. This enhances system stability, reduces heat generation, and prolongs hardware lifespan.
Low Ripple Noise Design
XPG CORE REACTOR II VE features a low ripple noise design, surpassing Intel's specifications with ripple levels below 60mV at +12V and below 40mV at +5V and +3.3V. This ensures stable power delivery, minimizes electrical interference, and enhances system performance, providing a seamless computing experience.
Specifications
Dimensions (L x W x H)
140 x 150 x 86mm
Cybenetics Rating
GOLD
80 Plus Rating
GOLD
ATX Version
Intel ATX 12V v3.1
Protections
OV P / OPP / SCP / OCP / UVP / OTP / NLO / SIP
Certification
C B / CE / FCC / TUV / cTUVus / BSMI / CCC NOM / FCC IC / UKCA / TUV / TUV S-Mark / cTUVus
PFC
0.99
Input Voltage
100-240V
In put Current
10A
Input Frequency
47Hz-63Hz
DC Output Voltage
+5V | +3.3V | +12V | -12V | +5Vsb
Total Output
+5V/+3.3V :22A, +12V:62.5A, -12V:0.3A, +5Vsb:3A
Power Excursion
1762W (*up to 235% of the PSU's rated power for 100μs)
Operating Temperature
40°C
F an Size
120mm FDB Fan
Fan Bearing
FDB (Fluid Dynamic Bearing)
Fan Speed
2400 RPM
MTBF
100K hours at full load
ATX 24 Pin Connector
1
EPS 8 Pin Connector
2
PCI-E 6+2 Pin Connector
3
Molex 4 Pin Connector
2
12V-2x6 (12+4) Connector (600W)
1
SATA Connector
6
