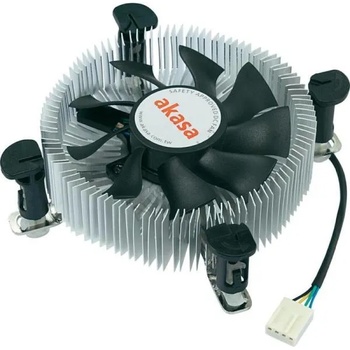

Akasa AK-CCE-7106HP

Features

Ultra compact and low noise cooler for Intel Core 2 Duo, Core i3 and Core i5 (73W) CPU’s. The low profile design with embedded S-Flow fan makes it a perfect solution for mini-ITX, HTPC and SFF systems.

Aluminium heatsink with full height copper core and quiet HDB bearing fan ensure high efficiency and long life. High engineered multi directional aluminium heatsink maximizes heat dissipation and PWM fan provides optimal CPU, motherboard and VRM cooling with minimal noise levels.

Intel approved pushpins ensure easy installation, reliable retention and maximum compatibility on both LGA775 and LGA1156 platforms without any mounting adjustment, pushpins will automatically slide into correct position. AK-CCE-7106HP is designed to work with CPU’s up to 73W but greater cooling efficiency can be attained with efficient case airflow. Pre-applied high performance thermal compound ensures clean and easy installation.

Hi-engineered aluminium heatsink with large full height copper core
Multi-directional fins for maximum system cooling
Embedded 8cm PWM fan with S-Flow blades and long life HDB bearing
Intel approved push pins provide maximum compatibility
 Dual mounting for Intel LGA775 and LGA1156 platforms
High performance thermal interface is pre-applied
Total height of less than 30mm

Specification

Socket typeIntel LGA775 , LGA1156Cooler dimension87.2 x 85.2 x 29.5 mmHeatsink materialAluminum with copper insertWeight205 gInstallationPush pinsFan dimension∅74 x 15 mmFan speed600 - 3000 RPM (PWM controlled)Max airflow33.50 CFM (56.7 m 3 /h)Max air pressure3.76 mmH2ONoise level18.9 - 31.9 dB(A)Current rating0.19 AVoltage rating12V DCBearing typeHDBFan life expectancy50,000 hoursFan connector4pin PWMProduct codeAK-CCE-7106HP
