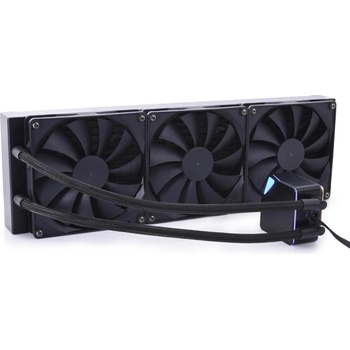

Alphacool Core Ocean T38 AIO 420mm ARGB (13054/1022343)



Alphacool Core Ocean T38 420mm





With the Core Ocean AiO, Alphacool presents an all-in-one solution that, thanks to its excellent price-performance ratio, enables entry into performance-oriented CPU water cooling. The difference to the Eisbaer CPU AiO is that the Ocean All-in-One is not expandable. Adding further components such as GPU coolers, radiators or expansion tanks is not intended here. But also not necessary! The choice of components and the design of the Core Ocean enable a long service life with low maintenance for water cooling of all common mainstream sockets from AMD and Intel.

Aluminium Radiator
Compared to Alphacool's full copper models, the T38 aluminium radiator has additional cooling channels. This technical design allows a significant increase in cooling capacity without restricting the water flow within the radiator. Due to the low height of 38mm, the radiator with single-sided fan assembly fits into the tightest case and enables high-performance water cooling of the CPU.

Core fan
The fan can be regulated from 0 to 2000 rpm via the 4-pin PWM connection. The cable is 40cm long. This allows the fan to be connected to the mainboard or a special controller without the need for additional adapter cables or extensions. At 2000 rpm, it provides an air flow of 92.3 CFM, together with a high static pressure of 2.53mm/H2O. This makes the fan perfect for mounting on radiators of a water cooling system.

Cooler & Pump
As with all Alphacool products, the radiator base is made of copper and is equipped with very fine cooling fins distributed over the entire base. A nozzle plate ensures an accelerated flow over the cooling fins, which increases the cooling performance. The water flow is optimised so that all areas of the cooler base are cooled evenly. The cooler is compatible with all common mainstream sockets from AMD and Intel. The built-in pump has a speed range of 2500 - 3500 RPM (+/- 10%) and can be controlled via PWM. The pump is connected to the mainboard or to an external controller via the existing 4-pin fan connector. This allows the speed range of the pump to be controlled and monitored.



Specs:

AMD Compatibility AM4 / AM5Intel Compatibility LGA 1150 / LGA 1200 / LGA 1700 / LGA 2066Technical data radiatorL x W x H 460 x 140 x 38mmMaterial cooling fins, channels & prechamber 3003 AluminiumMaterial outer housing & threads 3003 AluminiumFins per Inch 20Fan size 140mmFan slots 3 one-sided / 6 double-sidedColor blackTechnical data fansL x W x H 140 x 140 x 25mmBearing Type hydraulic BearingRated Voltage DC 12VOperating Voltage DC 7-14VStart-up Voltage 7VRated Current 0.26 (Max. 0.3) ARated Power 3.12 (Max. 3.6) WRated Speed 0 - 2000rpm/min (±10%)Max. Air Flow 92.3CFMMax. Static Pressure 2.53mm-H2ONoise level (rated voltage, mute room, distance 1m) 34.3 (Max. 36) dBAMTBF 50000hrs at 25°CSpeed Control Mode PWMConnection & control 4-pin PWM (cable 40cm)Auto-Restart yesTachometer Output yesColor blackTechnical data cooler & pumpL x W x H 70,2 x 70,2 x 46mmMaterial cooler bottom copperMaterial pump housing Synthetic material (ABS+PC)Fin structure cooler bottom 0,1 x 0,1mmMaterial pump bearing & shaft ceramicsStarting voltage > DC 6VRated power 7.1WNoise level 35DbRated Current 0.59A (±10% MAX)Speed 2500~3500 (±10% RPM)Power supply Digital aRGB 3-pin 5V (male & female, cable length 30cm)Number of aRGB LEDs 12Power supply pump 4-Pin JST  (30cm)Technical data tubesMaterial FEP, black with weave coverLength 400mm
