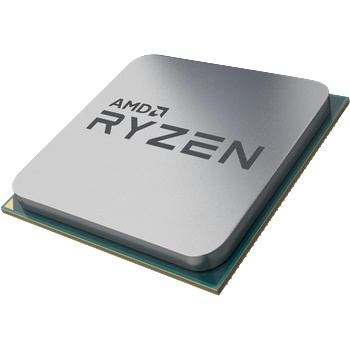

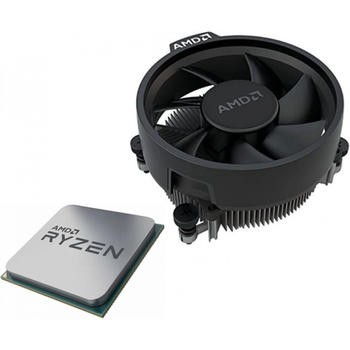

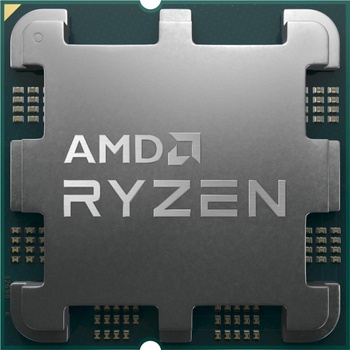

AMD Ryzen 5 PRO 8600G 6-Core 4.3GHz AM5 Tray (100-100001239)

General Specifications:

Name
AMD Ryzen 5 PRO 8600G
Family
Ryzen PRO
Series
Ryzen PRO 8000 Series
Form Factor
Desktops
AMD PRO Technologies
Yes
Regional Availability
Global
Former Codename
Phoenix
Processor Architecture
Zen 4
# of CPU Cores
6
Multithreading (SMT)
Yes
# of Threads
12
Max. Boost Clock
Up to 5 GHz
Base Clock
4.3 GHz
L2 Cache
6 MB
L3 Cache
16 MB
Default TDP
65W
AMD Configurable TDP (cTDP)
45-65W
Processor Technology for CPU Cores
TSMC 4nm FinFET
CPU Compute Die (CCD) Size
178mm2
Package Die Count
1
CPU Socket
AM5
CPU Boost Technology
Precision Boost 2
Instruction Set
x86-64
Supported Extensions
AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64
Max. Operating Temperature (Tjmax)
95°C
Launch Date
Q4 2024
*OS Support
RHEL x86 64-Bit , Ubuntu x86 64-Bit , Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition

Connectivity:

Native USB 4 (40Gbps)
2
Native USB 3.2 Gen 2 (10Gbps)
2
Native USB 2.0 (480Mbps)
1
PCI Express® Version
PCIe® 4.0
Native PCIe® Lanes (Total/Usable)
20 , 16
NVMe Support
Boot , RAID0 , RAID1
System Memory Type
DDR5
Memory Channels
2
Max. Memory
256 GB
System Memory Subtype
UDIMM
Max Memory Speed
2x1R
DDR5-5200
2x2R
DDR5-5200
4x1R
DDR5-3600
4x2R
DDR5-3600
ECC Support
Yes (Requires platform support)

Graphics Capabilities:

Graphics Model
AMD Radeon 760M
Graphics Core Count
8
Graphics Frequency
2800 MHz
DirectX® Version
12
DisplayPort Version
2.1
DisplayPort Extensions
Adaptive-Sync , HDR Metadata , UHBR10
DisplayPort Max Refresh Rates (SDR)
7680x4320 @ 60Hz , 3840x2160 @ 240Hz , 3440x1440 @ 360Hz , 2560x1440 @ 480Hz , 1920x1080 @ 600Hz
DisplayPort Max Refresh Rates (HDR)
7680x4320 @ 60Hz , 3840x2160 @ 240Hz , 3440x1440 @ 360Hz , 2560x1440 @ 480Hz , 1920x1080 @ 600Hz
HDMI® Version
2.1
HDCP Version Supported
2.3
USB Type-C® DisplayPort Alternate Mode
Yes
Multi-Monitor Support
Yes
Max Displays
4
AMD FreeSync
Yes
Wireless Display
Miracast
Max Video Encode Bandwidth (SDR)

1080p630 8bpc H. 264, 1440p373 8bpc H. 264, 2160p175 8bpc H. 264, 1080p630 8bpc H. 265, 1440p373 8bpc H. 265, 2160p175 8bpc H. 265, 4320p43 8bpc H. 265, 1080p864 8/10bpc AV1, 1440p513 8/10bpc AV1, 2160p240 8/10bpc AV1, 4320p60 8/10bpc AV1
Max Video Decode Bandwidth

1080p60 8bpc MPEG2, 1080p60 8bpc VC1, 1080p786 8/10bpc VP9, 2160p196 8/10bpc VP9, 4320p49 8/10bpc VP9, 1080p1200 8bpc H. 264, 2160p300 8bpc H. 264, 4320p75 8bpc H. 264, 1080p786 8/10bpc H. 265, 2160p196 8/10bpc H. 265, 4320p49 8/10bpc H. 265, 1080p960 8/10bpc AV1, 2160p240 8/10bpc AV1, 4320p60 8/10bpc AV1
AMD SmartAccess Memory
Available

AI Engine Capabilities:

AMD Ryzen AI
Available
NPU TOPS
Up to 16 TOPS

Manageability:

DASH support
Yes

Security:

AMD Memory Guard
Yes
AMD Secure Processor Support
Yes
Windows Secure Boot Support
Yes
UEFI Secure Boot Support
Yes
Windows Device Guard Support
Yes
Guest Mode Execution (GMET) Trap Support
Yes
Virtualization-Based Security (VBS) Support
Yes
Windows Secured-Core PC Support
Yes
Firmware TPM
Yes
AMD-V (SVM) Support
Yes
AMD-V Nested Paging (RVI) Support
Yes
AMD AVIC (Interrupt Virtualization) Support
Yes
AMD-Vi (I/O MMU Virtualization) Support
Yes
Second Level Address Translation (SLAT) Supported
Yes
Advanced Encryption Standard New Instructions (AES-NI)
Yes
AMD Enhanced Virus Protection (NX bit)
Yes
