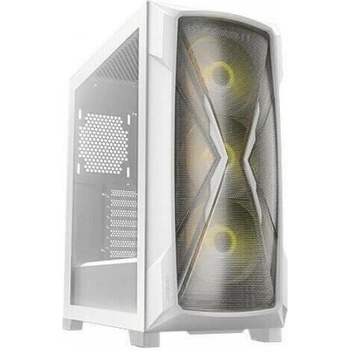

Antec DP505 White (0-761345-81076-0)

Antec DP505W

Mid-Tower E-ATX Gaming Case Outstanding Compatible Performance





Three addressable RGB fans Included

Pre-installed at the front for efficient airflow and customizable RGB lighting.





BUILT-I N DEVICES

ARGB & PWM
control Hub

The control hub supports up to 6 fans and 6 LED device.
Connect it to your motherboard for 16.8 million possible colors.





THOUGHT FUL DESIGN

Detailed Features







< p> SPECIFICATIONS

Case Specification DetailsDimensio ns 481 x 220 x 490mm (DWH)Form Factor Mid TowerMaterials Steel + PlasticMainboard Support E-ATX, ATX, Micro-ATX, ITXFront Access & Controls Power, LED control button, USB 3.0 x 2, TYPE-C 3.2 Gen 2 x 1, MIC x 1, HD-AUDIO x 1Side Panel 4mm Tempered GlassDrive Bays & Expansion SlotsCategory DetailsExpansio n Slots 73.5" / 2.5" Bays 2 / 22.5" Bays 2Fan SupportLocation Supported FansFront 120mm x 3 / 140mm x 3 / 185mm x 2Top 120mm x 3 / 140mm x 2Power Supply Shroud 120mm x 2Rear 120mm x 1Included Fans 120mm ARGB fans in front x 3Radiator SupportLocation Supported RadiatorsFront 120 / 140 / 240 / 280 / 360mmTop 120 / 140 / 240 / 280 / 360mmRear 120mmClearanceC omponent Maximum LengthMax GPU Length ≤ 375mmMax CPU Cooler Height ≤ 170mmMax PSU Length ≤ 205mm (with HDD) / ≤ 410mm (without HDD)Cable Routing Space ≤ 23mmAccessories Accessory IncludedFan & LED Control Hub YesGPU Holder YesCable Routing Grommets Yes, 8 pcsFixed Cable Ties Yes, 3 pcsCaptive Thumb Screws Yes (Side panels, GPU Holder, PSU Brace)Miscellaneous Feature DetailsDust Filter Top / BottomNet Weight 8.1 kgsGross Weight 9.1 kgs
