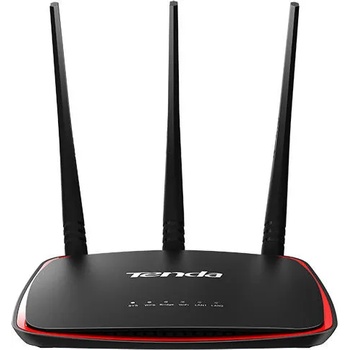

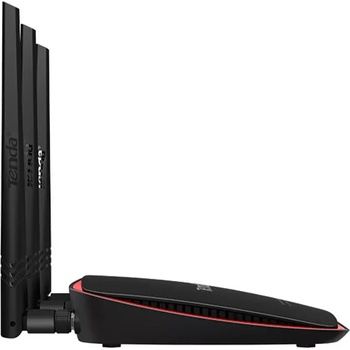

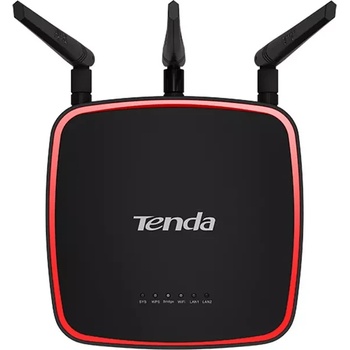

Tenda AP5

Tenda AP5

AP5 is designed to boost the range of your existing WiFi and creates a stronger signal for game consoles, printers, smart phone, tablet. Power over ethernet supported and wall-mount design make it flexible to deploy in any location. It has multi operation modes like Universal Repeater, Clien(Station), WISP, which can adapt various application scenarios. It is an ideal Wi-Fi booster for large houses, villas, eatery, large stores etc.

AP5 has a Range Extender button, which allows users to boost existing Wi-Fi Range simply by pressing the "Range Extender" button.

AP5 can be managed by the AP controller, like M3 from Tenda. When you deploy multi APs in networks, you can configure SSID(Wireless network name), Channel, Security Key, Output power etc option through M3 in a single location.

Specifications:

Hardware

Dimension

148*146.2*31.5mm

Deployment

Desktop/ Wall Mount

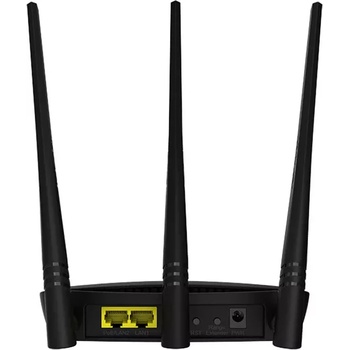

Interfaces

2*10/100Mbps Ethernet Port

Antennas Gain

3*5dBi Omini-directional detachable antenna

Reset/WPS Button

1

Range Extender Button

1

Power Consumption

3.7W

LED Indicator

SYS, WPS, Bridge, WiFi, LAN1, LAN2

Power Method

12V1A Passive PoE or DC Adapter

Reception Sensitivity

MCS0: -96dbm
MCS7: -72dbm

Wireless

Frequency Range

2.400 – 2.4835 GHz

Compliant Standards

IEEE 802.11b/g/n

Channel Bandwidth

20/40MHz

Maximum Wireless Rate

300Mbps

Max. No. of SSID

2 SSID

Software

Operating mode

AP/Universal Repeater/Client(Station)/WISP(Client Router)/Router

LAN Settings

Static IP
Dynamic IP

Enable/Disable Wireless Radio

Support

SSID Hidden

Support

Wireless Client isolation

Support

SSID Isolation

Support

Client Limitation For SSID

Support

Wireless Access Control

Support

Weak Signal Client Limitation

Support

WMM Capable

Support

Wireless Security

64/128 WEP, WPA-PSK, WPA2-PSK, WPA

VLAN Tagging for SSID

Support

DHCP Server

Support

VPN Pass-Through

Support

Dyndns

Support

Username Managerment

Support

System Logs

Support

Managed By Controller

M3 or Tenda Router with AP Controller feature

Others

Operation Temperature

-10℃ ~ 45℃

Storage temperature

-30℃ ~ 70℃

Operating Humidity

10%~90% non-condensing

Storage Humidity

10%~90% non-condensing

Default login IP

192.168. 0.254

Certification

FCC/CE/RoHS
