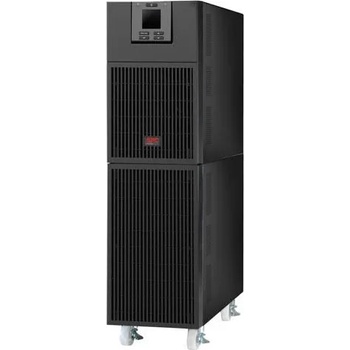

APC Easy SRV 6000VA (SRV6KI)

Output:

Output power capacity- 6.0 KWatts / 6.0 kVA
Max Configurable Power (Watts)- 6.0 KWatts / 6.0 kVA
Nominal Output Voltage- 230V
Output Voltage Distortion- Less than 2%
Output Frequency (sync to mains)- 50/60Hz +/- 3 Hz
Other Output Voltages- 220, 240
Load Crest Factor- 3 : 1
Topology- Double Conversion Online
Waveform type- Sine wave

Input:

Nominal Input Voltage- 230V
Input frequency- 40 - 70 Hz (auto sensing)
Input Connections- Hard Wire 3 wire (1PH+N+G)
Input voltage range for main operations- 160 - 275V
Input voltage adjustable range for mains operation- 100 - 275 (half load)V
Other Input Voltages- 220, 240

Communications & Management:

Interface Port(s)- RJ-45 10/100 Base-T , RJ-45 Serial , Smart-Slot , USB
Control panel- Multi-function LCD status and control console
Audible Alarm- Audible and visible alarms prioritized by severity
Emergency Power Off (EPO)- Yes
Available SmartSlot Interface Quantity- 1

Surge Protection and Filtering:
Surge energy rating- 480Joules

Physical:

Maximum Height- 174mm , 17.4CM
Maximum Width- 432mm , 43.2CM
Maximum Depth- 719mm , 71.94CM
Rack Height- 4U
Net Weight- 60.0KG
Shipping weight- 67.0KG
Shipping Height- 370mm , 37.0CM
Shipping Width- 610mm , 61.0CM
Shipping Depth- 960mm , 96.0CM
Color- Black
Units per Pallet- 6.0

Environmental:

Operating Temperature- 0 - 40 C
Operating Relative Humidity- 0 - 95% non-condensing %
Operating Elevation- 0-3000meters
Storage Temperature- -15 - 45 C
Storage Relative Humidity- 0 - 95% non-condensing %
Storage Elevation- 0-15000meters
Audible noise at 1 meter from surface of unit- 55.0dBA
Online thermal dissipation- 1300.0BTU/hr
Protection Class- IP 20
