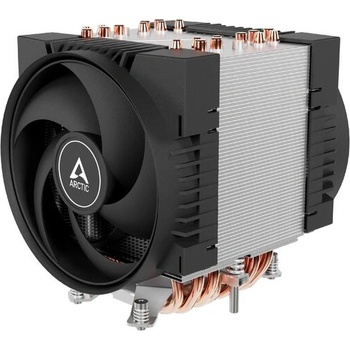

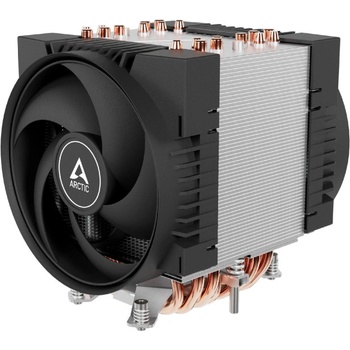

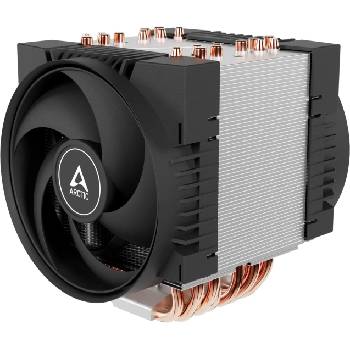

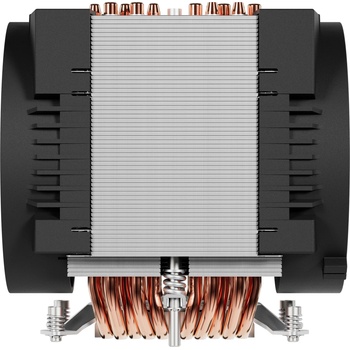

ARCTIC Freezer 4U SP5 (ACFRE00158A)

Server Cooler specifically designed for AMD SP5:
The Freezer 4U-SP5 is specially designed for Socket SP5 and supported EPYC processors. With a maximum power consumption of only 6.96 W, the Freezer 4U-SP5 cools even the most powerful AMD processors with 128 cores and 360 W TDP extremely efficiently.

Compact Design and Dual Socket Compatibility:
With an optimised installation height of only 145 mm, it fits into both classic 4U server racks and most consumer 4U cases available on the market. The Freezer 4U features a compact design with dimensions of just 147 x 124 mm. This also makes it suitable for dual-socket motherboards. To adjust the airflow direction if required, the fans can be easily swapped over.

Powerful Fans in Push-Pull Configuration:
The installed PWM fans benefit from all the advantages of the award-winning P series. Designed for static pressure, the fans are ideal for the Freezer 4U-SP5's high fin density and provide efficient heat dissipation in push-pull mode, even in power-hungry applications. Especially office workstations benefit from the quiet fans. The dual configuration also allows for inherent redundancy and protects the system from total shutdown caused by heat.

Designed for Continuous Operation:
Both fans of the Freezer 4U-SP5 are equipped with dual ball bearings, which allows for 24/7 continuous operation without the slightest compromise in performance. This type of bearing is much more resistant to contamination and wear caused by high temperatures than conventional sleeve bearings or Fluid-Dynamic bearings and is therefore the perfect choice if you want to ensure fault-free continuous operation.

Specifications:

General Specifications
Thermal Compound
ARCTIC MX-6 0.8 g Syringe incl.
Operating Ambient Temperature
0—40 °C
Dimensions
124 (L) x 147 (W) x 145 (H) mm
Weight
1512 g

Compatibillity
AMD
SP5
Server Rack Unit
4HE & up

Heatsink Specifications
Heat Pipe
Direct Touch, Ø 6 mm x 10
Number of Fins
62
Fin Material
Aluminium

Fan Specifications
General
2x 120 mm PWM Fans
Fan Speed
300–3300 rpm, PWM Controlled
Connector
4-Pin Plug
Cable Length
200 mm
Bearing
Dual Ball Bearing
Noise Level
45.3 dBA
Air Flow
81.04 cfm | 137.69 m³/h
Static Pressure
4.35 mmH2O
Current | Voltage
0.29 A | 12 V DC
Startup Voltage
3.1 V DC
