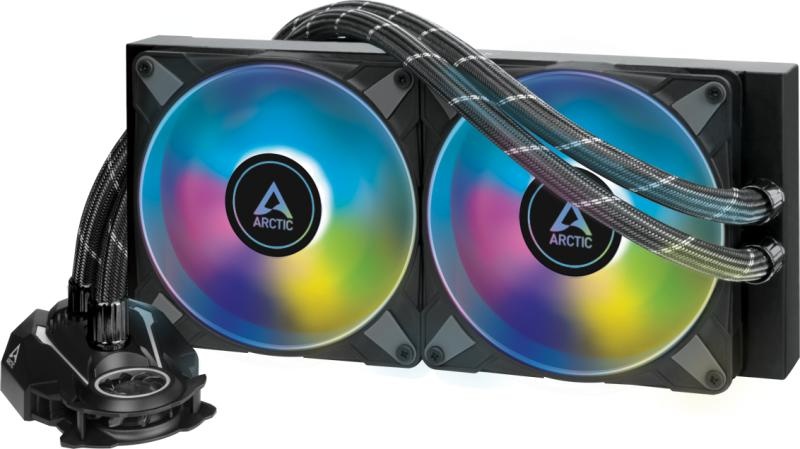

ARCTIC Freezer II 280 A-RGB (ACFRE00106A)

LIGHT UP YOUR BUILD

The Liquid Freezer II A-RGB combines the efficient, award-winning PWM pump of the Liquid Freezer II with new A-RGB fans optimised for static pressure. This gives you a whole new aesthetic with extremely low noise and equally low temperatures.

EFFICIENT, IN-HOUSE DEVELOPED PUMP

Unlike many of our competitors, we went to great lengths to develop the water pump. The result is greatly reduced humming and higher efficiency. Like the other components, the pump is also PWM controlled. This leads to a significantly lower noise level at low and typical loads, but also to much lower power consumption, with a maximum of of 0.8 W at no load, 2.3 W under normal load and a maximum of 6.78 W under full load for the entire AiO, without illumination.

PREMIUM CLASS RADIATOR

Unlike most other all-in-one liquid cooling manufacturers, we rely on 38 mm thick radiators with a high fin density. This means that a larger amount of water can be used in the circuit, and the cooling surface can be significantly increased.

Water has a much higher heat capacity than aluminum or copper. This leads to a slower and up to 5 ° C lower temperature increase in the temporary turbo mode of modern CPUs.

General data

Compatibility

Intel Socket: 1700, 1200, 115X, 2011-3*, 2066* *Square ILM

AMD Socket: AM5, AM4

Ram Clearance: unlimited

Operating Ambient Temperature: 0 - 40 °C

Connector: Cooler: 4 pin PWM Connector

LEDs: 4-pin 5V-Di-Gnd Connector

Pump/Cold Plate

VRM Fan: 40 mm, 1000 – 3000 RPM (PWM controlled)

Pump: 800 – 2000 RPM (PWM controlled)

Power Consumption: 0,5 W – 2,7 W (Pump + VRM Fan)

Cold Plate: Copper, Micro-Skived-Fins

Thermal Paste: MX-5 (0,8 g)

Fan

Fan: 2x ARCTIC P14 PWM A-RGB – 140 mm Fan

Fan Speed: 200 – 1 900 RPM

Fan Bearing: Fluid Dynamic Bearing

Noise Level: 0.3 Sone

Voltage / Current: 0.17 A / 12 V DC

Airflow: 68.9 CFM

Static Pressure: 2 mm H2O

Connector: 4 pin Connector

RGB

LEDs: 12 A-RGB LEDs per Fan

Connector: 3 pin 5 V-DI-Gnd

Current/Voltage: 0.4 A/ 5 V

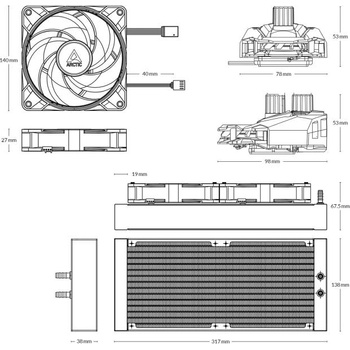

Size & Weight

Radiator: 317 x 138 x 38 mm

Pump (w/o tubes) 98 mm x 78 mm x 53 mm

Tube Diameter: Outer: 12,4 mm // Inner: 6,0 mm

Tube Length: 450 mm

Weight: 1600 g (Fan, Radiator, Pump, Tubes)
