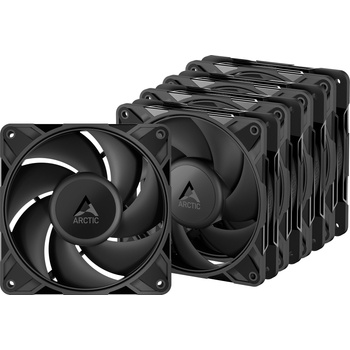

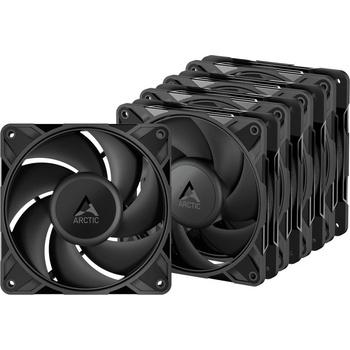

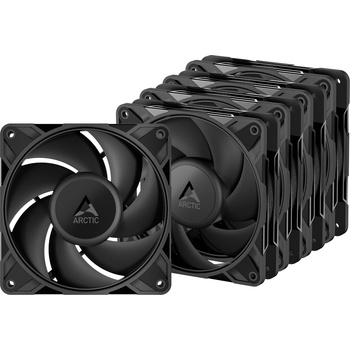

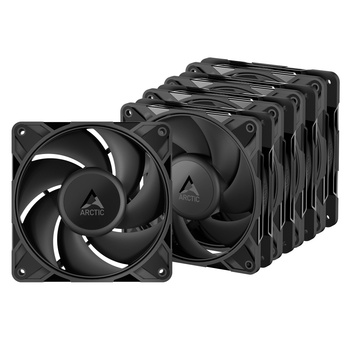

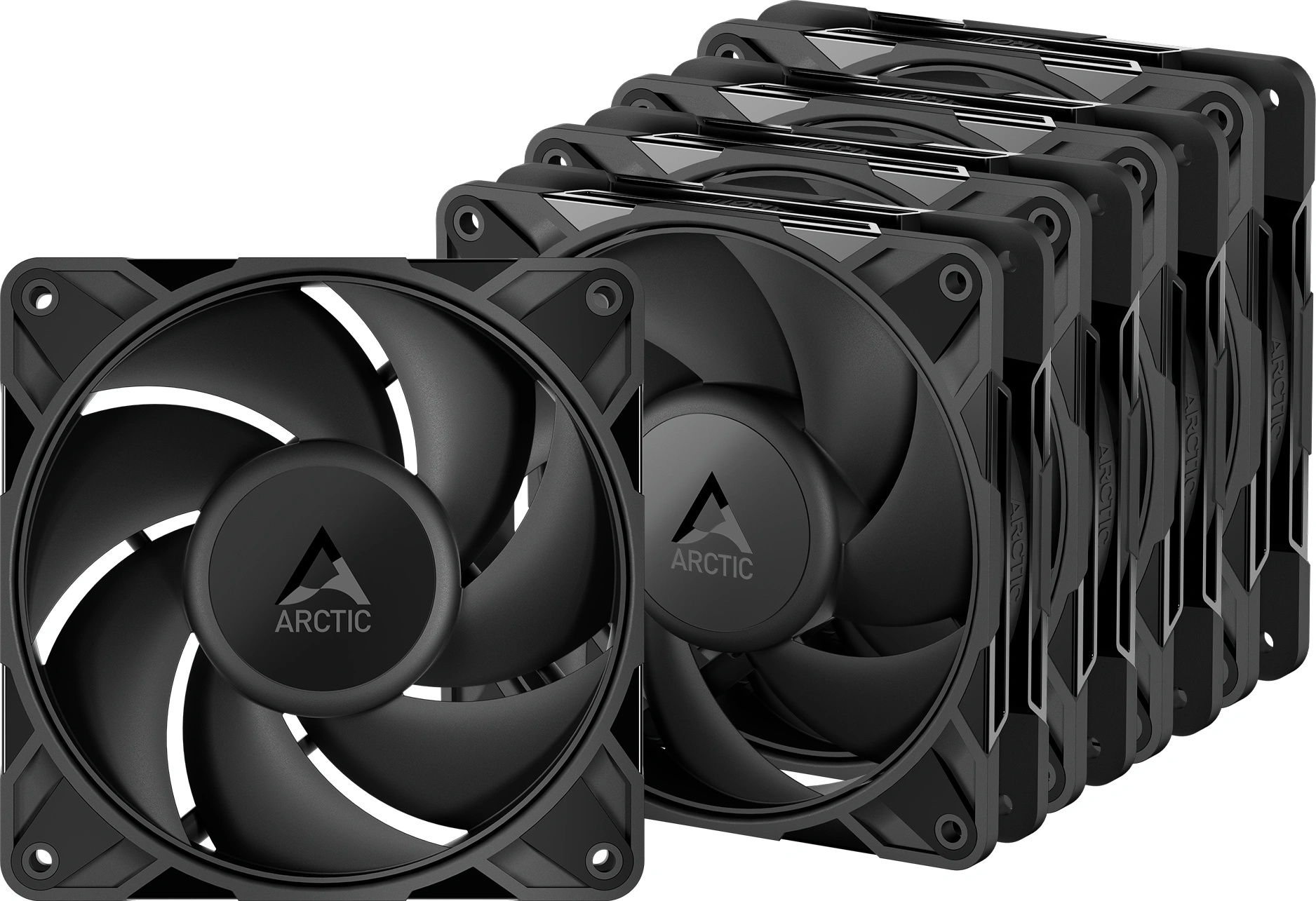

ARCTIC P12 Pro PST Value Pack (ACFAN00307A)

Efficient Performance at High Air Resistance:
Thanks to high static pressure, the Pro fans move air effectively through tight spaces. This makes them ideal for radiators, perforated panels, and mesh filters.

Maximum Performance, Redefined:
Revised fan blade design for an optimal balance of performance and smooth operation.

Optimized Bearing-Shaft Design (FDB):
A hydrodynamic bearing combined with an extended shaft ensures quieter operation by improving pressure distribution and minimizing vibrations.

Automated Balancing:
An automated measuring and balancing process ensures exceptional precision and smooth performance by applying the balancing compound with pinpoint accuracy.

Specifications

600–3000 rpm, PWM controlled
0 rpm below 5 % PWM

Airflow
77 cfm | 131 m³/h

Static Pressure
6.9 mmH2O

Fan Bearing
Fluid Dynamic Bearing

Typical Voltage
12 V DC

Start Up Voltage
3.3 V DC

Current
0.33 A

Cable Length
400 mm + 80 mm Daisy-Chain Cable

Connector
4-Pin Fan Plug + 4-Pin Socket
