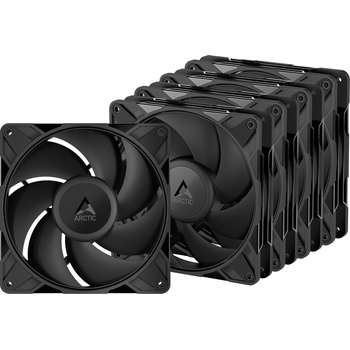

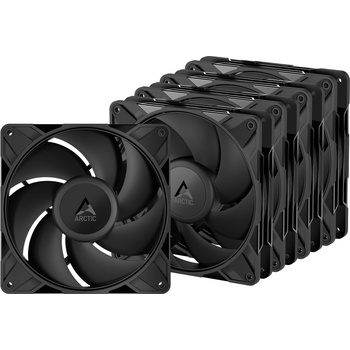

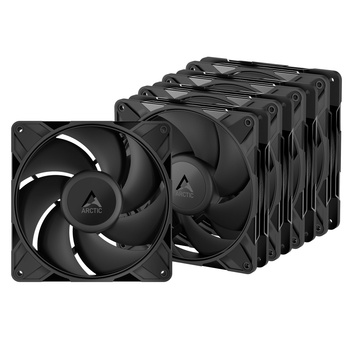

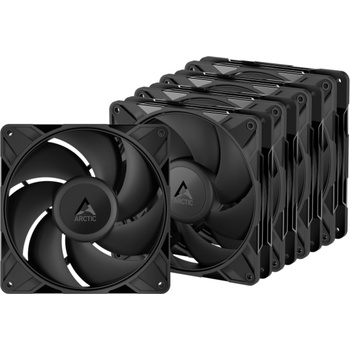

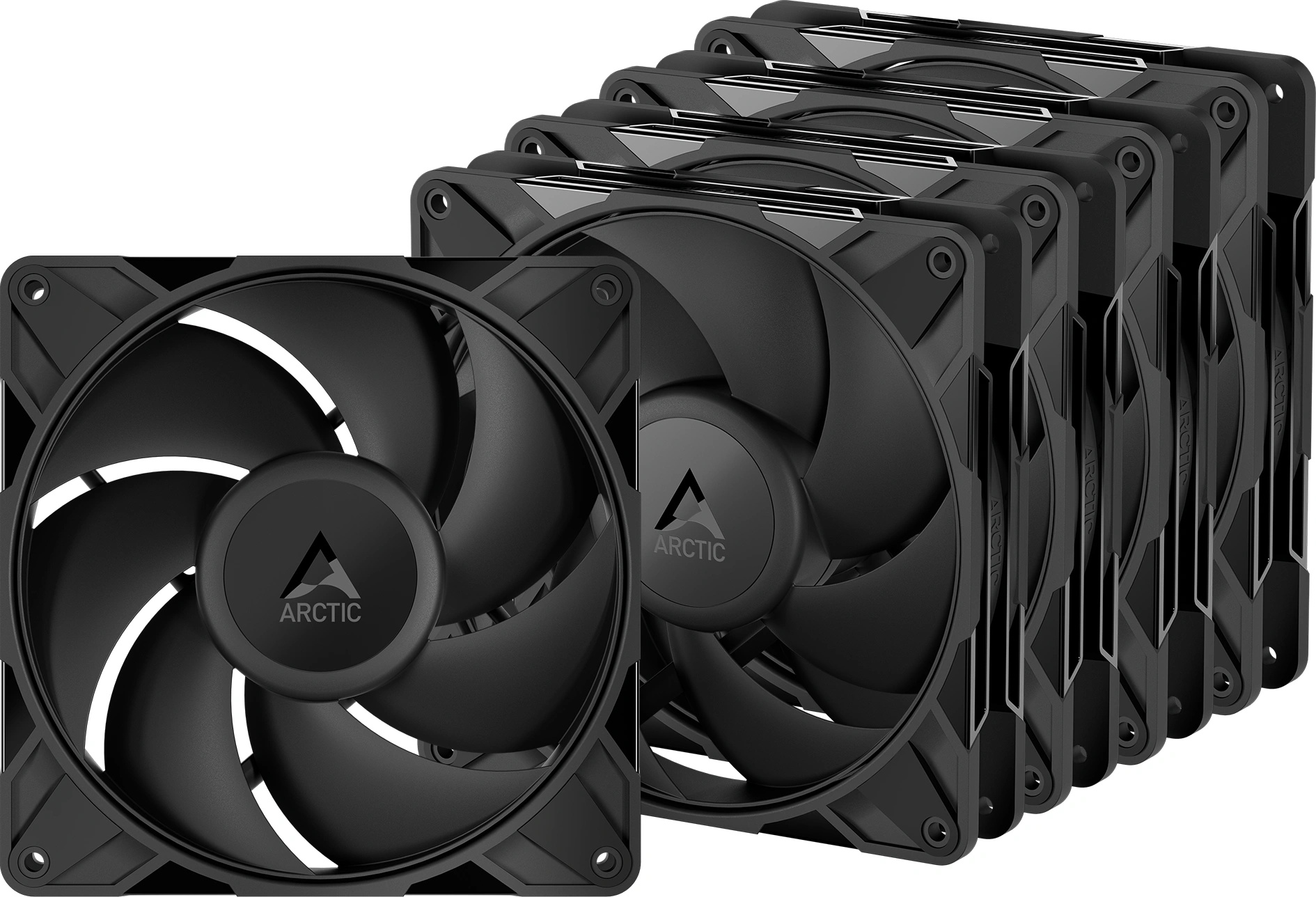

ARCTIC P14 Pro PST CO 140mm PWM 5-Pack (ACFAN00319A)

Efficient Performance at High Air Resistance

Thanks to high static pressure, the Pro fans move air effectively through tight spaces. This makes them ideal for radiators, perforated panels, and mesh filters.



Optimized Bearing-Shaft Design (FDB)

A hydrodynamic bearing combined with an extended shaft ensures quieter operation by improving pressure distribution and minimizing vibrations.

Maximum Performance, Redefined

Revised fan blade design for an optimal balance of performance and smooth operation.

SOTA Microcontroller

Reduces motor noise, compensates for load fluctuations, and protects against inrush currents and reverse polarity.

More Power – Less Noise

The fan delivers more performance at low speeds with higher airflow and static pressure at just 25 dB(A) – ideal for quiet, powerful cooling.

Minimum Gap Dimensions for Maximum Efficiency

Enables higher static pressure and maximum airflow efficiency.





CategorySpecificationOp erating Ambient Temperature 0–40 °CDimensions 140 (L) × 140 (W) × 27 (H) mmNet Weight 242 gFan Speed 400–2500 rpm, PWM controlled; 0 rpm below 5% PWMAirflow 110 cfm | 186 m³/hStatic Pressure 5.2 mmH₂OFan Bearing Fluid Dynamic BearingTypical Voltage 12 V DCStart Up Voltage 5 V DCCurrent 0.35 ACable Length 400 mm + 80 mm Daisy-Chain CableConnector 4-Pin Fan Plug + 4-Pin Socket
