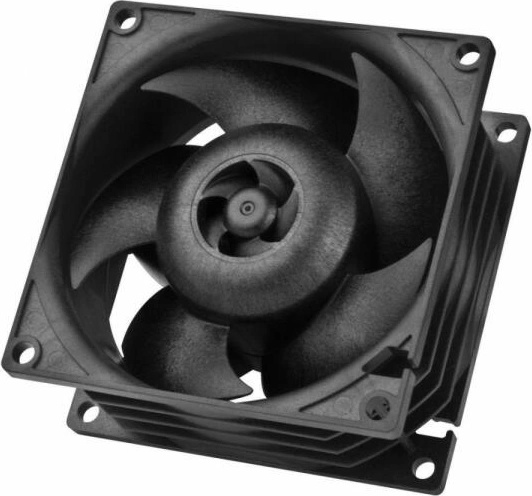

ARCTIC S8038-10K Black PWM 80mm (ACFAN00279A)

New Standards in Energy Efficiency:
For the same performance, the S8038 consumes 25 % less than the next best competitor, improving the energy efficiency of your server. The reduction of the power consumption is the result of months of motor optimization by ARCTIC engineers with the aim to increase the IT equipment efficiency.

Active Cooling for Extended Motor Lifespan:
A 10 °C lower motor temperature roughly doubles the service life. The motor of the S8038-10K is not only particularly efficient, but is also actively cooled by an additional impeller in the fan hub. This advance not only leads to improved operating efficiency, but also to considerable cost savings in the long term. The scope of delivery includes a sticker for the motor hub, which ensures a long service life even in particularly dusty environments.

High Airflow and Static Pressure:
Heat sinks and radiators benefit from fans with high static pressure. The S8038-10K has a static pressure of 25 mm/H2O, which enables it to push air, even through narrow cooling fins. At the same time, it achieves a maximum airflow of 118,93 m³/h allowing it to quickly dissipate heat from enclosures. These properties make it the ideal choice for a wide range of applications.

Specifications

Dimensions:
80 (L) x 80 (W) x 38 (H) mm

Weight:
151 g

Flammability UL 94:
V-0

Operating Ambient Temperature:
-10°C~70°C

Speed:
500–10000 rpm, PWM controlled

Static Pressure:
51 mmH2O

Airflow:
102 cfm | 173.30 m³/h

Bearing:
Dual Ball Bearing

Cable Length:
300 mm, Black

Connector:
2510 4-Pin Fan-Connector

Current | Voltage:
1.3 A | 12.0 V DC

Start up Voltage:
5.8 V DC
