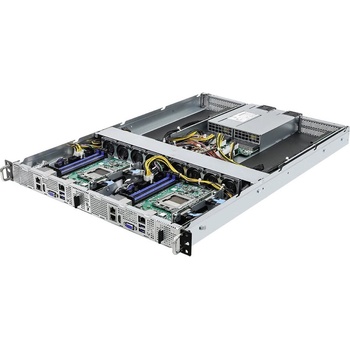

ASRock 1U2N2G-AM5/2T

ASRock Rack 1U2N2G-AM5/2T

• 1U chassis with 2 nodes, 1+1 80-PLUS Platinum, 1600W CRPS
• Single Socket AM5 (LGA 1718), supports AMD EPYC 4005/4004 and AMD Ryzen 9000/8000/7000 Series Processors
• 4 DIMM slots (2DPC), supports DDR5 ECC/non-ECC UDIMM
• 1 FH dual-slot PCIe5.0 x16 per node
• Supports 1 M. 2 (PCIe4.0 x4) per node
• 2 RJ45 (10GbE) by Broadcom BCM57416 per node
• Remote management (IPMI)



Specificatio ns

 SystemForm Factor 1U RackmountDimensions 650 x 438 x 43.5 mm (25.6'' x 17.2'' x 1.7'')Support Motherboard AM5D4ID-2T/BCM Front PanelButtons UID w/LED, Power w/LEDLEDs System FailI/O Ports 2 RJ45 (10GbE) by Broadcom BCM57416, 2 Type-A (USB3.2 Gen1), 1 DB15 (VGA), 1 HDMIIPMI LAN 1 dedicated IPMI External Drive Bay / StorageInternal Side 1 M-key (PCIe4.0 x4), supports 2280 form factor [CPU] Power SupplyType 1+1 CRPSOutput Watts 1000W @100-127Vac input / 1600W @200-240Vac inputEfficiency 80-PLUS PlatinumAC Input Low-line: 100-127Vac, 60/50Hz; High-line: 200-240Vac, 60/50Hz System FanFan 8 PWM Hot-swap 40x56 mm fans Processor SystemCPU Supports AMD EPYC 4005/4004 and AMD Ryzen 9000/8000/7000 Series ProcessorsSocket Single Socket AM5 (LGA 1718)Thermal Design Power Up to 120WChipset KNOLL3 X300 System MemorySupported DIMM Quantity 4 DIMM slots (2DPC)Supported Type DDR5 288-pin ECC/non-ECC UDIMMMax. Capacity per DIMM 48GBMax. DIMM Frequency 5600 MHz (1DPC); 3600 MHz (2DPC)Voltage 1.1V PCIe Expansion SlotsPCIe x 16 1 FHFL dual-slot PCIe5.0 x16 or 2 FHFL single-slot PCIe5.0 x8

Support passive-cooling GPU card dimensions (L x W x H):
266.7 x 111.15 x 39.04 mm (GPU power connector on the east edge)

* Please contact ASRock Rack for suggested active-cooling GPU card dimensions or further details.  EthernetAdditional GbE Controller Broadcom BCM57416: 2 RJ45 (10GbE) Server ManagementBMC Controller ASPEED AST2600IPMI Dedicated GLAN 1 Realtek RTL8211F for dedicated management GLAN GraphicsControlle r ASPEED AST2600:
1 DB15 (VGA)
AMD Processors with Graphics:
1 HDMI System BIOSBIOS Type AMI UEFI BIOS; 256Mb (32MB) SPI Flash ROMBIOS Features Plug and Play, ACPI 5.1 compliance wake up events, SMBIOS 2.3 Hardware MonitorTemperature CPU, DDR, MB, Card SideFan Fan Tachometer, Multi-Speed Control, CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)Voltage 3VSB, 5VSB, VCPU, VCCM, APU VDDP, 1.05V_PROM_S5, 2.5V_PROM, 1.05V_PROM_RUN, BAT, 3V, 5V, 12V Supported OSOS Microsoft® Windows:
Windows® 10 (64 bit)
Windows® 11 (64 bit)

Linux:
UBuntu 22.04. 2 (64 bit)

* On the Windows® system, Raid mode supports UEFI Boot only.
* The Linux system doesn't support Raid Mode.
