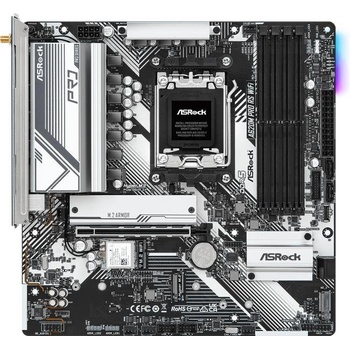

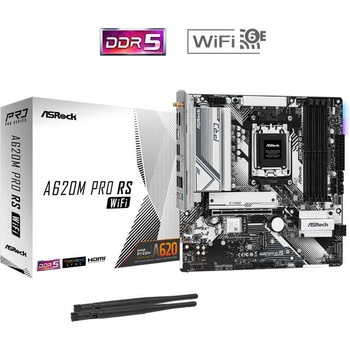

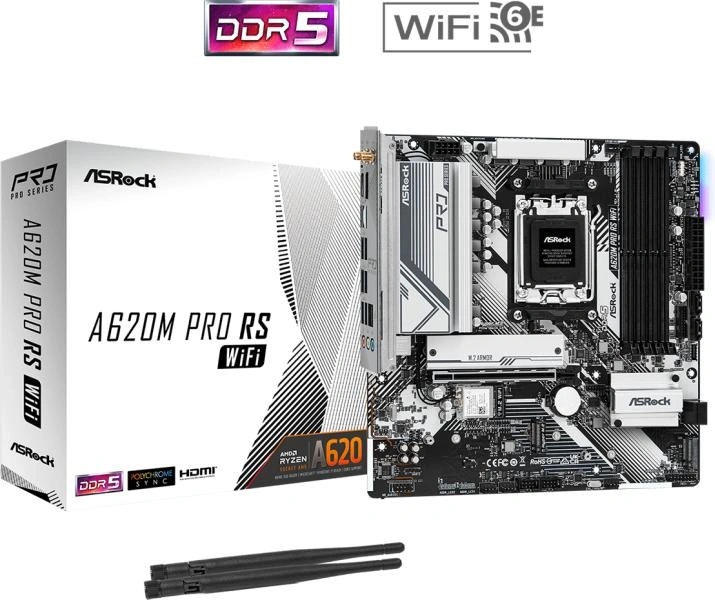

ASRock A620M Pro RS WIFI

DescriptionA620M Pro RS WiFi

• Supports AMD Socket AM5 Ryzen 7000 series processors
• 6+2+1 Power Phase, Dr. MOS, 120W CPU Ready
• DDR5 6000+MHz (OC)
• 1 PCIe 4.0 x16
• Graphics outputs: HDMI, DisplayPort
• Realtek ALC897 7.1 channel HD audio codec
• Nahimic Audio
• 4 SATA3, 2 Hyper M. 2 (PCIe Gen4x4)
• 1 M. 2 (PCIe Gen3x2)
• 2 USB 3.2 Gen1 Type-C (1 rear, 1 front)
• 5 USB 3.2 Gen1 Type-A (3 rear, 2 front)
• Realtek Gigabit LAN
• Wi-Fi 802.11ax 6E + Bluetooth
• Supports ASRock Auto Driver Installer
• BIOS flashback

Optimized VRM Design Durable components and smooth power transfer to the processor translate into increased performance for gamers. Reinforced Steel Slot [PCIe 4.0 Revision] Reinforced steel slot along with next generation PCI Express 4.0 standard. List of benefits:

• More soldering points
• Stronger latch
• It ensures the stability of signal transmission
• It guarantees stable support for even the heaviest graphics cards

Nahimic Audio Whether you use headphones, handsfree, external or internal speakers via USB, Wi-Fi, analog or HDMI output, Nahimic Audio offers the best sound experience, vivid and full of details. Improved Communication Quality Powerful algorithms for the best noise-free conversation, ensure a constant voice level regardless of the distance from the microphone. The Nahimic audio engine dynamically cleans the sound, removes noise and reduces voice variability. The result is better understanding and less fatigue.

• Static Damping
• Echo elimination
• Side Sound Reduction
• Voice stabilization

sound tracker The Sound Tracker is a visual indicator that indicates the directions from which dominant sounds are coming. Every sound is properly positioned on the 360° radar for complete gaming immersion. Works on all devices! Enjoy vivid and high-quality surround sound on all your favorite audio devices: Jack, USB, Bluetooth, HDMI, S/PDIF. Nahimic is compatible with all your favorite audio tools and gives you the best sound with all of them. Nahimic measures and refines to optimize our technology and deliver the best experience. POLYCHROME RGB In addition to the built-in RGB lighting, the board also has integrated regular and addressable RGB headers that allow you to connect compatible LED devices such as LED strips, CPU fans, fans, cases, etc. Users can synchronize RGB LED devices with Polychrome RGB Sync certified accessories, to create your own unique lighting style. PCIe 4.0 High Speed M. 2 solution This motherboard is ready to accept multiple M. 2 devices, including support for PCI Express 4.0 M. 2 SSDs, ready to run at twice the speed of the previous 3rd generation, delivering blazing fast data transfer. Wi-Fi 6E 802.11ax wireless network WiFi 6E technology extends to the 6GHz frequency, providing more WiFi connectivity and faster Internet connectivity. In addition to higher bandwidths, WiFi 6E also means lower latency and services equivalent to 5G networks. M. 2 Key-E Module Cap The SMA cable can easily come loose, this is unacceptable for any user. We fixed this problem with a small Key-E module cap. Front USB 3.2 Gen1 Type-C The front USB 3.2 Gen1 Type-C header enables data transfer speeds up to 5 Gbps, moreover, the next-generation reversible USB design is available on the front panel of the computer case. EZ Settings Automatic Driver Installation You don't have to worry about missing drivers! The ASRock board comes with a pre-installed LAN driver, offering you a convenient option to install the rest of the drivers.

• Step 1: Install Auto Driver Installer
• Step 2: Update your drivers
• Step 3: Done!

Flashback Update BIOS with a simple click. Users can easily flash the latest BIOS with a USB flash drive and power adapter. No CPU, RAM or other components are needed. Factory Installed I/O Port Shield ASRock strives to offer only cutting-edge technology with the most user-friendly design. The pre-installed I/O port cover ensures that the motherboard is precisely installed in the case, prevents any interference and speeds up the assembly process.
Model:A620M PRO RS WIFICPU socket:Socket AM5Processor family:AMD RyzenIntegrated CPU:NoChipset manufacturer:AMDChipset type:AMD A620Memory type:DDR5Number of DDR5 slots:4Memory bus frequency:6000 MHzMax memory size:128 GBExpansion slots:1 x PCIe 4.0 x 16
1 x M. 2Max. number of SATA devices:4RAID:YesDetailed data on disk/drive interfaces:CPU:

• 1 x Hyper M. 2 slot (M2_1, Key M), supports 2260/2280 mode PCIe Gen4x4 (64Gbps)*
• 1 x Hyper M. 2 slot (M2_2, Key M), supports 2260/2280 mode PCIe Gen4x4 (64Gbps)*

Chipset:

• 1 x M. 2 slot (M2_3, Key M), supports 2260/2280 mode PCIe Gen3x2 (16Gbps)*
• 4 SATA3 6.0 Gbps connectors

*NVMe SSD boot supportGraphics:AMD RDNA 2 integr...
