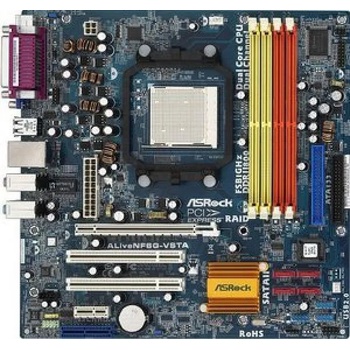

ASRock ALIVENF6G-VSTA

ALiveNF6G-VSTA

Socket AM2 for AMD Athlon™ 64FX / 64X2 / 64 and Sempron processors
NVIDIA® GeForce 6100 / nForce 430 or GeForce 6150SE / nForce 430 Chipsets

AMD LIVE!™ Ready
Supports Dual Channel DDRII800/667/533 with 4 DIMM slots, maximum capacity up to 8GB

ASRock AM2 Boost: ASRock Patented Technology to boost memory performance up to 12. 5%

Integrated NVIDIA® GeForce6-class graphics DX9. 0 VGA, Pixel Shader 3. 0, Max. shared memory 256MB
1 x PCI Express x 16 slot

Untied Overclocking : During Overclocking, FSB enjoys better margin due to fixed PCIE/ PCI Buses

Hybrid Booster - ASRock Safe Overclocking Technology

4 x Serial ATAII 3. 0 Gb/s, support RAID (RAID 0, RAID 1, RAID 0+1, RAID 5, JBOD), NCQ, and "Hot Plug" functions

HDMI_SPDIF header, providing SPDIF audio output to HDMI VGA card, allows the system to connect HDMI Digital TV/projector/LCD devices.

7. 1 CH Windows® Vista™ Premium Level HD Audio (ALC888 Audio Codec), 10/100 Ethernet LAN
Windows® Vista™ Premium Logo Ready
HD 8CH I/O: 4 ready-to-use USB ports, HD 7. 1 channel audio jacks


General
CPU - Socket AM2 for AMD Athlon™ 64FX / 64X2 / 64 and Sempron processors
- AMD LIVE!™ Ready
- Supports AMD's Cool 'n' Quiet Technology
- FSB 1000 MHz (2. 0 GT/s)
- Supports Untied Overclocking Technology
- Supports Hyper-Transport Technology
Chipset - NVIDIA® GeForce 6100 / nForce 430 or GeForce 6150SE / nForce 430
Memory - Dual Channel DDRII memory technology
- 4 x DDRII DIMM slots
- Supports DDRII800/667/533
- Max. capacity: 8GB*

*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® XP and Windows® Vista™. For Windows® XP 64-bit and Windows® Vista™ 64-bit with 64-bit CPU, there is no such limitation.

BIOS - 4Mb AMI BIOS
- AMI Legal BIOS
- Supports "Plug and Play"
- ACPI 1. 1 Compliance Wake Up Events
- Supports jumperfree
- SMBIOS 2. 3. 1 Support
Audio, Video and Networking
Graphics - Integrated NVIDIA® GeForce6-class graphics
- DX9. 0 VGA, Pixel Shader 3. 0
- Max. shared memory 256MB
Audio - 7. 1 CH Windows® Vista™ Premium Level HD Audio (ALC888 Audio Codec)
LAN - Realtek PHY RTL8201CL
- Speed: 10/100 Ethernet
- Supports Wake-On-LAN
Expansion / Connectivity
Slots - 2 x PCI slots
- 1 x PCI Express x16 slot
- 1 x PCI Express x1 slot
- 1 x HDMR slot
Connector - 4 x Serial ATAII 3. 0 Gb/s connectors, support RAID (RAID 0, RAID 1, RAID 0+1, RAID 5, JBOD), NCQ, and "Hot Plug" functions
- 1 x ATA133 IDE connector (supports 2 x IDE devices)
- 1 x Floppy connector
- 1 x IR header
- 1 x Game header
- 1 x COM Port header
- 1 x HDMI_SPDIF header
- CPU/Chassis FAN connector
- 20 pin ATX power connector
- 4 pin 12V power connector
- CD in header
- Front panel audio connector
- 3 x USB 2. 0 headers (support 6 USB 2. 0 ports)
Rear Panel I/O HD 8CH I/O
- 1 x PS/2 Mouse Port
- 1 x PS/2 Keyboard Port
- 1 x VGA Port
- 1 x Parallel Port (ECP/EPP Support)
- 4 x Ready-to-Use USB 2. 0 Ports
- 1 x RJ-45 Port
- HD Audio Jack: Side Speaker / Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone
Other Features / Miscellaneous
Hybrid Booster - CPU Frequency Stepless Control
- ASRock U-COP
- Boot Failure Guard (B. F. G. )
- ASRock AM2 Boost: ASRock Patented Technology to boost memory performance up to 12. 5%
Support CD - Drivers, Utilities, AntiVirus Software (Trial Version)
Accessories - Quick Installation Guide, Support CD, I/O Shield
- Floppy/ATA 133 cables
- 1 x SATA data cable (optional)
- 1 x SATA 1 to 1 power cable (optional)
- 1 x COM port bracket
- 1 x HDMI_SPDIF cable (optional)
Hardware Monitor - CPU Internal Temperature Sensing
- CPU Ambient Temperature Sensing
- Chassis Temperature Sensing
- CPU Fan Tachometer
- Chassis Fan Tachometer
- CPU Quiet Fan
- Voltage Monitoring: +12V, +5V, +3. 3V, Vcore
Form Factor - Micro ATX Form Factor: 9. 6-in x 9. 6-in, 24. 4 cm x 24. 4 cm
OS - Microsoft® Windows® 2000 / XP / XP Media Center / XP 64-bit / Vista™ / Vista™ 64-bit compliant
Certifications - FCC, CE, WHQL
