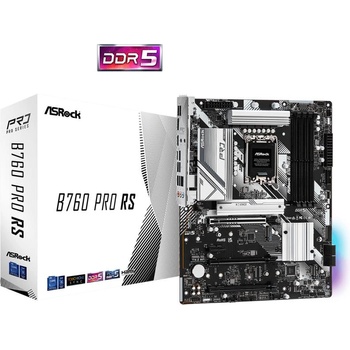

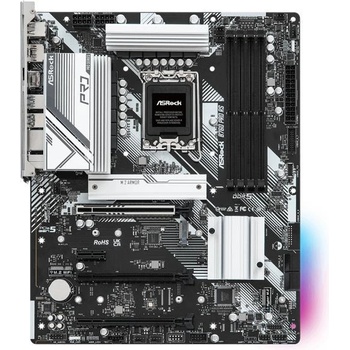

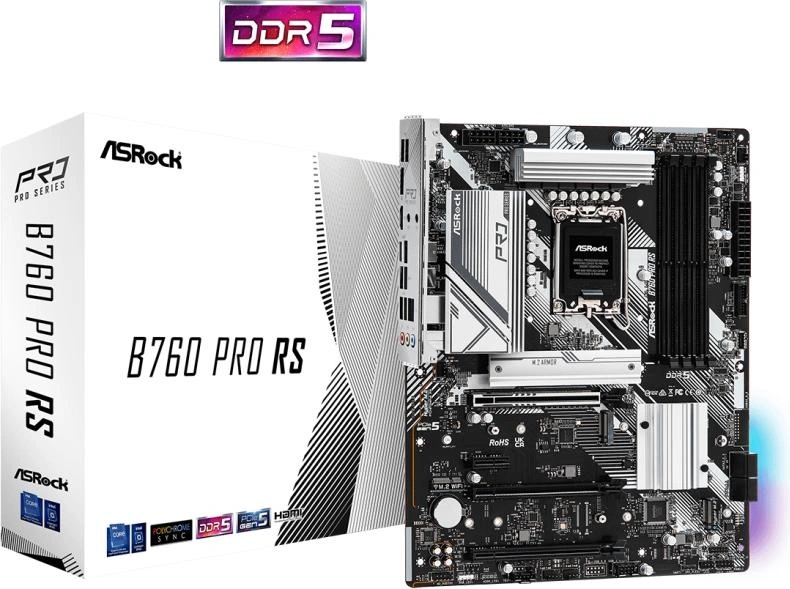

ASRock B760 PRO RS

ASRock B760 Pro RS

CPU

Supports 13th Gen & 12th Gen and next gen Intel Core Processors (LGA1700)

Supports Intel Hybrid Technology

Supports Intel Turbo Boost Max 3.0 Technology

Supports Intel Thermal Velocity Boost (TVB)

Supports Intel Adaptive Boost Technology (ABT)

Chipset

Intel B760

Memory

Dual Channel DDR5 Memory Technology

4 x DDR5 DIMM Slots

Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC)*

Max. capacity of system memory: 192GB

Supports Intel Extreme Memory Profile (XMP) 3.0

*1DPC 1R Up to 7200+ MHz (OC), 4800 MHz Natively.

1DPC 2R Up to 6000+ MHz (OC), 4400 MHz Natively.

2DPC 1R Up to 5600+ MHz (OC), 4000 MHz Natively.

2DPC 2R Up to 4800+ MHz (OC), 3600 MHz Natively.

BIOS

128Mb AMI UEFI Legal BIOS with GUI support

Graphics< /p>

Intel Xe Graphics Architecture (Gen 12)

1 x eDP 1.4, supports max. resolution up to Full HD 60Hz

1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz

1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz

*Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.

Audio

7.1 CH HD Audio (Realtek ALC897 Audio Codec)

Nahimic Audio

LAN

2 . 5 Gigabit LAN 10/100/1000/2500 Mb/s

Dragon RTL8125BG

Supports Dragon 2.5G LAN Software

Smart Auto Adjust Bandwidth Control

Visual User Friendly UI

Visual Network Usage Statistics

Optimized Default Setting for Game, Browser, and Streaming Modes

User Customized Priority Control

Slots

CPU:

1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*

Chipset:

1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode*

1 x PCIe 3.0 x16 Slot (PCIE4), supports x1 mode*

1 x PCIe 3.0 x1 Slot (PCIE2)*

1 x M. 2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT)

Supports AMD CrossFire

*Supports NVMe SSD as boot disks

Storage

CPU:

1 x Hyper M. 2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*

Chipset:

1 x M. 2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x2 (32 Gb/s) mode*

1 x Hyper M. 2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*

4 x SATA3 6.0 Gb/s Connectors

*Supports Intel Volume Management Device (VMD)

Supports NVMe SSD as boot disks

RAID

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

USB

2 x USB 3.2 Gen2 Type-C (1 Rear, 1 Front)

1 x USB 3.2 Gen2 Type-A (Rear)

6 x USB 3.2 Gen1 (4 Rear, 2 Front)

4 x USB 2.0 (2 Rear, 2 Front)

* All USB ports support ESD Protection

Connector

1 x eDP Signal Connector

1 x SPI TPM Header

1 x Power LED and Speaker Header

2 x RGB LED Headers*

2 x Addressable LED Headers**

1 x CPU Fan Connector (4-pin)***

1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****

5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****

1 x 24 pin ATX Power Connector

2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)

1 x Front Panel Audio Connector

1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 4 AIC Card)

1 x USB 2.0 Header (Supports 2 USB 2.0 ports)

1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)

1 x Front Panel Type C USB 3.2 Gen2 Header (10 Gb/s)

*Support in total up to 12V/3A, 36W LED Strip

**Support in total up to 5V/3A, 15W LED Strip

***CPU_FAN1 supports the fan power up to 1A (12W).

****CPU_FAN2/WP supports the fan power up to 2A (24W).

*****CHA_FAN1~5/WP support the fan power up to 2A (24W).

CPU_FAN2/WP and CHA_FAN1~5/WP can auto detect if 3-pin or 4-pin fan is in use.

Rear Panel I/O

2 x Antenna Mounting Points

1 x HDMI Port

1 x DisplayPort 1.4

1 x USB 3.2 Gen2 Type-A Port (10 Gb/s)

1 x USB 3.2 Gen2 Type-C Port (10 Gb/s)

4 x USB 3.2 Gen1 Ports

2 x USB 2.0 Ports

1 x RJ-45 LAN Port

HD Audio Jacks: Line in / Front Speaker / Microphone

Form Factor

ATX Form Factor: 30.5 cm x 24.4 cm

OS

Micro soft Windows 10 64-bit / 11 64-bit
