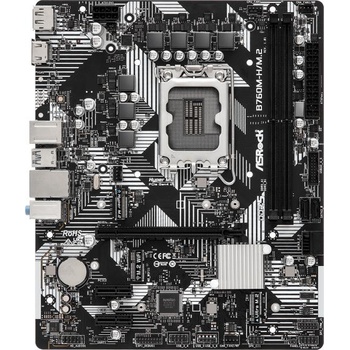

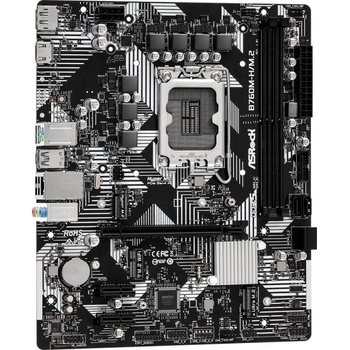

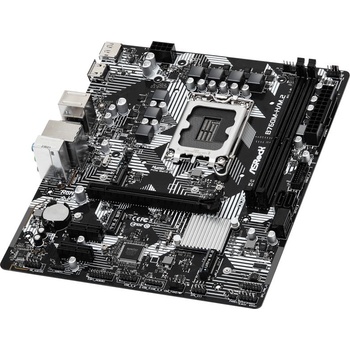

ASRock B760M-H/M.2

CPU

Supports 13 th Gen & 12 th Gen Intel Core Processors (LGA1700)

Supports Intel Hybrid Technology

Supports Intel Turbo Boost Max 3.0 Technology

Supports Intel Thermal Velocity Boost (TVB)

Supports Intel Adaptive Boost Technology (ABT)



Chipset

Intel B760



Memory

Dual Channel DDR5 Memory Technology

2 x DDR5 DIMM Slots

Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC) *

Max. capacity of system memory: 96GB

Supports Intel Extreme Memory Profile (XMP) 3.0

* 1DPC 1R Up to 7200+ MHz (OC), 5600 MHz Natively.

1DPC 2R Up to 6800+ MHz (OC), 5200 MHz Natively.



BIOS

128Mb AMI UEFI Legal BIOS with GUI support



Graphics

Intel Xe Graphics Architecture (Gen 12)

1x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz

- 1x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz

* Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.



Audio

7.1 CH HD Audio (Realtek ALC897 Audio Codec)



LAN

Gigabit LAN 10/100/1000 Mb/s

Realtek 8111H



Slots

CPU:

1x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode *

Chipset:

2x PCIe 3.0 x1 Slots (PCIE2 and PCIE3) *

1x M. 2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module

* Supports NVMe SSD as boot disks



Storage

CPU:

1 x Hyper M. 2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode *

Chipset:

1 x Ultra M. 2 Socket (M2_2, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes *

4 x SATA3 6.0 Gb/s Connectors

* Supports Intel Volume Management Device (VMD)

Supports NVMe SSD as boot disks

If M2_2 is occupied by a SATA-type M. 2 device, SATA3_3 will be disabled.



RAID

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices



USB

1 x USB 3.2 Gen1 Type-C (Rear)

5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front)

5 x USB 2.0 (2 Rear, 3 Front)

* All USB ports support ESD Protection



Connector

1 x SPI TPM Header

1 x Chassis Intrusion and Speaker Header

1 x CPU Fan Connector (4-pin) *

1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) * *

2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) * * *

1 x 24 pin ATX Power Connector

1 x 8 pin 12V Power Connector

1 x Front Panel Audio Connector

2 x USB 2.0 Headers (Support 3 USB 2.0 ports)

1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)

* CPU_FAN1 supports the fan power up to 1A (12W).

* * CPU_FAN2/WP supports the fan power up to 2A (24W).

* * * CHA_FAN1~2/WP support the fan power up to 2A (24W).

CPU_FAN2/WP and CHA_FAN1~2/WP can auto detect if 3-pin or 4-pin fan is in use.

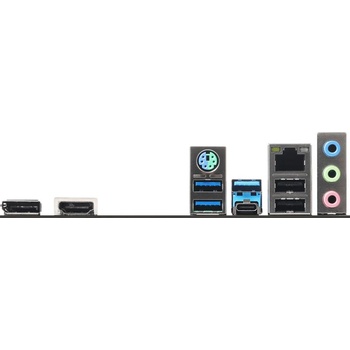

Rear Panel I/O

2 x Antenna Mounting Points

1 x PS/2 Mouse/Keyboard Port

1 x HDMI Port

1 x DisplayPort 1.4

1 x USB 3.2 Gen1 Type-C Port

3 x USB 3.2 Gen1 Type-A Ports

2 x USB 2.0 Ports

1 x RJ-45 LAN Port

HD Audio Jacks: Line in / Front Speaker / Microphone



Form Factor

Micro ATX Form Factor

24.4 cm x 20.1 cm



OS

Microsoft Windows 10 64-bit / 11 64-bit
