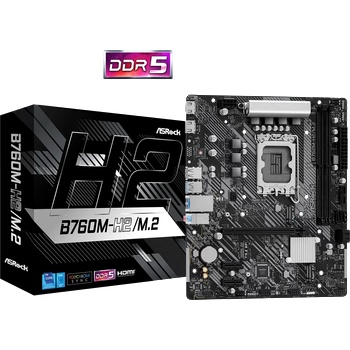

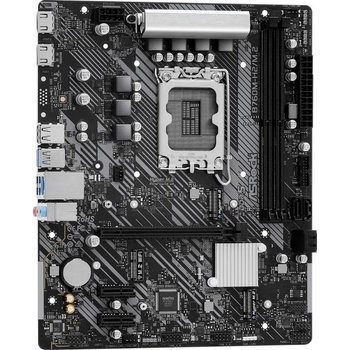

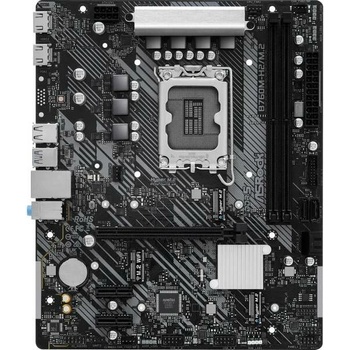

ASRock B760M-H2/M.2

ASROCK B760M-H2/M. 2 LGA1700 2xHDMIASROCK B760M-H2/M. 2 LGA1700 2xHDMI:Manufacturer : ASROCKManufacturer Part No : B760M-H2/M. 2Marketing DescriptionDiscover the ASRock B760M-H2/M. 2 motherboard, designed to elevate your computing experience. This micro ATX motherboard is compatible with 12th, 13th, and 14th Generation Intel Core processors, ensuring versatility and power for a range of uses from gaming to intensive workloads. With support for DDR5 SDRAM at speeds up to 7200 MHz (O. C. ), it provides the bandwidth needed for high-speed data processing and multitasking. The inclusion of 2.5 Gigabit Ethernet offers rapid network connections, reducing lag and improving online interactions. Audio enthusiasts will appreciate the high definition audio powered by the Realtek ALC897 codec, delivering crystal-clear sound. Storage options are abundant, with 4 SATA-600 ports and 2 Hyper M. 2 sockets, facilitating quick data access and boot times. The motherboard also features a robust UEFI BIOS with ASRock EZ Mode, making system setup and tuning straightforward and accessible. Whether you're building a new PC or upgrading an existing one, the ASRock B760M-H2/M. 2 motherboard offers a solid foundation with its blend of performance, connectivity, and quality. Product Features

• Enhanced connectivity
  Equipped with a plethora of interfaces including 2 HDMI ports, 4 USB 3.2 Gen 1 ports, and 2 USB 2.0 ports, this motherboard ensures a wide range of connectivity options for various peripherals and devices.
• High-speed memory support
  Supports DDR5 SDRAM technology with speeds up to 7200 MHz (O. C. ), enabling faster data transfer rates and improved system performance.
• Robust audio features
  Features high definition audio with an 8-channel Realtek ALC897 codec, providing immersive sound quality for gaming and multimedia experiences.
• Advanced networking
  Incorporates a 2.5 Gigabit Ethernet controller, offering high-speed network connectivity and smooth online gaming and streaming.
• Efficient storage solutions
  Includes 4 x SATA-600 (RAID) ports and 2 x Hyper M. 2 sockets, supporting a variety of storage configurations for faster data access and improved system efficiency.

GeneralProduct Type : Motherboard - micro ATXChipset Type : Intel B760Processor Socket : LGA1700 SocketMax Processors Qty : 1Compatible Processors : (supports 12th/13th and 14th Generation Intel Core / Pentium Gold / Celeron)Supported RAMMax Size : 96 GBTechnology : DDR5Bus Clock : 7200 MHz (O. C. ), 6800 MHz (O. C. ), 5600 MHz, 5200 MHzSupported RAM Integrity Check : Non-ECC, ECC (operate in non-ECC mode)Registered or Buffered : UnbufferedFeatures : Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) 3.0AudioType : HD Audio (8-channel)Audio Codec : Realtek ALC897Compliant Standards : High Definition AudioLANNetwork Controller : Dragon RTL8125BGNetwork Interfaces : 2.5 Gigabit EthernetExpansion / ConnectivityExpansion Slots : 1 x CPU
2 x DIMM 288-pin
1 x PCIe 4.0 x16
2 x PCIe 3.0 x1
1 x M. 2 socket (2230 M. 2 Key E slot)
1 x M. 2 socket (2260/2280 M. 2 Key M slot)
1 x M. 2 socket (2280 M. 2 Key M slot)Storage Interfaces : SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5
PCIe 4.0 -connectors: 2 x Hyper M. 2Interfaces : 2 x aerial
2 x HDMI
4 x USB 3.2 Gen 1
2 x USB 2.0
1 x LAN (2.5Gigabit Ethernet)
1 x audio line-in - mini-jack
1 x audio line-out - mini-jack
1 x microphone - mini-jackInternal Interfaces : 2 x USB 3.2 Gen 1 - header
4 x USB 2.0 - header
1 x audio - headerPower Connectors : 24-pin main power connector, 8-pin ATX12V connectorFeaturesBIOS Type : AMIBIOS Features : UEFI BIOSHardware Features : 5+1+1 Phase Power Design, ASRock Intel 4-Layer Memory POOL (Planes on Outer Layers) Technology, ASRock Auto Driver Installer, Intel Hybrid Technology, Intel Turbo Boost Max Technology 3.0, Intel Thermal Velocity Boost (TVB), Intel Adaptive Boost Technology (ABT), ESD Protection, ASRock Easy RAID Installer, ASRock EZ Mode, ASRock Full HD UEFI, ASRock Instant Flash, ASRock My Favorites in UEFIMiscellaneousIncluded Accessories : IO shield, 3 x M. 2 screwsCables Included : 2 x Serial ATA cableSoftware Included : ASRock A-Tuning, ASRock Dragon 2.5G LAN Software, ASRock Polychrome SYNCCompliant Standards : HDCP 2.3, FCC, ErP Ready, EuP ReadyWidth : 24.4 cmDepth : 20.1 cmPackage Details : BoxTechnical data provided by third party. We assume no liability for errors within these data.
