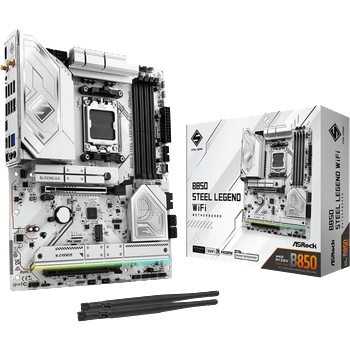

ASRock B850 STEEL LEGEND WIFI

Допълнителни снимки на продукта:

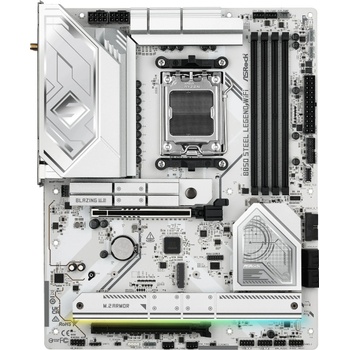

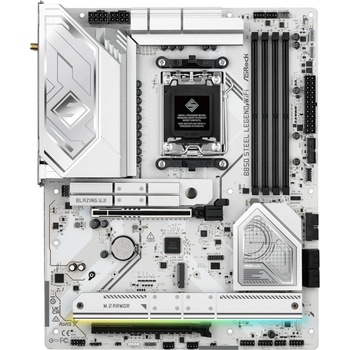

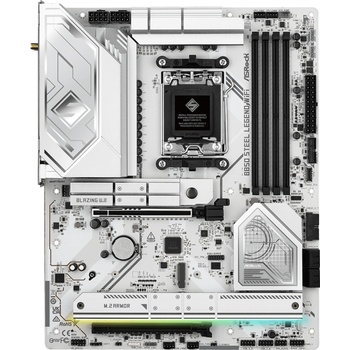

Снимка 1 Снимка 2 Снимка 3
ASROCK B850 STEEL LEGENF WIFI

USB: CPU:;- 2 x USB 3.2 Gen2 Type-C (Rear);- 1 x USB 3.2 Gen2 Type-A (Rear (USB32_3));- 1 x USB 3.2 Gen1 Type-A (Rear (USB32_1));Chipset:;- 1 x USB 3.2 Gen2x2 Type-C (Front);- 1 x USB 3.2 Gen2 Type-A (Rear (USB32_4));- 6 x USB 3.2 Gen1 Type-A (2 Rear (USB32_2 and USB32_5), 4 Front);- 8 x USB 2.0 (4 Rear, 4 Front)
Manufacturer: ASRock
Wireless: 802.11be 2x2 Wi-Fi 7 Module;Supports IEEE 802.11a/b/g/n/ac/ax/axe/be;Supports 2.4GHz/5GHz/6GHz* frequency band;Supports 160MHz channel bandwidth with 6GHz* frequency band;1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology;Supports Bluetooth 5.4;Supports MU-MIMO
Memory type: Dual Channel DDR5 Memory Technology;4 x DDR5 DIMM Slots;Supports DDR5 ECC/non-ECC, un-buffered memory up to 8000+(OC);Max. capacity of system memory: 256GB;Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
Features: Superb Productivity;- PCIe Gen5 (Graphics, M. 2);- Dual Channel DDR5;Rock-Solid Durability;- 14+2+1 Power Phase, 80A Dr. MOS for VCore+SOC+MISC with Enlarged Heatsink Armor;- Flexible Integrated I/O Shield;- 20K Long-lasting Black Caps (high quality and conductive polymer capacitors);Ultrafast Connectivity;- 2.5G LAN, 802.11be Wi-Fi 7 Module;- ASRock Lightning Gaming Ports;EZ Update;- BIOS Flashback Button;- ASRock Auto Driver Installer;EZ Troubleshooter
CPU's supported: Supports AMD Socket AM5 Ryzen 9000, 8000 and 7000 Series Processors
Chipset: AMD B850
Graphics: Integrated AMD RDNA graphics (Actual support may vary by CPU);- 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
Expansion Slots: CPU:;- 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode;Chipset:;- 1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode;- 1 x Vertical M. 2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module;- 15? Gold Contact in VGA PCIe Slot (PCIE1)
Storage: CPU:;- 1 x Blazing M. 2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode;- 1 x Hyper M. 2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode;Chipset:;- 1 x Hyper M. 2 Socket (M2_3, Key M), supports type 2230/2260/2280 PCIe Gen4x4 (64 Gb/s) mode;- 1 x Hyper M. 2 Socket (M2_4, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode;ASMedia ASM1061:;- 4 x SATA3 6.0 Gb/s Connectors;Supports RAID 0, RAID 1 and RAID 10 for M. 2 NVMe storage devices
I/O: 2 x Antenna Ports;1 x HDMI Port;1 x Optical SPDIF Out Port;2 x USB 3.2 Gen2 Type-C Ports (10 Gb/s);3 x USB 3.2 Gen1 Type-A Ports;2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s);4 x USB 2.0 Ports;1 x RJ-45 LAN Port;1 x BIOS Flashback Button;1 x Line Out Jack (Gold Audio Jack);1 x Microphone Input Jack (Gold Audio Jack)
Connectors: 1 x SPI TPM Header;1 x Thermistor Cable Header;1 x Power LED and Speaker Header;1 x RGB LED Header;3 x Addressable LED Headers;2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control);3 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control);1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control);1 x 24 pin ATX Power Connector (Hi-Density Power Connector);2 x 8 pin 12V Power Connectors (Hi-Density Power Connector);1 x Front Panel Audio Connector;2 x USB 2.0 Headers (Support 4 USB 2.0 ports);2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports);1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)
Audio: 7.1 CH HD Audio with Content Protection (Realtek ALC4082 Audio Codec);Individual PCB Layers for R/L Audio Channel;Direct Drive Technology on Front headphone port (Supports up to 600 Ohm headsets);Nahimic Audio
LAN: 2.5 Gigabit LAN 10/100/1000/2500 Mb/s;Dragon RTL8125BG;Supports Dragon 2.5G LAN Software;Smart Auto Adjust Bandwidth Control;Visual User Friendly UI;Visual Network Usage Statistics;Optimized Default Setting for Game, Browser, and Streaming Modes;User Customized Priority Control
BIOS: 256Mb AMI UEFI Legal BIOS with GUI support
Form Factor: ATX Form Factor: 30.5 cm x 24.4 cm;8 Layer PCB
OS: Microsoft Windows® 10 64-bit / 11 64-bit;Software;- ASRock Motherboard Utility (A-Tuning);- ASRock Dragon 2.5G LAN Software;- ASRock Polychrome SYNC;UEFI;- ASRock EZ Mode;- ASRock Full HD UEFI;- ASRock Auto Driver Installer;- ASRock Instant Flash



.
