ASRock B850M Pro RS

ASROCK B850M Pro RS AM5 DDR5 mATX MBASROCK B850M Pro RS AM5 DDR5 mATX MB:Manufacturer : ASROCKManufacturer Part No : B850M PRO RSMarketing DescriptionThe ASRock B850M PRO RS motherboard combines robust performance and versatile connectivity options. Built in a micro ATX form factor, it supports AMD Ryzen processors, providing an optimal environment for high-speed computing. With four DIMM slots, this motherboard allows for expandable DDR5 SDRAM memory, enhancing multitasking and overall system performance.
Featuring a range of storage interface options, including four SATA-600 ports and multiple M. 2 sockets, it ensures fast data transfer rates and the ability to set up various RAID configurations. The motherboard is designed for gamers and professionals alike, equipped with a 2.5 Gigabit Ethernet port for high-speed networking, alongside HDMI and DisplayPort outputs for superior video quality. The ASRock B850M PRO RS is a foundation for a powerful system. Product Features

• Versatile connectivity options
  The ASRock B850M PRO RS motherboard is equipped with a wide array of ports, including USB 3.2 Gen 1, USB-C 3.2 Gen 2, HDMI, and DisplayPort, allowing users to connect various devices seamlessly.
• Advanced RAM support
  This motherboard supports dual-channel memory architecture with 4 DIMM slots, allowing for high-performance RAM configurations and supporting speeds up to 8000 MHz when overclocked.
• Robust networking capabilities
  With a 2.5 Gigabit Ethernet port and compatibility with Fast and Gigabit Ethernet protocols, this motherboard ensures fast and reliable networking, suitable for online gaming and data-intensive tasks.
• Enhanced cooling features
  The design includes aluminum heatsinks and ASRock's FAN-Tastic Tuning, providing better thermal management and ensuring stability during intensive operations.
• Flexible storage configurations
  The motherboard supports multiple storage interfaces, including RAID configurations, making it ideal for users seeking high-performance storage solutions.

GeneralProduct Type : Motherboard - micro ATXChipset Type : AMD B850Processor Socket : Socket AM5Max Processors Qty : 1Compatible Processors : Ryzen (supports Ryzen 7000/8000/9000 Series)Supported RAMMax Size : 256 GBTechnology : DDR5Bus Clock : 8000 MHz (O. C. )Supported RAM Integrity Check : Non-ECC, ECCRegistered or Buffered : UnbufferedFeatures : Dual channel memory architecture, Intel Extreme Memory Profiles (XMP), AMD EXPO technologyAudioType : HD Audio (8-channel)Audio Codec : Realtek ALC897Compliant Standards : High Definition AudioLANNetwork Controller : Dragon RTL8125BGNetwork Interfaces : 2.5 Gigabit EthernetExpansion / ConnectivityExpansion Slots : 1 x CPU
4 x DIMM 288-pin
1 x PCIe 5.0 x16
1 x PCIe 4.0 x16 (x4 mode)
1 x M. 2 socket (Key E, for wireless module)
3 x M. 2 socket (2280 M. 2 Key M slot)Storage Interfaces : SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10
PCIe 4.0 -connectors: 2 x M. 2 - RAID 0 / RAID 1 / RAID 5

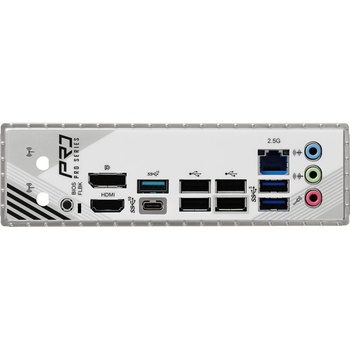

PCIe 5.0 -connectors: 1 x M. 2 - RAID 0 / RAID 1 / RAID 5Interfaces : 1 x HDMI
1 x DisplayPort
1 x USB-C 3.2 Gen 2
1 x USB 3.2 Gen 2
2 x USB 3.2 Gen 1
4 x USB 2.0
1 x audio line-out - mini-jack
1 x microphone - mini-jack
1 x audio line-in - mini-jack
2 x aerial
1 x LAN (2.5Gigabit Ethernet)Internal Interfaces : 1 x USB-C 3.2 Gen 1 - header
4 x USB 3.2 Gen 1 - header
4 x USB 2.0 - header
1 x SPI - header
1 x audio - headerPower Connectors : 24-pin main power connector, 8-pin ATX12V connector, 4-pin ATX12V connectorFeaturesBIOS Type : AMIBIOS Features : UEFI BIOSHardware Features : Pre-mounted I/O shield, 8+2+1 Phase Power Design, ASRock Auto Driver Installer, Dr. MOS MOSFET, Hi-Density Power Connectors, 6 Layer PCB, DIY Friendly Design, aluminium heatsink design, ASRock FAN-Tastic Tuning, ASRock Polychrome RGBMiscellaneousSoftware Included : ASRock Dragon 2.5G LAN Software, ASRock Polychrome SYNCCompliant Standards : FCC, ErP Ready, EuP ReadyWidth : 24.4 cmDepth : 24.4 cmTechnical data provided by third party. We assume no liability for errors within these data.
