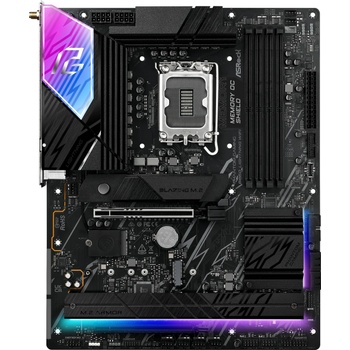

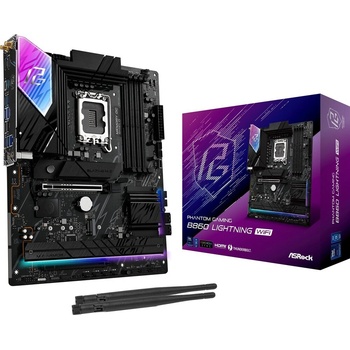

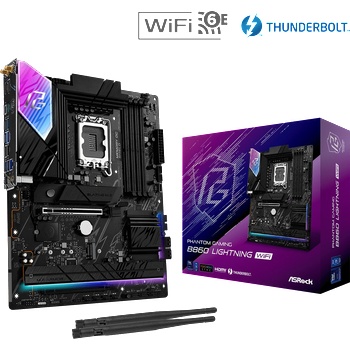

ASRock B860 LIGHTNING WIFI

Product SpecificationsParameter NameParameter OptionProduct TagVID-03Product ID70883UID63588ManufacturerASROCKPart NumberUSBCPU:;- 1 x Thunderbolt 4 Type-C (Rear) Chipset:;- 1 x USB 3.2 Gen2x2 Type-C (Front);- 2 x USB 3.2 Gen2 Type-A (Rear)- 8 x USB 3.2 Gen1 (4 Rear, 4 Front);- 7 x USB 2.0 (3 Rear, 4 Front)ManufacturerASRockWireless802.11ax e Wi-Fi 6E Module;Supports IEEE 802.11a/b/g/n/ac/ax/axe;Supports Dual-Band 2x2 160MHz with extended 6GHz band* support;2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology;Supports Bluetooth 5.3;Supports MU-MIMO;Supports Killer LAN Software;Supports Killer DoubleShot Pro802.11axe Wi-Fi 6E Module;Supports IEEE 802.11a/b/g/n/ac/ax/axe;Supports Dual-Band 2x2 160MHz with extended 6GHz band* support;2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology;Supports Bluetooth 5.3;Supports MU-MIMO;Supports Killer LAN Software;Supports Killer DoubleShot ProMemory typeDual Channel DDR5 Memory Technology;4 x DDR5 DIMM Slots;Supports DDR5 non-ECC, un-buffered memory up to 8933+(OC);Supports Clocked Unbuffered DIMM (CUDIMM);Max. capacity of system memory: 256GB;Supports Intel® Extreme Memory Profile (XMP) 3.0xFeaturesSuperb Productivity;- PCIe Gen5 (Graphics, M. 2);- Dual Channel DDR5;- Thunderbolt 4 Type-C Port (40 Gb/s);Rock-Solid Durability;- Server-Grade Low-Loss PCB;- 14+1+1+1+1 Power Phase, 80A Dr. MOS for VCore+GT+SA with Enlarged Heatsink Armor;- Memory OC Shield;- Flexible Integrated I/O Shield;- 20K Long-lasting Black Caps (high quality and conductive polymer capacitors);Ultrafast Gaming;- Killer 2.5G LAN, 802.11axe Wi-Fi 6E Module;- Killer DoubleShot Pro;EZ Update- BIOS Flashback Button;- ASRock Auto Driver Installer;EZ Troubleshooter;- ASRock Post Status CheckerCPU's supportedSupports Intel® Core Ultra Processors (Series 2) (LGA1851);Supports Intel® Hybrid Technology;Supports Intel® Turbo Boost Max 3.0 Technology;Supports Intel® Thermal Velocity Boost (TVB);Supports Intel® Adaptive Boost Technology (ABT);Integrated NPU for dedicated AI accelerationChipsetIntel® B860GraphicsIntel® Xe LPG Graphics Architecture;1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz;1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz;1 x Intel® Thunderbolt 4, supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120HzExpansion SlotsCPU:;- 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode;Chipset:;- 1 x PCIe 4.0 x16 Slot (PCIE2), supports x2 mode;- 1 x M. 2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT)StorageCPU:;- 1 x Blazing M. 2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode;Chipset:;- 1 x Hyper M. 2 Socket (M2_2, Key M), supports type 2230/2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode;- 1 x Hyper M. 2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode;- 1 x M. 2 Socket (M2_4, Key M), supports type 2280 PCIe Gen4x2 (32 Gb/s) mode;- 4 x SATA3 6.0 Gb/s Connectors;Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devicesI/O2 x Antenna Ports;1 x HDMI Port;1 x DisplayPort 1.4;1 x Optical SPDIF Out Port;1 x Thunderbolt 4 Type-C Port (40 Gb/s for USB4 protocol; 40Gb/s for Thunderbolt protocol);2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s);4 x USB 3.2 Gen1 Ports;3 x USB 2.0 Ports;1 x RJ-45 LAN Port;1 x BIOS Flashback Button;1 x Line Out Jack (Gold Audio Jack);1 x Microphone Input Jack (Gold Audio Jack)Connectors1 x Thermistor Cable Header;1 x SPI TPM Header;1 x Power LED and Speaker Header;1 x RGB LED Header;3 x Addressable LED Headers;2 x CPU Fan Connector (4-pin) (Smart Fan Speed Control);5 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control);1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control);1 x 24 pin ATX Power Connector;2 x 8 pin 12V Power Connectors (Hi-Density Power Connector);1 x Front Panel Audio Connector;2 x USB 2.0 Headers (Support 4 USB 2.0 ports);2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports);1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)Audio7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec);Impedance Sensing on Rear Out port;Individual PCB Layers for R/L Audio Channel;Nahimic AudioLAN2.5 Gigabit LAN 10/100/1000/2500 Mb/s;Killer E3100G;Supports Killer LAN Software;Supports Killer DoubleShot ProBIOS256Mb AMI UEFI Legal BIOS with GUI supportForm FactorATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm;2oz Copper PCBOSMicrosoft Windows® 11 64-bit;Software;- ASRock Motherboard Utility (Phantom Gaming Tuning);- Killer Control Center;- ASRock Polychrome SYNC;UEFI;- ASRock EZ Mode;- ASRock Full HD UEFI;- ASRock My Favorites in UEFI;- ASRock Auto Driver Installer;- ASRock Instant FlashWarranty36 Months
