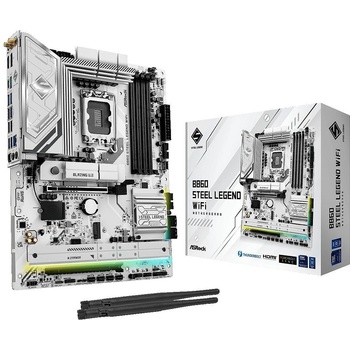

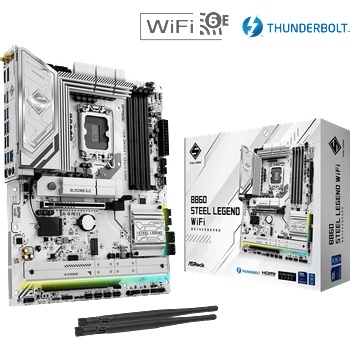

ASRock B860 STEEL LEGEND WIFI

Допълнителни снимки на продукта:

Снимка 1 Снимка 2 Снимка 3
ASROCK B860 STEEL LEGEND WIFI

USB: CPU:;- 1 x Thunderbolt 4 Type-C (Rear) Chipset:;- 1 x USB 3.2 Gen2x2 Type-C (Front);- 2 x USB 3.2 Gen2 Type-A (Rear);- 8 x USB 3.2 Gen1 (4 Rear, 4 Front);- 7 x USB 2.0 (3 Rear, 4 Front)
Manufacturer: ASRock
Wireless: 802.11axe Wi-Fi 6E Module;Supports IEEE 802.11a/ b/ g/ n/ ac/ ax/ axe;Supports Dual-Band 2x2 with extended 6GHz band* support;2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology;Supports Bluetooth 5.3;Supports MU-MIMO
Memory type: Dual Channel DDR5 Memory Technology;4 x DDR5 DIMM Slots;Supports DDR5 non-ECC, un-buffered memory up to 8666+(OC);Supports Clocked Unbuffered DIMM (CUDIMM);Max. capacity of system memory: 256GB;Supports Intel® Extreme Memory Profile (XMP) 3.0x
Features: Superb Productivity;- PCIe Gen5 (Graphics, M. 2);- Dual Channel DDR5;- Thunderbolt 4 Type-C Port (40 Gb/s);Rock-Solid Durability;- 14+1+1+1+1 Power Phase, 80A Dr. MOS for VCore+GT+SA with Enlarged Heatsink Armor;- Flexible Integrated I/O Shield;- 20K Long-lasting Black Caps (high quality and conductive polymer capacitors);Ultrafast Connectivity;- 2.5G LAN, 802.11axe Wi-Fi 6E Module;EZ Update;- BIOS Flashback Button;- ASRock Auto Driver Installer;EZ Troubleshooter
CPU's supported: Supports Intel® Core Ultra Processors (Series 2) (LGA1851);Supports Intel® Hybrid Technology;Supports Intel® Turbo Boost Max 3.0 Technology;Supports Intel® Thermal Velocity Boost (TVB);Supports Intel® Adaptive Boost Technology (ABT);Integrated NPU for dedicated AI acceleration
Chipset: Intel® B860
Bluetooth: 5.3
Graphics: Intel® Xe LPG Graphics Architecture;1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz;1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz;1 x Intel® Thunderbolt 4, supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
Expansion Slots: CPU:;- 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode;Chipset:;- 1 x PCIe 4.0 x16 Slot (PCIE2), supports x2 mode;- 1 x M. 2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT)
Storage: CPU:;- 1 x Blazing M. 2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode;Chipset:;- 1 x Hyper M. 2 Socket (M2_2, Key M), supports type 2230/2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode;- 1 x Hyper M. 2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode;- 1 x M. 2 Socket (M2_4, Key M), supports type 2280 PCIe Gen4x2 (32 Gb/s) mode;- 4 x SATA3 6.0 Gb/s Connectors;Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
I/O: 2 x Antenna Ports;1 x HDMI Port;1 x DisplayPort 1.4;1 x Optical SPDIF Out Port;1 x Thunderbolt 4 Type-C Port (40 Gb/s for USB4 protocol; 40Gb/s for Thunderbolt protocol);2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s);4 x USB 3.2 Gen1 Ports;3 x USB 2.0 Ports;1 x RJ-45 LAN Port;1 x BIOS Flashback Button;1 x Line Out Jack (Gold Audio Jack);1 x Microphone Input Jack (Gold Audio Jack)
Connectors: 1 x Thermistor Cable Header;1 x SPI TPM Header;1 x Power LED and Speaker Header;1 x RGB LED Header;3 x Addressable LED Headers;2 x CPU Fan Connector (4-pin) (Smart Fan Speed Control);5 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control);1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control);1 x 24 pin ATX Power Connector;2 x 8 pin 12V Power Connectors (Hi-Density Power Connector);1 x Front Panel Audio Connector;2 x USB 2.0 Headers (Support 4 USB 2.0 ports);2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports);1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)
Audio: 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec);Impedance Sensing on Rear Out port;Individual PCB Layers for R/L Audio Channel;Nahimic Audio
LAN: 2.5 Gigabit LAN 10/ 100/ 1000/ 2500 Mb/s;Dragon RTL8125BG;Supports Dragon 2.5G LAN Software;Smart Auto Adjust Bandwidth Control;Visual User Friendly UI;Visual Network Usage Statistics;Optimized Default Setting for Game, Browser, and Streaming Modes;User Customized Priority Control
BIOS: 256Mb AMI UEFI Legal BIOS with GUI support
Form Factor: ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm;2oz Copper PCB
OS: Microsoft Windows® 11 64-bit;Software: ASRock Motherboard Utility (A-Tuning);ASRock Dragon 2.5G LAN Software;ASRock Polychrome SYNC;UEFI: ASRock EZ Mode;ASRock Full HD UEFI;ASRock My Favorites in UEFI;ASRock Auto Driver Installer;ASRock Instant Flash



.
