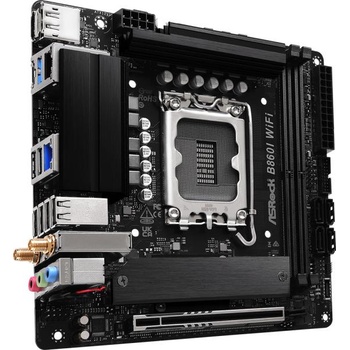

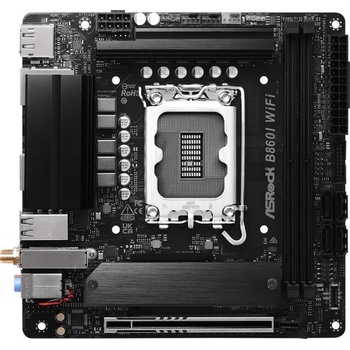

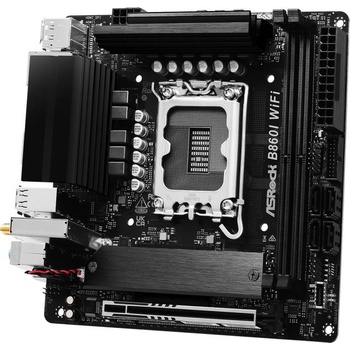

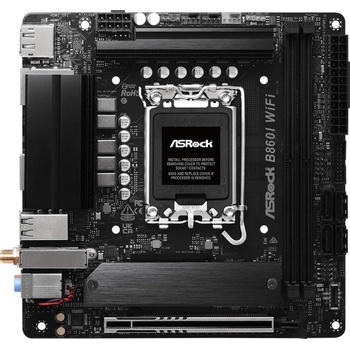

ASRock B860I WiFi

ASROCK B860I WiFi LGA1851 DDR5 mini ITX MBASROCK B860I WiFi LGA1851 DDR5 mini ITX MB:Manufacturer : ASROCKManufacturer Part No : B860I WIFIMarketing DescriptionThe ASRock B860I WiFi motherboard offers a robust platform to power any compact build. The mini ITX form factor allows for efficient use of space while not compromising on capability, supporting Intel Core Ultra processors from Series 2. With multiple PCIe slots, including a 2280 M. 2 Key M slot and a Key E for wireless modules, there is ample opportunity for expansion and customization. This motherboard is designed with a focus on durability and performance, featuring an 8-layer PCB and advanced power connectors for reliable operation under load. Additionally, the B860I WiFi is equipped with high definition audio capabilities powered by a Realtek ALC897 codec. For connectivity, it features 2.5 Gigabit Ethernet and Wi-Fi 6E support, along with extensive USB options including USB-C. With support for dual-channel DDR5 RAM and several RAID configurations, this motherboard provides everything needed for a high-performance computing experience. Product Features

• Versatile expansion options
  Includes multiple PCIe slots and M. 2 sockets for expansion capabilities, allowing users to customize and upgrade their systems easily.
• Efficient networking capabilities
  Features advanced networking options such as 2.5 Gigabit Ethernet and support for Wi-Fi 6E, ensuring high-speed Internet connectivity.
• Enhanced audio experience
  Equipped with high definition audio standards and a Realtek ALC897 codec, delivering an immersive sound experience for gaming and media.
• Advanced power design
  Built with an 8-layer PCB and sophisticated power connectors, promoting stability and performance during demanding tasks.
• Extensive USB connectivity
  Offers a variety of USB ports including USB-C and USB 3.2 options, allowing for quick and versatile connections to peripherals.

GeneralProduct Type : Motherboard - mini ITXChipset Type : Intel B860Processor Socket : LGA1851 SocketMax Processors Qty : 1Compatible Processors : (supports Intel Core Ultra processors (Series 2))Supported RAMMax Size : 128 GBTechnology : DDR5Bus Clock : 4466 MHz (O. C. )Supported RAM Integrity Check : Non-ECCRegistered or Buffered : Clocked unbuffered, unbufferedFeatures : Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) 3.0AudioType : HD Audio (8-channel)Audio Codec : Realtek ALC897Compliant Standards : High Definition AudioLANNetwork Controller : Dragon RTL8125BGNetwork Interfaces : 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax (Wi-Fi 6E), Bluetooth 5.3Expansion / ConnectivityExpansion Slots : 1 x CPU
2 x DIMM 288-pin
1 x PCIe 5.0 x16
1 x M. 2 socket (Key E, for wireless module)
2 x M. 2 socket (2280 M. 2 Key M slot)Storage Interfaces : SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5
PCIe 4.0 -connectors: 1 x Hyper M. 2

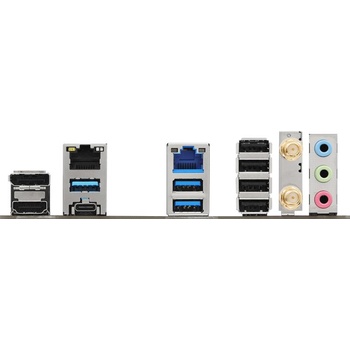

PCIe 5.0 -connectors: 1 x Blazing M. 2Interfaces : 1 x HDMI
2 x aerial
1 x DisplayPort
4 x USB 2.0
2 x LAN (2.5Gigabit Ethernet)
1 x audio line-out
1 x microphone
1 x audio line-in
2 x USB 3.2 Gen 1
1 x USB 3.2 Gen 2
1 x USB-C 3.2 Gen2x2Internal Interfaces : 1 x USB-C 3.2 Gen 2 - header
2 x USB 3.2 Gen 1 - header
2 x USB 2.0 - header
1 x audio - headerPower Connectors : 24-pin main power connector, 8-pin ATX12V connectorFeaturesBIOS Type : AMIBIOS Features : UEFI BIOSHardware Features : 8+1+1+1+1 Phase Power Design, ASRock Auto Driver Installer, Intel Hybrid Technology, Intel Turbo Boost Max Technology 3.0, Intel Thermal Velocity Boost (TVB), Intel Adaptive Boost Technology (ABT), Dr. MOS MOSFET, Hi-Density Power Connectors, 8 Layer PCB, aluminium heatsink design, Nahimic Audio Enhacer, ASRock Polychrome RGB, DIY Friendly Design, ASRock EZ Mode, ASRock Full HD UEFI, ASRock My Favorites in UEFI, ASRock Instant FlashMiscellaneousIncluded Accessories : IO shield, 2 x ASRock WiFi 2.4/5/6 GHz Antennas, 2 x M. 2 screwsCables Included : 2 x Serial ATA cableSoftware Included : ASRock A-Tuning, ASRock Dragon 2.5G LAN Software, ASRock Polychrome SYNCCompliant Standards : FCC, ErP Ready, EuP ReadyWidth : 17 cmDepth : 17 cmTechnical data provided by third party. We assume no liability for errors within these data.
ASROCK



.
