ASRock B860M-X

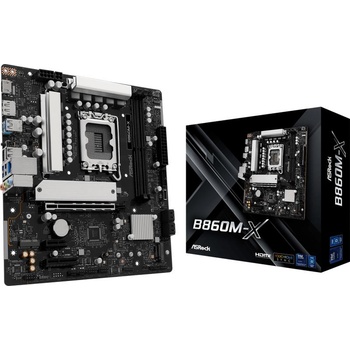

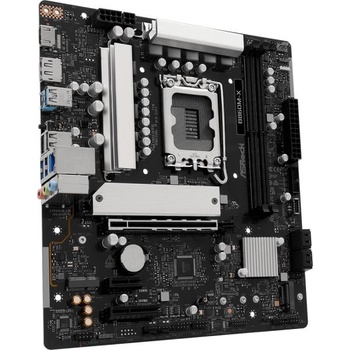

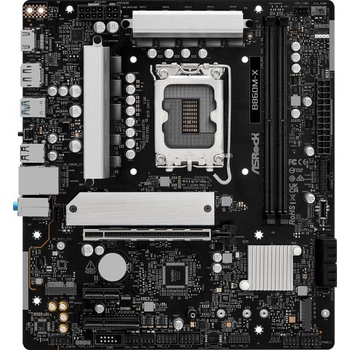

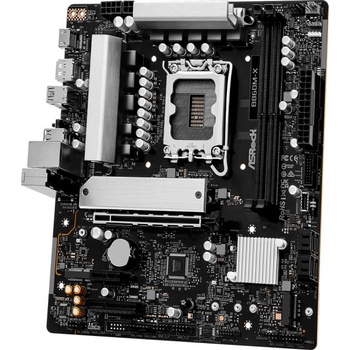

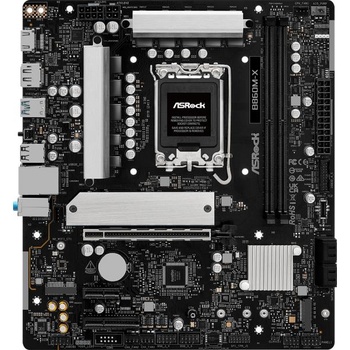

ASROCK B860M-X LGA1851 DDR5 mATX MBASROCK B860M-X LGA1851 DDR5 mATX MB:Manufacturer : ASROCKManufacturer Part No : B860M-XMarketing DescriptionThe ASRock B860M-X motherboard is designed for performance and efficiency, accommodating Intel Core Ultra processors from Series 2. This micro ATX form factor motherboard supports DDR5 SDRAM with a maximum speed of up to 9066 MHz when overclocked, ensuring high-speed data transfer and enhanced multitasking capabilities. Equipped with two DIMM slots, it allows for dual-channel memory architecture and is compatible with Intel Extreme Memory Profiles (XMP) 3.0 and AMD EXPO technology to optimize memory performance. For ample connectivity, the B860M-X features multiple interfaces including USB 3.2 Gen 1, USB-C 3.2 Gen 2x2, HDMI, and 2.5 Gigabit Ethernet for swift data transmission. The audio capabilities are supported by a high definition audio card with an 8-channel audio codec from Realtek. This motherboard integrates advanced features such as ASRock Instant Flash, a BIOS FlashBack button, and 7+1+1+1+1 Power Phase Design, all housed within a sturdy aluminum heatsink design to manage thermal performance effectively. Product Features

• Robust connectivity options
  The ASRock B860M-X offers extensive connectivity with multiple USB ports, including USB 3.2 Gen 1 and USB-C 3.2 Gen 2x2, as well as HDMI and DisplayPort outputs to provide seamless integration with various devices.
• Efficient thermal management
  This motherboard features an aluminum heatsink design that enhances thermal performance, ensuring stable operation during demanding tasks while optimizing overall system efficiency.
• Advanced memory support
  Compatible with DDR5 SDRAM and Intel Extreme Memory Profiles (XMP) 3.0, the B860M-X enables high-speed memory operation, providing exceptional performance for multitasking and demanding applications.
• Enhanced audio experience
  With a Realtek ALC897 audio codec, the high definition audio card provides an 8-channel output, delivering a high-quality sound experience for gaming and multimedia applications.

GeneralProduct Type : Motherboard - micro ATXChipset Type : Intel B860Processor Socket : LGA1851 SocketMax Processors Qty : 1Compatible Processors : (supports Intel Core Ultra processors (Series 2))Supported RAMMax Size : 128 GBTechnology : DDR5Bus Clock : 9066 MHz (O. C. ), 6400 MHz, 6800 MHz (O. C. )Supported RAM Integrity Check : Non-ECCRegistered or Buffered : Unbuffered, clocked unbufferedFeatures : Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) 3.0, AMD EXPO technologyAudioType : HD Audio (8-channel)Audio Codec : Realtek ALC897Compliant Standards : High Definition AudioLANNetwork Controller : Dragon RTL8125BGNetwork Interfaces : 2.5 Gigabit EthernetExpansion / ConnectivityExpansion Slots : 1 x CPU
2 x DIMM 288-pin
1 x PCIe 4.0 x16
1 x PCIe 4.0 x1
1 x PCIe 4.0 x4
1 x M. 2 socket (2230 M. 2 Key E slot)
1 x M. 2 socket (2260/2280 M. 2 Key M slot)
1 x M. 2 socket (2230/2242/2260/2280 M. 2 Key M slot)Storage Interfaces : SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5
PCIe 5.0 -connectors: 1 x Blazing M. 2

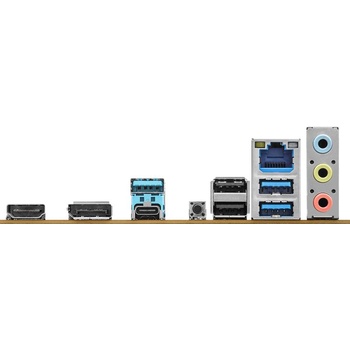

PCIe 4.0 -connectors: 1 x Hyper M. 2Interfaces : 1 x USB-C 3.2 Gen2x2
3 x USB 3.2 Gen 1
2 x USB 2.0
1 x LAN (2.5Gigabit Ethernet)
1 x HDMI
1 x DisplayPort
1 x audio line-in - mini-jack
1 x microphone - mini-jack
1 x audio line-out - mini-jackInternal Interfaces : 4 x USB 2.0 - header
2 x USB 3.2 Gen 1 - header
1 x USB-C 3.2 Gen 1 - header
1 x SPI - header
1 x audio - headerPower Connectors : 24-pin main power connector, 8-pin ATX12V connector, 4-pin ATX12V connectorFeaturesBIOS Type : AMIBIOS Features : UEFI BIOSHardware Features : BIOS FlashBack button, ASRock EZ Mode, ASRock Full HD UEFI, ASRock My Favorites in UEFI, ASRock Instant Flash, ASRock Auto Driver Installer, Intel Hybrid Technology, Intel Turbo Boost Max Technology 3.0, Intel Thermal Velocity Boost (TVB), Intel Adaptive Boost Technology (ABT), ASRock POST Status Checker (PSC), 7+1+1+1+1 Power Phase Design, 6 Layer PCB, aluminium heatsink design, chipset heatsink, ASRock Polychrome RGB, DIY Friendly Design, CUDIMM supportMiscellaneousIncluded Accessories : 2 x M. 2 screws, standoff for M. 2 socket, IO shieldCables Included : 2 x Serial ATA cableSoftware Included : ASRock A-Tuning, ASRock Dragon 2.5G LAN Software, ASRock Polychrome SYNCCompliant Standards : FCC, ErP Ready, EuP Ready, HDCP 2.3, DisplayPort 1.4Width : 24.4 cmDepth : 21.8 cmTechnical data provided by third party. We assume no liability for errors within these data.
