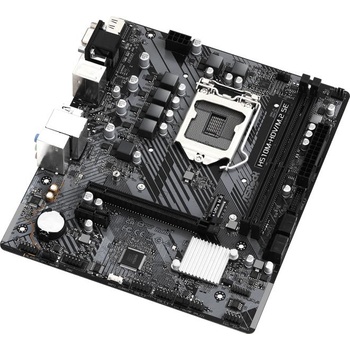

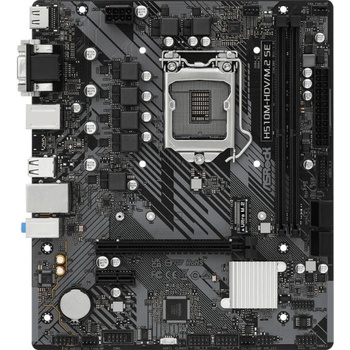

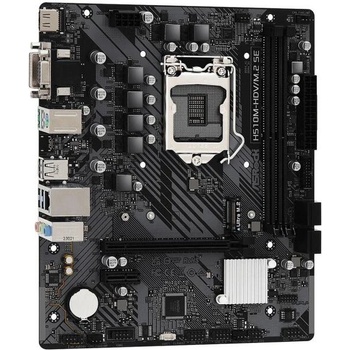

ASRock H510M-HDV/M.2 SE

CPU

• Supports 10 th Gen & 11 th Gen Intel Core Processors (LGA1200)


• Supports Intel Turbo Boost Max 3.0 Technology



Chipset

• Intel H470



Memory

• Dual Channel DDR4 Memory Technology


• 2 x DDR4 DIMM Slots


• Supports DDR4 2933 / 2800 / 2666 / 2400 / 2133 non-ECC, un-buffered memory*


• Supports ECC UDIMM memory modules (operate in non-ECC mode)


• Max. capacity of system memory: 64GB


• Supports Intel Extreme Memory Profile (XMP) 2.0


• 15μ Gold Contact in DIMM Slots

* Core (i9/i7) support DDR4 up to 2933; Core (i5/i3), Pentium and Celeron support DDR4 up to 2666.



BIOS

• 128Mb AMI UEFI Legal BIOS with GUI support



Graphics

• 1 x HDMI


• Intel 11 Gen Processors support HDMI 2.0, HDCP 2.3 and max. resolution up to 4K 60Hz


• Intel 10 Gen Processors support HDMI 1.4, HDCP 2.3 and max. resolution up to 4K 30Hz


• 1 x DVI-D, supports HDCP 2.3 and max. resolution up to Full HD (1920x1200) 60Hz


• 1 x D-Sub, supports max. resolution up to Full HD (1920x1200) 60Hz

* Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.

Graphics specifications may vary between CPU types.





Audio

• 7.1 CH HD Audio (Realtek ALC897 Audio Codec)



LAN

• Gigabit LAN 10/100/1000 Mb/s


• Realtek 8111H



Slots

Intel 11 th Gen & 10 th Gen Processors:

• 1x PCIe 4.0 x16 Slot (PCIE1) *


• Intel 11 th Gen Processors support PCIe 4.0 x16


• Intel 10 th Gen Processors support PCIe 3.0 x16

Intel H470 Chipset:

• 1x PCIe 3.0 x1 Slot (PCIE2) *

* Supports NVMe SSD as boot disks





Storage

Chipset

• 1 x Ultra M. 2 Socket (M2_1, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes *


• 4 x SATA3 6.0 Gb/s Connectors

* Supports Intel Optane Technology

Supports NVMe SSD as boot disks



RAID

• Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices



USB

• 6 x USB 3.2 Gen1 (4 Rear, 2 Front)


• 6 x USB 2.0 (2 Rear, 4 Front)

* All USB ports support ESD Protection





Connector

• 1 x COM Port Header


• 1 x SPI TPM Header


• 1 x Chassis Intrusion and Speaker Header


• 1 x CPU Fan Connector (4-pin) *


• 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) * *


• 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) * * *


• 1 x 24 pin ATX Power Connector


• 1 x 8 pin 12V Power Connector


• 1 x Front Panel Audio Connector


• 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)


• 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)

* CPU_FAN1 supports the fan power up to 1A (12W).

* * CPU_FAN2/WP supports the fan power up to 2A (24W).

* * * CHA_FAN1~2/WP support the fan power up to 2A (24W).

CPU_FAN2/WP and CHA_FAN1~2/WP can auto detect if 3-pin or 4-pin fan is in use.

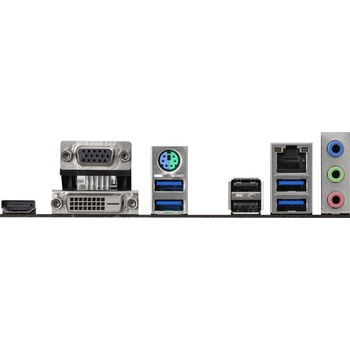

Rear Panel I/O

• 1 x PS/2 Mouse/Keyboard Port


• 1 x D-Sub Port


• 1 x DVI-D Port


• 1 x HDMI Port


• 2 x USB 2.0 Ports


• 4 x USB 3.2 Gen1 Ports


• 1 x RJ-45 LAN Port


• HD Audio Jacks: Line in / Front Speaker / Microphone



Form Factor

Micro ATX Form Factor: 23.1 cm x 19.8 cm





OS

Microsoft Windows 10 64-bit / 11 64-bit
