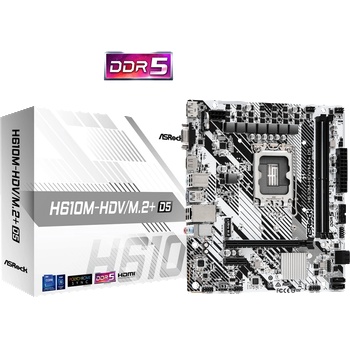

ASRock H610M-HDV/M.2+ D5
Технически детайли Memory type:- Dual Channel DDR5 Memory Technology; - 2 x DDR5 DIMM Slots; - 13th Gen Intel® Core Processors support DDR5 non-ECC, un-buffered memory up to 5600*;...
64,45 €|126,05 лв.*
Информация в магазина
Вид:
Препоръчани оферти (3)
ASRock H610M-HDV/M.2+ D5
h610m-hdv/m. 2+d5 (4710483943478 / h610m-hdv/m.2+ d5)
H610M-HDV/M. 2+ D5 - motherboard - micro ATX - LGA1700 Socket - H610
Дънна платка ASRock H610M-HDV/M. 2+ D5 LGA1700 (H610M-HDV/M.2+ D5)
Описание на продукта
Технически детайли Memory type:- Dual Channel DDR5 Memory Technology; - 2 x DDR5 DIMM Slots; - 13th Gen Intel® Core Processors support DDR5 non-ECC, un-buffered memory up to 5600*;...
Параметри на продукта
Производител
ASRock
CPU Socket
Socket 1700
Чипсет
Intel H610
Марка процесор
Intel
Тип на паметта
DDR5
Параметри на продукта
Производител
ASRock
CPU Socket
Socket 1700
Чипсет
Intel H610
Марка процесор
Intel
Тип на паметта
DDR5
Описание на продукта
Технически детайли
Memory type:- Dual Channel DDR5 Memory Technology; - 2 x DDR5 DIMM Slots; - 13th Gen Intel® Core Processors support DDR5 non-ECC, un-buffered memory up to 5600*; - 12th Gen Intel® Core Processors support DDR5 non-ECC, un-buffered memory up to 4800*; - Max. capacity of system memory: 96GB; - Supports Intel® Extreme Memory Profile (XMP) 3.0
CPU's supported:- Supports 14th, 13th & 12th Gen Intel® Core Processors (LGA1700); - Supports Intel® Hybrid Technology; - Supports Intel® Turbo Boost Max 3.0 Technology
Chipset:- Intel® H610
Graphics:- Intel® Xe Graphics Architecture (Gen 12)*; - 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz; - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz; - 1 x D-Sub, supports max. resolution up to Full HD (1920x1080) 60Hz
Expansion Slots:CPU: - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*; Chipset: - 1 x PCIe 3.0 x1 Slot (PCIE2)*
Storage:Chipset: - 1 x Ultra M. 2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen3x4 (32 Gb/s) mode*; - 4 x SATA3 6.0 Gb/s Connectors
I/O:- 1 x PS/2 Mouse/Keyboard Port; - 1 x D-Sub Port; - 1 x HDMI Port; - 1 x DisplayPort 1.4; - 1 x USB 3.2 Gen1 Type-C Port; - 1 x USB 3.2 Gen1 Type-A Port; - 4 x USB 2.0 Ports; - 1 x RJ-45 LAN Port; - HD Audio Jacks: Line in / Front Speaker / Microphone
Connectors:- 1 x SPI TPM Header; - 1 x Chassis Intrusion and Speaker Header; - 1 x Addressable LED Header*; - 1 x CPU Fan Connector (4-pin)**; - 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)***; - 1 x 24 pin ATX Power Connector; - 1 x 8 pin 12V Power Connector; - 1 x Front Panel Audio Connector; - 1 x USB 2.0 Header (Supports 2 USB 2.0 ports); - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
Audio:- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
LAN:- Gigabit LAN 10/100/1000 Mb/s; - Realtek 8111H
BIOS:- 128Mb AMI UEFI Legal BIOS with GUI support
Form Factor:- Micro ATX Form Factor: 8.66-in x 7.6-in, 22.0 cm x 19.3 cm
OS:- Microsoft® Windows® 10 64-bit / 11 64-bit
Сайт на производителя:https://www. asrock. com/mb/Intel/H610M-HDVM. 2+%20D5/index. asp#Specification
Разширено търсене:ASROCK H610 2xDDR5 4xSATA3HDMI DP VGA1xM2 GLAN1xPCIEx16 1xPCIEx1
Memory type:- Dual Channel DDR5 Memory Technology; - 2 x DDR5 DIMM Slots; - 13th Gen Intel® Core Processors support DDR5 non-ECC, un-buffered memory up to 5600*; - 12th Gen Intel® Core Processors support DDR5 non-ECC, un-buffered memory up to 4800*; - Max. capacity of system memory: 96GB; - Supports Intel® Extreme Memory Profile (XMP) 3.0
CPU's supported:- Supports 14th, 13th & 12th Gen Intel® Core Processors (LGA1700); - Supports Intel® Hybrid Technology; - Supports Intel® Turbo Boost Max 3.0 Technology
Chipset:- Intel® H610
Graphics:- Intel® Xe Graphics Architecture (Gen 12)*; - 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz; - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz; - 1 x D-Sub, supports max. resolution up to Full HD (1920x1080) 60Hz
Expansion Slots:CPU: - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*; Chipset: - 1 x PCIe 3.0 x1 Slot (PCIE2)*
Storage:Chipset: - 1 x Ultra M. 2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen3x4 (32 Gb/s) mode*; - 4 x SATA3 6.0 Gb/s Connectors
I/O:- 1 x PS/2 Mouse/Keyboard Port; - 1 x D-Sub Port; - 1 x HDMI Port; - 1 x DisplayPort 1.4; - 1 x USB 3.2 Gen1 Type-C Port; - 1 x USB 3.2 Gen1 Type-A Port; - 4 x USB 2.0 Ports; - 1 x RJ-45 LAN Port; - HD Audio Jacks: Line in / Front Speaker / Microphone
Connectors:- 1 x SPI TPM Header; - 1 x Chassis Intrusion and Speaker Header; - 1 x Addressable LED Header*; - 1 x CPU Fan Connector (4-pin)**; - 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)***; - 1 x 24 pin ATX Power Connector; - 1 x 8 pin 12V Power Connector; - 1 x Front Panel Audio Connector; - 1 x USB 2.0 Header (Supports 2 USB 2.0 ports); - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
Audio:- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
LAN:- Gigabit LAN 10/100/1000 Mb/s; - Realtek 8111H
BIOS:- 128Mb AMI UEFI Legal BIOS with GUI support
Form Factor:- Micro ATX Form Factor: 8.66-in x 7.6-in, 22.0 cm x 19.3 cm
OS:- Microsoft® Windows® 10 64-bit / 11 64-bit
Сайт на производителя:https://www. asrock. com/mb/Intel/H610M-HDVM. 2+%20D5/index. asp#Specification
Разширено търсене:ASROCK H610 2xDDR5 4xSATA3HDMI DP VGA1xM2 GLAN1xPCIEx16 1xPCIEx1
Вижте от къде можете да закупите продукта:
h610m-hdv/m. 2+d5 (4710483943478 / h610m-hdv/m.2+ d5)
H610M-HDV/M. 2+ D5 - motherboard - micro ATX - LGA1700 Socket - H610
Дънна платка ASRock H610M-HDV/M. 2+ D5 LGA1700 (H610M-HDV/M.2+ D5)
Липсва или е неправилен важен параметър? Предоставената информация е само за ориентиране, затова ви съветваме да проверите дали предлаганият продукт има ключовите параметри от които се нуждаете, преди да купите от магазина по ваш избор. Въпреки че се стремим към максимална точност на информацията, за съжаление не можем винаги да гарантираме 100% съответствие. Цените на продуктите са с включен ДДС.
Продуктът все още няма отзиви.
