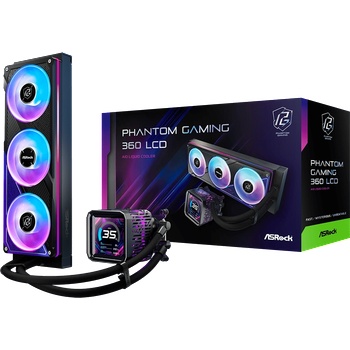

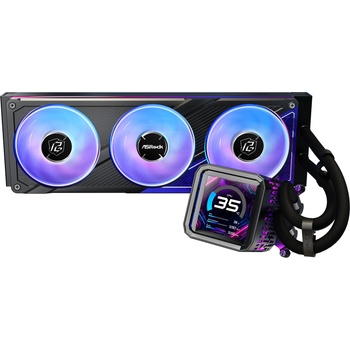

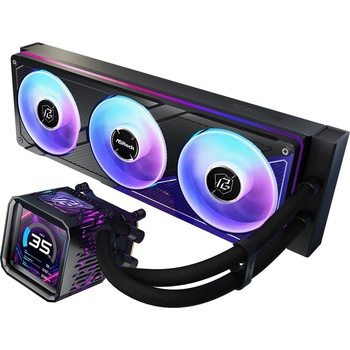

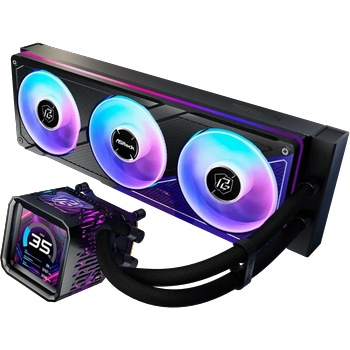

ASRock Phantom Gaming 360 LCD
3.4 Full-Color LCD Display
A 3.4" full-coverage LCD brings your system stats and custom visuals to life in vibrant detail.
480x480 Resolution
60 FPS Frame Rate
24-bit Color Depth
Polychrome display
Combines real-time monitoring with customizable visuals, letting users display system stats, preferred images, or animations — all through an intuitive interface with multi-language support.
Customizable animations
Explore built-in animations or import your own for a fully customized display experience.
Next-Gen Cooling System
Next-Gen Cooling Pump
Precision-engineered structure and automotive-grade components, powered by a 3-phase, 6-slot, 4-pole motor for stronger flow, extended durability, and peak cooling performance for unwavering CPU stability.
Continuous Magnetic Field
Continuous rotating magnetic field for higher energy conversion efficiency.
Low Torque Ripple
Low torque ripple ensures smooth and stable operation.
Balanced Current Load
Balanced current distribution minimizes copper loss.
Reduced Core Loss
Reduced core loss improves overall operating efficiency.
Lower Thermal Output
Lower thermal output maintains efficiency during prolonged operation.
Simplified Motor Architecture
No starting capacitors or coils required, improving reliability.
Dual-Side Inlet Cooling Path
The dual-side inlet cooling path design shortens coolant flow distance while ensuring balanced distribution across the high-density micro-fin array. By delivering coolant directly to the CPU hot spot from multiple directions, the design helps keep temperatures more even and improves overall thermal efficiency.
Targete d Airflow Technology
Integrated ventilation and air-guide design channel airflow directly to heat-critical zones for maximum cooling efficiency.
Striped Ring Fan
The Striped Ring fan design features reinforced blades engineered to optimize airflow across both the VRM module and the radiator, driving high-volume intake to keep power delivery components cool and stable, while generating strong lateral airflow for deep fin penetration and maximum radiator cooling efficiency.
Long-Lasting FDB Fan
Fluid Dynamic Bearing minimizes friction and vibration for whisper-quiet, stable cooling and long service life.
Enhanced Flow & Surface Cooling System
A 32mm-thick radiator maximizes heat dissipation and cooling efficiency, while 7mm reinforced tubing increases coolant volume for superior thermal performance.
0dB Silent Cooling Technology
Fan stops completely under low load for absolute silence and extended lifespan.
Specifications
Compatibility
AMD: AM5, AM4
Intel: LGA1851, 1700

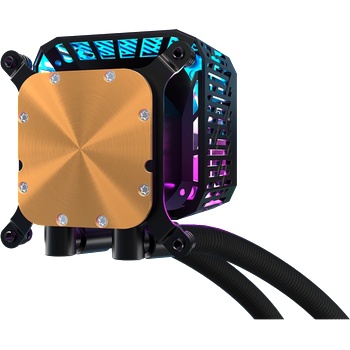

Wa ter Block
Dimension：(L)100.4 x (W)86 x (H)107.6 mm
Material (Cold Plate)：Copper
LEDs ：ARGB
Radiator
Dimension：(L)397 x (W)120 x (H)32 mm
Material：Aluminum
Pump
Speed：1200 - 3100 ± 10% RPM
Current/ Voltage：0.38A/ 12V
Connector：PWM (4-Pin)
VRM Fan
Dimension：(L)70 x (W)70 x (H)25 mm
Speed：(Max. ) 3000 ± 10% RPM
Connector：PWM (4-Pin)
Current/ Voltage：0.12A/ 12V
Rad iator Fan
Dimension：(L)362 x (W)123 x (H)28 mm
Speed：0 - 2400 ± 10% RPM
Air Flow：(Max. ) 61.28 CFM
Air Pressure：(Max. ) 3.11 mmH20
Noise：(Max. ) 31.4 dB(A)
Connector：PWM (4-Pin)
Current/ Voltage：0.84A/ 12V
Bearing：Fluid Dynamic Bearing
LEDs ：ARGB Gen1
Sc reen
Type：IPS LCD
Size：3.4"
Resolution：480 x 480
Display Colors：24-bit
Brightness：250 cd/m2
Refresh Rate：60 Hz
Frames Per Second (FPS)：60 FPS
Connector：USB Type-C to Motherboard 9-Pin
T ubing
Material：IIR + EPDM
Length：450mm
