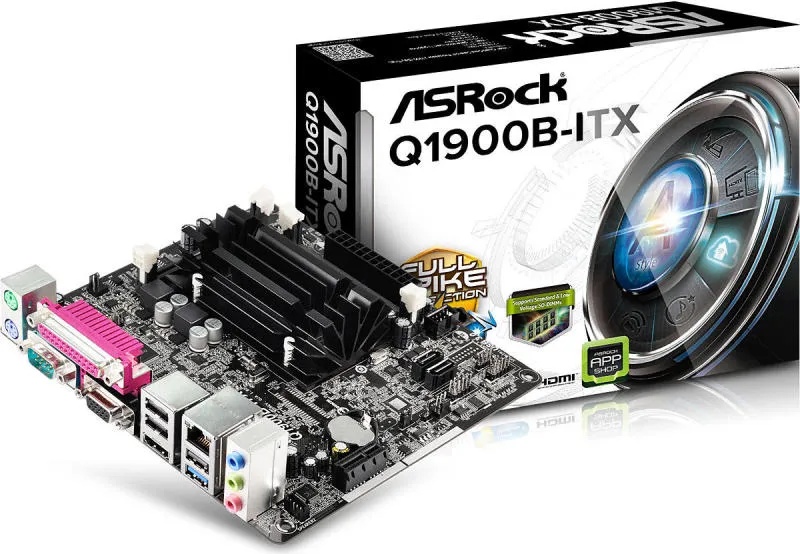

ASRock Q1900B-ITX

ASROCK Q1900B-ITX /J1900 е среден клас дънна платка на компанията Asrock. Тя ще задоволи нуждите на всички потребители, които търсят качествен модел с добри параметри на изгодна цена.

Дънната платка поддържа процесори тип Intel Quad-Core Processor J1900 с работна честота 2 GHz. Има налични 2 SO-DIMM слота за оперативна памет тип DDR3/DDR3L 1333/1066 non-ECC, un-buffered с максимален капацитет 16GB. Моделът притежава слот PCI Express 2.0 x1, а дисковият интерфейс е представен от 2 SATA2 3.0 Gb/s конектори с поддръжка за NCQ, AHCI и Hot Plug.

Наличните портове включват 2 PS/2 порт за мишка и клавиатура, паралелен порт (с поддръжка за ECP/EPP), сериен порт COM1, D-Sub, HDMI, 3 USB 2.0 (с поддръжка за ESD защита), USB 3.0 (с поддръжка за ESD защита). Видеото е Intel 7th generation (Gen 7) graphics, а аудиото - 5.1 CH HD. Интернет връзката е осигурена от PCIE x1 Gigabit LAN 10/100/1000 Mb/s и Realtek RTL8111GR. Технически детайли

Manufacturer:ASROCK
Mnfr Part #:-
Model:Q1900B-ITX
Graphics:- Intel® 7th generation (Gen 7) graphics; - DirectX 11.0, Pixel Shader 5.0; - Dual graphics output: Support HDMI and D-Sub ports by independent display controllers; - Supports HDMI Technology with max. resolution up to 1920x1200 @ 60Hz; - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz; - Supports Auto Lip Sync, xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required); - Supports HDCP with HDMI Port; - Supports Full HD 1080p Blu-ray (BD) playback with HDMI Port.
CPU's supported:Intel® Quad-Core Processor J1900 (2 GHz)
Expansion Slots:1 x PCI Express 2.0 x1 Slot;2 x SATA2 3.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug
Storage:2 x SATA2 3.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug
Memory type:- Dual Channel DDR3/DDR3L Memory Technology; - 2 x DDR3/DDR3L SO-DIMM Slots; - Supports DDR3/DDR3L 1333/1066 non-ECC, un-buffered memory; - Max. capacity of system memory: 16GB*.
I/O:- 1 x Parallel Port (ECP/EPP Support); - 1 x Serial Port: COM1; - 1 x D-Sub Port; - 1 x HDMI Port; - 3 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection)); - 1 x USB 3.0 Port (Supports ESD Protection (ASRock Full Spike Protection)); - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED); - HD Audio Jacks: Line in / Front Speaker / Microphone;- 1 x PS/2 Mouse Port; - 1 x PS/2 Keyboard Port;
Connectors:- 1 x 3W Audio AMP Output Wafer Header; - 1 x COM Port Header; - 1 x TPM Header; - 1 x Chassis Intrusion Header; - 1 x CPU Fan Connector (3-pin); - 1 x Chassis Fan Connector (3-pin); - 1 x 24 pin ATX Power Connector; - 1 x Front Panel Audio Connector; - 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection)).
Audio:5.1 CH HD Audio (Realtek ALC662 Audio Codec) Supports Surge Protection (ASRock Full Spike Protection)
LAN:- PCIE x1 Gigabit LAN 10/100/1000 Mb/s; - Realtek RTL8111GR; - Supports Wake-On-WAN; - Supports Wake-On-LAN; - Supports Lightning/ESD Protection (ASRock Full Spike Protection); - Supports LAN Cable Detection; - Supports Energy Efficient Ethernet 802.3az; - Supports PXE.
BIOS:- 64Mb AMI UEFI Legal BIOS with GUI support; - Supports Plug and Play; - ACPI 5.0 Compliant wake up events; - Supports jumperfree; - SMBIOS 2.7 Support.
Form Factor:Mini-ITX
OS:Microsoft® Windows® 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit
Other:-
Сайт на производителя:https://www. asrock. com
