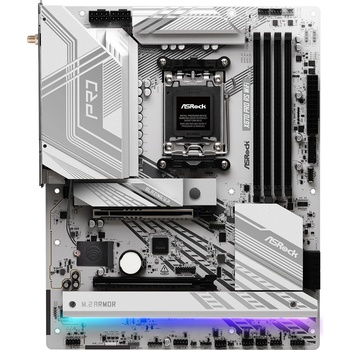

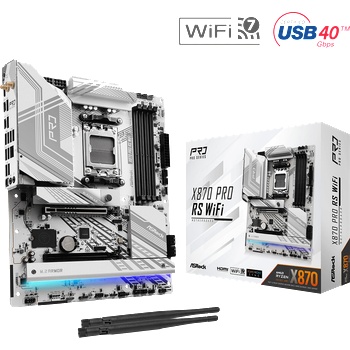

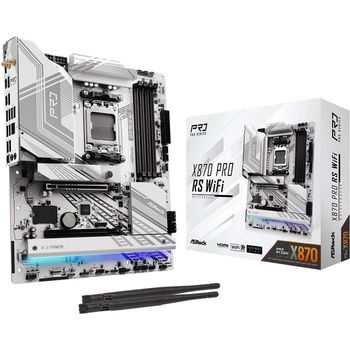

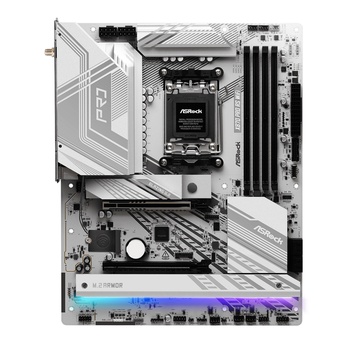

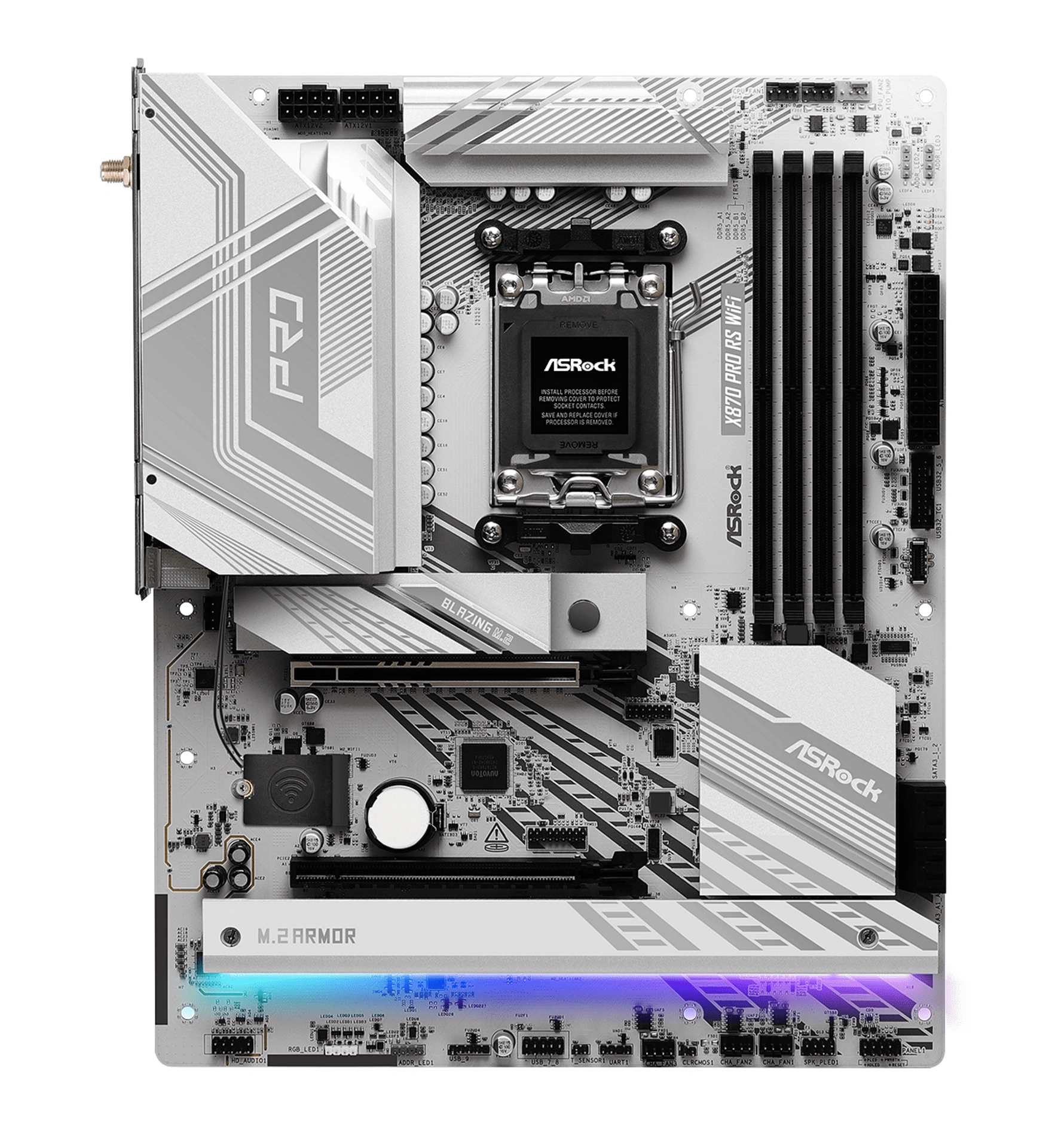

ASRock X870 PRO RS WIFI

Product SpecificationsParameter NameParameter OptionProduct TagVID-03Product ID70307UID62870ManufacturerASROCKPart NumberX870 PRO RS WIFI / X870 PRO RS WIFIManufacturerASRockWireless- 802.11be 2x2 Wi-Fi 7 Module;- Supports IEEE 802.11a/b/g/n/ac/ax/axe/be;- Supports 2.4GHz/5GHz/6GHz* frequency band;- Supports 160MHz channel bandwidth with 6GHz* frequency band;- 1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology;- Supports Bluetooth 5.4;- Supports MU-MIMOMemory type- Dual Channel DDR5 Memory Technology;- 4 x DDR5 DIMM Slots;- Supports DDR5 ECC/non-ECC, un-buffered memory up to 8000+(OC);- Max. capacity of system memory: 256GB;- Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modulesFeaturesSuperb Productivity;- PCIe Gen5 (Graphics, M. 2);- Dual Channel DDR5;- USB4 Type-C Ports (40 Gb/s);Rock-Solid Durability;- 14+2+1 Power Phase, 80A Dr. MOS for VCore+SOC+MISC with Enlarged Heatsink Armor;- Flexible Integrated I/O Shield;Ultrafast Connectivity;- 2.5G LAN, 802.11be Wi-Fi 7 Module;EZ Update;- BIOS Flashback Button;- ASRock Auto Driver Installer;EZ TroubleshooterCPU's supportedSupports AMD Socket AM5 Ryzen 9000, 8000 and 7000 Series ProcessorsChipsetAMD X870GraphicsIntegrated AMD RDNA graphics (Actual support may vary by CPU);- 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz;- 2 x USB4, support HDCP 2.3 and max. resolution up to 8K 30HzExpansion SlotsCPU;- 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode;Chipset;- 1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode;- 1 x M. 2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module;- Supports AMD CrossFire;- 15μ Gold Contact in VGA PCIe Slot (PCIE1)StorageCPU;- 1 x Blazing M. 2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode* Chipset;- 1 x Hyper M. 2 Socket (M2_2, Key M), supports type 2230/2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode;- 1 x Ultra M. 2 Socket (M2_3, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes;- 2 x SATA3 6.0 Gb/s Connectors ASMedia ASM1061;- 2 x SATA3 6.0 Gb/s Connectors;- Supports RAID 0 and RAID 1 for SATA storage devices;- Supports RAID 0, RAID 1 and RAID 10 for M. 2 NVMe storage devicesI/OCPU;- 2 x USB4 Type-C (Rear);- 2 x USB 3.2 Gen1 Type-A (Rear (USB32_1 and USB32_2));Chipset:;- 1 x USB 3.2 Gen2x2 Type-C (Front);- 4 x USB 3.2 Gen1 Type-A (2 Rear (USB32_3 and USB32_4), 2 Front);- 9 x USB 2.0 (6 Rear, 3 Front);- 2 x Antenna Ports;- 1 x HDMI Port;- 1 x Optical SPDIF Out Port;- 2 x USB4 Type-C Ports (40 Gb/s);- 4 x USB 3.2 Gen1 Type-A Ports;- 6 x USB 2.0 Ports;- 1 x RJ-45 LAN Port;- 1 x BIOS Flashback Button;- 1 x Line Out Jack (Gold Audio Jack);- 1 x Microphone Input Jack (Gold Audio Jack)Connectors- 1 x Thermistor Cable Header;- 1 x Power LED and Speaker Header;- 1 x RGB LED Header;- 3 x Addressable LED Headers;- 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control);- 4 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control);- 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control);- 1 x 24 pin ATX Power Connector;- 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector);- 1 x Front Panel Audio Connector;- 2 x USB 2.0 Headers (Support 3 USB 2.0 ports);- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports);- 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)Audio- 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec);- Impedance Sensing on Rear Out port;- Individual PCB Layers for R/L Audio Channel;- Nahimic AudioLAN- 2.5 Gigabit LAN 10/100/1000/2500 Mb/s;- Dragon RTL8125BG;- Supports Dragon 2.5G LAN Software;- Smart Auto Adjust Bandwidth Control;- Visual User Friendly UI;- Visual Network Usage Statistics;- Optimized Default Setting for Game, Browser, and Streaming Modes;- User Customized Priority ControlBIOS256Mb AMI UEFI Legal BIOS with GUI supportForm Factor- ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm;- 8 Layer PCBOSMicrosoft Windows® 10 64-bit / 11 64-bit;Software;- ASRock Motherboard Utility (A-Tuning);- ASRock Dragon 2.5G LAN Software;- ASRock Polychrome SYNC;UEFI;- ASRock EZ Mode;- ASRock Full HD UEFI;- ASRock Auto Driver Installer;- ASRock Instant FlashWarranty36 Months

22-04-2025 11:58:13 PM

Parnum: - 802.11be 2x2 Wi-Fi 7 Module;- Supports IEEE 802.11a/b/g/n/ac/ax/axe/be;- Supports 2.4GHz/5GHz/6GHz* frequency band;- Supports 160MHz channel bandwidth with 6GHz* frequency band;- 1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology;- Supports Bluetooth 5.4;- Supports MU-MIMO
