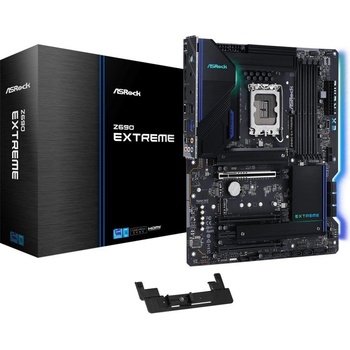

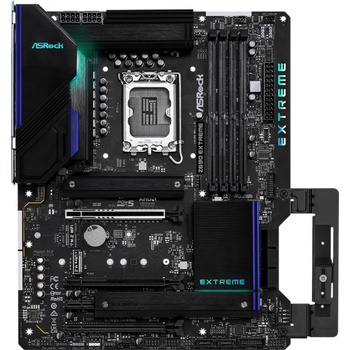

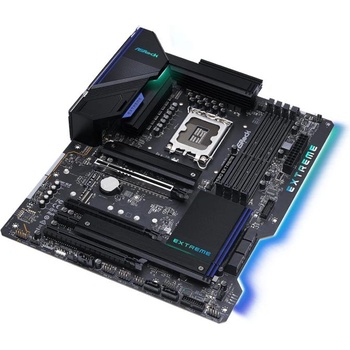

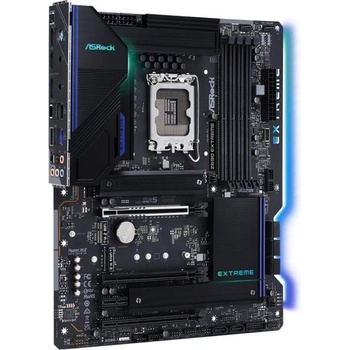

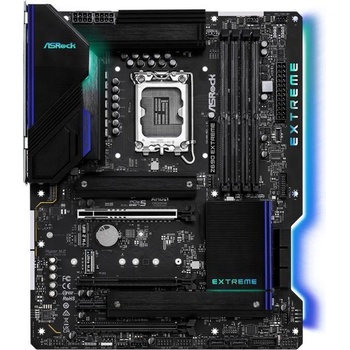

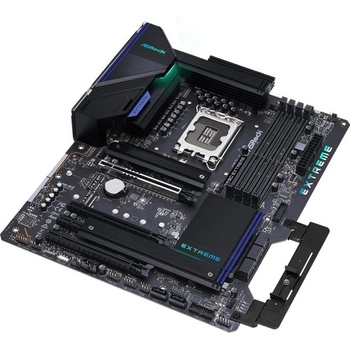

ASRock Z690 EXTREME

Допълнителни снимки на продукта:

Снимка 1 Снимка 2 Снимка 3 Снимка 4 Снимка 5 Снимка 6
Дънна платка ASRock Z690 Extreme, LGA1700, ATX, Polychrome RGB

CPU Socket: 1700
Чипсет: Intel Z690
Поддържани процесори: Supports 12th Gen Intel® Core Processors (LGA1700)
Форм фактор: ATX
Поддърж на памет: DDR4
Максима лен капацитет RAM памет: 128 GB
Слотове памет: 4
Честота памет: Supports DDR4 non-ECC, un-buffered memory up to 5000+(OC)
Поддръжк на Dualchannel: Да
Графичн а карта: Intel® Xe Graphics Architecture (Gen 12)
Вградено аудио: 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
Вграден LAN: 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Dragon RTL8125BG)
Вграден Wi-Fi: 802.11ax Wi-Fi 6E
Слотoве PCI-E x16: 1 x PCIe 3.0 x16
Слотoве PCI-E x16: 1 x PCIe 4.0 x16
Слотoве PCI-E x16: 1 x PCIe 5.0 x16
Слотoве PCI-E x1: 1
Интерфей Serial ATA: 8 x SATA3 6.0 Gb/s
М2 слот: 1 x Hyper M. 2 Socket (M2_3, Key M), supports type 2242/2260/2280/22110 PCIe Gen4x4 (64 Gb/s) mode
М2 слот: Supports Intel® Optane Technology
М2 слот: 1 x Hyper M. 2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode
М2 слот: 1 x Ultra M. 2 Socket (M2_2, Key M), supports type 2230/2242/2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes
Поддръжка на RAID: 0, 1, 5, 10
Конектор захранване: 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
Конектор захранване: 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
Видео слот: PCI Express
Мулти GPU технология: Supports AMD Quad CrossFireX and CrossFireX
Свързано ст: - 2 x Antenna Ports - 1 x PS/2 Mouse/Keyboard Port - 1 x HDMI Port - 1 x DisplayPort 1.4 - 1 x Optical SPDIF Out Port - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (ReDriver) (Supports ESD Protection) - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (ReDriver) (Supports ESD Protection) - 4 x USB 3.2 Gen1 Ports (Supports ESD Protection)* - 2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED) - 1 x BIOS Flashback Button - HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)
USB Type-C: 1
USB 3.2: 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (ReDriver) (Supports ESD Protection)
USB 3.2: 4 x USB 3.2 Gen1 Ports (Supports ESD Protection)
Размери: 30.5 cm x 24.4 cm
Поддържани технологии: Software - ASRock Motherboard Utility (A-Tuning) - ASRock Dragon 2.5G LAN Software - ASRock Polychrome SYNC* UEFI - ASRock EZ Mode - ASRock Full HD UEFI - ASRock My Favorites in UEFI - ASRock Auto Driver Installer - ASRock Instant Flash - ASRock Internet Flash - ASRock Easy RAID Installer
Комплект т включва: - Quick Installation Guide, Support CD - 4 x SATA Data Cables - 1 x ASRock WiFi 2.4/5/6 GHz Antenna - 3 x Screws for M. 2 Sockets - 2 x Standoffs for M. 2 Sockets - 1 x Graphics Card Holder
Други: 256Mb AMI UEFI Legal BIOS with multilingual GUI support

Дънна платка ASRock Z690 Extreme, LGA1700, ATX, Polychrome RGB

Z690 Extreme

• Supports 12th Gen Intel ®  Core Processors (LGA1700)
• 13 Phase SPS Dr. MOS Power Design
• Supports DDR4 5000MHz (OC)
• 1 PCIe 5.0 x16, 1 PCIe 4.0 x16, 1 PCIe 3.0 x16, 1 PCIe 3.0 x1
• Graphics Output Options: HDMI, DisplayPort
• Realtek ALC1220 7.1 CH HD Audio Codec, Nahimic Audio
• 8 SATA3
• 2 Hyper M. 2 (PCIe Gen4 x4)
  1 Ultra M. 2 (PCIe Gen3 x4 & SATA3)
• 1 USB 3.2 Gen2x2 Front Type-C
  2 USB 3.2 Gen2 (Rear Type A+C)
  8 USB 3.2 Gen1 (4 Rear, 4 Front)
• Dragon 2.5G LAN, Intel ®  Gigabit LAN
• ASRock Graphics Card Holder



.                           500
