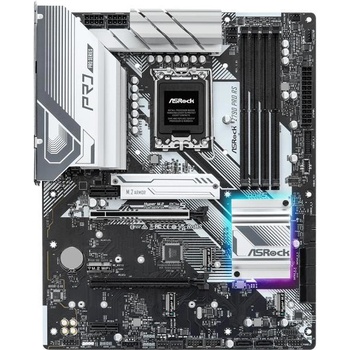

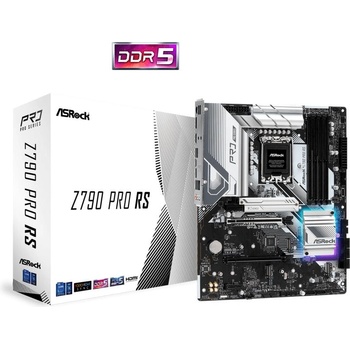

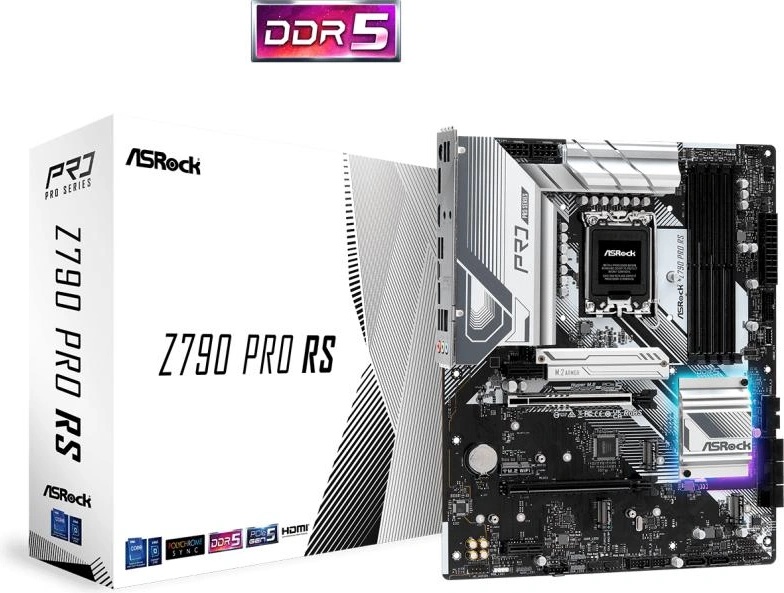

ASRock Z790 PRO RS

DescriptionZ790 PRO RS motherboard

• Supports 13th and 12th generation Intel Core processors
• 14+1+1 phase power design, Dr. MOS for VCore+GT
• 4 x DDR5 DIMM, supports up to 6800+(OC)
• 1 PCIe 5.0 x16, 1 PCIe 4.0 x16, 2 PCIe 3.0 x1, 1 M. 2 Key-E for Wi-Fi
• Graphics output options: 1 HDMI, 1 DisplayPort, eDP
• 7.1-channel HD audio (Realtek ALC897 audio codec), Nahimic Audio
• 4 Hyper M. 2 (PCIe Gen4x4), 8 SATA3
• 1 USB 3.2 Gen2 Type-C (Front), 1 USB 3.2 Gen2 Type-C (Rear), 1 USB 3.2 Gen2 Type-A (Rear), 6 USB 3.2 Gen1 (2 Rear, 4 Front), 8 USB 2.0 (4 Rear, 4 Front)
• Realtek 2.5G LAN

Model:Z790 Pro RSCPU socket:LGA1700Processor family:Intel CoreIntegrated CPU:NoChipset manufacturer:IntelChipset type:Intel Z790Memory type:DDR5Number of DDR5 slots:4Memory bus frequency:6800 MHzMax memory size:128 GBExpansion slots:2 x PCIe 3.0 x 1
1 x PCIe 4.0 x 16
1 x PCIe 5.0 x 16
1 x M. 2Max. number of SATA devices:8Max. number of ATA devices:0RAID:YesDetailed data on disk/drive interfaces:CPU:

• 1 x Hyper M. 2 slot (M2_1, Key M), supports 2260/2280 PCIe Gen4x4 (64 Gbps) mode*.

Chipset:

• 1 x Hyper M. 2 slot (M2_2, Key M), supports 2260/2280 PCIe Gen4x4 (64 Gbps) mode*.
• 1 x Hyper M. 2 slot (M2_3, Key M), supports 2260/2280 PCIe Gen4x4 (64 Gb/s)* mode
• 1 x Hyper M. 2 slot (M2_4, Key M), supports 2260/2280 PCIe Gen4x4 (64 Gb/s)* mode
• 8 x SATA3 6.0Gb/s connectors

*Supports Intel Volume Management Device (VMD) Supports NVMe SSD as bootable drivesGraphics:

• Intel Xe graphics architecture (Gen 12)
• 1 x eDP 1.4, supports max. resolution up to Full HD 60Hz
• 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz
• 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz

*Intel UHD Graphics Built-in Visuals and VGA outputs can only be supported with GPU-integrated processors. Sound card:

• 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
• Nahimic Audio

Network interface:1 x 10/100/1000/2500 Mbit/sNetwork interface:

• 2.5 Gigabit LAN 10/100/1000/2500 Mbps
• Dragon RTL8125BG
• Supports Dragon 2.5G LAN software
• Intelligent automatic bandwidth adjustment
• Visual user-friendly user interface
• Visual network usage statistics
• Optimised default settings for game, browser and streaming modes
• User customisable priority control

USB ports at back panel:8USB ports on motherboard:10Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports:6Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports:3FireWire (IEEE 1394):NoCOM connector / port:NoLPT connector / port:NoExternal connectors:1 x HDMI
1 x PS/2 Keyboard/MouseCombo
4 x USB 2.0
1 x USB 3.1 Type-C
1 x USB 3.1
2 x USB 3.0
1 x Line In
1 x Line Out
1 x MIC
1 x RJ-45
1 x DisplayPortOnboard connectors:1 x 4pin CPU fan
1 x TPM header
1 x Front panel audio header
2 x 8pin 12V
1 x 24pin ATX zasilanie
2 x USB 2.0/1.1 header
2 x USB 3.0 header
1 x USB C
1 x 4-pin water-pump-fan
1 x Thunderbolt headerBIOS:128Mb AMI UEFI Legal BIOS with GUI supportForm factor:ATXDimensions:30.5 x 24.4 cmAccessories included:

• 1 x user manual
• 2 x SATA data cables
• 5 x Screws for M. 2 sockets
• 1 x Bracket for M. 2 socket

Supported operating systems:Windows 10
Windows 11Software:Software

• ASRock Motherboard Utility (A-Tuning)
• ASRock Dragon 2.5G LAN Software
• ASRock Polychrome SYNC*

UEFI

• ASRock EZ Mode
• ASRock Full HD UEFI
• ASRock My Favorites in UEFI
• ASRock Auto Driver Installer
• ASRock Instant Flash
• ASRock Easy RAID Installer
