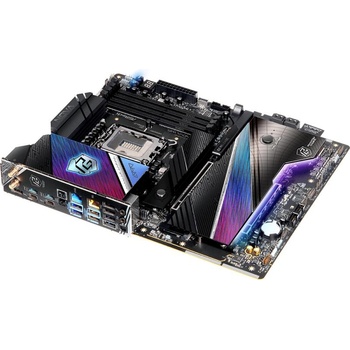

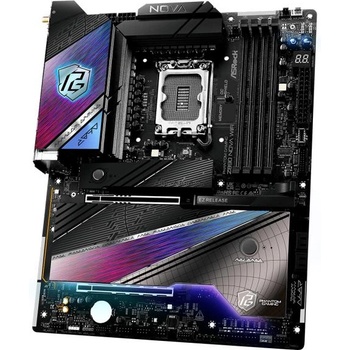

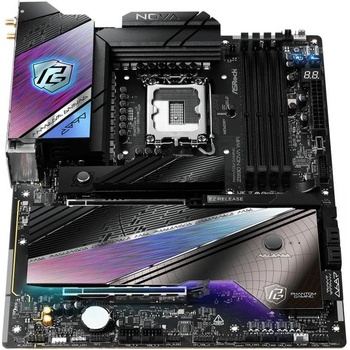

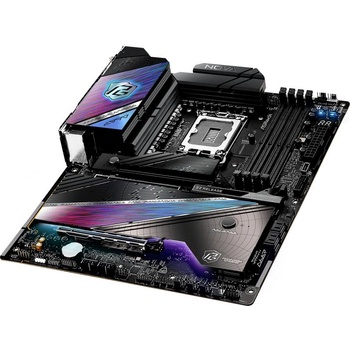

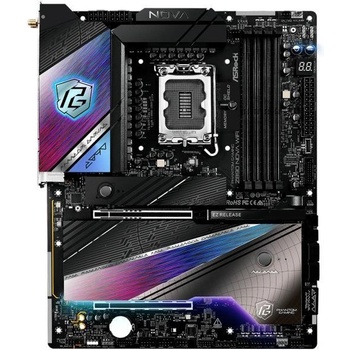

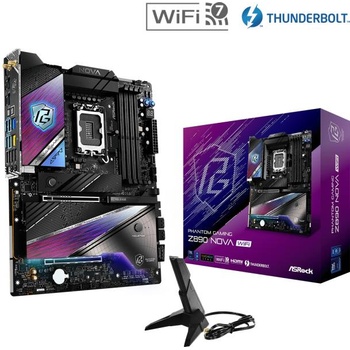

ASRock Z890 NOVA WIFI

Допълнителни снимки на продукта:

Снимка 1 Снимка 2 Снимка 3 Снимка 4
ASROCK Z890 NOVA WIFI

USB: CPU:;- 2 x Thunderbolt 4/USB4 Type-C (Rear);Chipset:;- 1 x USB 3.2 Gen2x2 Type-C (Front);- 4 x USB 3.2 Gen2 Type-A (Rear);- 8 x USB 3.2 Gen1 (4 Rear, 4 Front);- 6 x USB 2.0 (2 Rear, 4 Front)
Manufacturer: ASRock
Wireless: 802.11be 2x2 Wi-Fi 7 Module;Supports IEEE 802.11a/ b/ g/ n/ ac/ ax/ axe/ be;Supports 2.4GHz/5GHz/6GHz* frequency band;Supports 320MHz channel bandwidth with 6GHz* frequency band;1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology;Supports Bluetooth 5.4;Supports MU-MIMO
Memory type: Dual Channel DDR5 Memory Technology; 4 x DDR5 DIMM Slots; Supports DDR5 non-ECC, un-buffered memory up to 9600MHz+(OC); Supports Clocked Unbuffered DIMM (CUDIMM); Max. capacity of system memory: 256GB; Supports Intel® Exclusive Memory Profile (XMP) 3.0x
Features: Superior Performance;-PCIe Gen5 (Graphics, M. 2);- Dual Channel DDR5;- USB4 Thunderbolt 4/USB4 Type-C Ports (40 Gb/s);- Solid Durability;- Server-Grade Low-Loss PCB;- 20+1+2+1+1 Power Phase, 110A SPS for VCore with Increased Heatsink Armor;- Memory OC Shield;- Flexible Integrated I/O Shield;- 20K Long-Life Black Caps (High-Quality and Conductive Polymer Capacitors);- Ultra-Fast Gaming;- 5G LAN, Killer 2.5G LAN, 802.11be Wi-Fi 7 Module;- ASRock Lightning Gaming Ports;EZ Update;- BIOS Flashback Button;- ASRock Automatic Driver Installer
CPU's supported: Supports Intel® Core Ultra Processors (Series 2) (LGA1851RL-ILM);Supports Intel® Hybrid Technology;Supports Intel® Turbo Boost Max 3.0 Technology;Supports Intel® Thermal Boost (TVB);Supports Intel® Adaptive Boost Technology (ABT);Integrated NPU for dedicated AI acceleration;Supports ASRock Hyper BCLK Engine
Chipset: Intel® Z890
Bluetooth: 5.4
Graphics: Intel® Xe LPG Graphics Architecture;1 x HDMI 2.1 TMDS/FRL 8G compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz;2 x Intel® Thunderbolt 4, support HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
Expansion Slots: CPU:;- 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode;Chipset:;- 1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode;- 1 x M. 2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
Storage: CPU:;- 1 x Blazing M. 2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode;- 1 x Hyper M. 2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode;Chipset:;- 1 x Hyper M. 2 Socket (M2_3, Key M), supports type 2230/2242/2260/2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes;- 1 x Hyper M. 2 Socket (M2_4, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode;- 1 x Hyper M. 2 Socket (M2_5, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode;- 1 x Hyper M. 2 Socket (M2_6, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode;- 4 x SATA3 6.0 Gb/s Connectors;Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices;Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M. 2 NVMe storage devices
I/O: 2 x Antenna Ports;1 x HDMI Port;1 x Optical SPDIF Out Port;2 x Thunderbolt 4/USB4 Type-C Ports (40 Gb/s);4 x USB 3.2 Gen2 Type-A Ports (10 Gb/s);4 x USB 3.2 Gen1 Ports;2 x USB 2.0 Ports;2 x RJ-45 LAN Ports;1 x Clear CMOS Button;1 x BIOS Flashback Button;1 x Line Jack (Gold Audio Jack);1 x Microphone input jack (Gold Audio Jack)
Connectors: 3 x Thermistor Cable Headers;1 x SPI TPM Header;1 x Power LED and Speaker Header;1 x RGB LED Header;3 x Addressable LED Headers;2 x CPU Fan Connector (4-pin) (Smart Fan Speed Control);4 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control);1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control);1 x Water Pump Fan Connector (4-pin) (Smart Fan Speed Control);1 x 24 pin ATX Power Connector (Hi-Density Power Connector);2 x 8 pin 12V Power Connectors (Hi-Density Power Connector);1 x Front Panel Audio Connector (15? Gold Audio Connector);2 x USB 2.0 Headers (Support 4 USB 2.0 ports);2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports);1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s);1 x Dr. Debug with LED;1 x Power Button with LED;1 x Reset Button with LED
Audio: 7.1 CH HD Audio with Content Protection (Realtek ALC4082 Audio Codec);Individual PCB Layers for R/L Audio Channel;Impedance Sensing on Rear Out port;nahimic audio
LAN: 1 x 5 Gigabit LAN 10/100/1000/2500/5000 Mb/s (Realtek RTL8126);1 x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Killer E3100G);Supports Killer LAN Software
BIOS: 256Mb AMI UEFI Legal BIOS with GUI support
Form Factor: ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm;8 Layer PCB;2oz Copper PCB
OS: Microsoft® Windows® 11 64-bit



.
