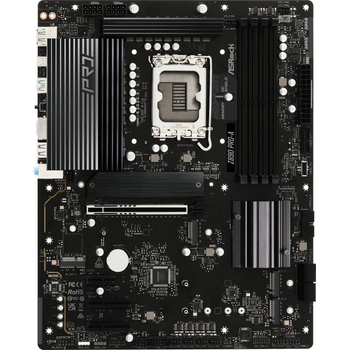

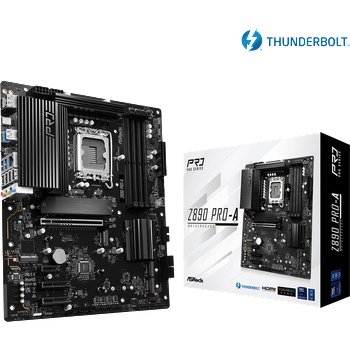

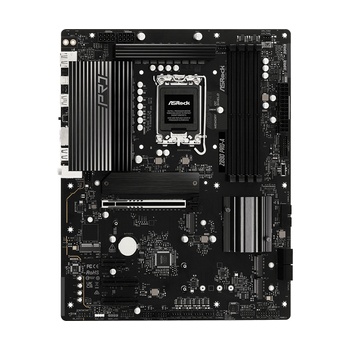

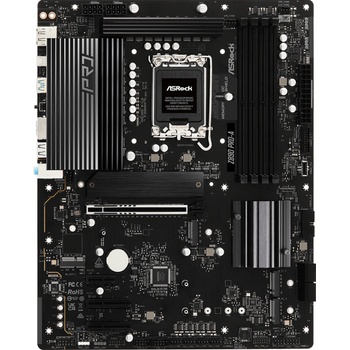

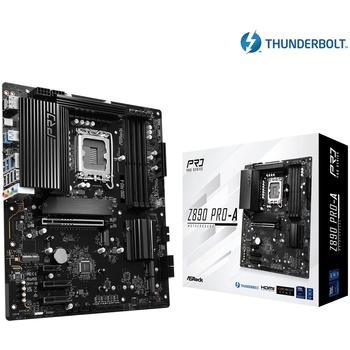

ASRock Z890 Pro-A

Product SpecificationsParameter NameParameter OptionProduct TagVID-03Product ID70311UID62874ManufacturerASROCKPart NumberZ890 PRO-A / Z890 PRO-AManufacturerASRockMemory type- Dual Channel DDR5 Memory Technology;- 4 x DDR5 DIMM Slots;- Supports DDR5 non-ECC, un-buffered memory up to 9066MHz+(OC)*;- Supports Clocked Unbuffered DIMM (CUDIMM);- Max. capacity of system memory: 256GB;- Supports Intel® Extreme Memory Profile (XMP) 3.0xFeaturesSuperb Productivity;- PCIe Gen5 (Graphics, M. 2);- Dual Channel DDR5;- Thunderbolt 4 Type-C Port (40 Gb/s);Rock-Solid Durability;- 16+1+1+1+1 Power Phase, Dr. MOS for VCore+GT;- Memory OC Shield;Ultrafast Connectivity;- 2.5G LAN;EZ Update;- BIOS Flashback Button;- ASRock Auto Driver Installer;EZ TroubleshooterCPU's supported- Supports Intel® Core Ultra Processors (Series 2) (LGA1851RL-ILM);- Supports Intel® Hybrid Technology;- Supports Intel® Turbo Boost Max 3.0 Technology;- Supports Intel® Thermal Velocity Boost (TVB);- Supports Intel® Adaptive Boost Technology (ABT);- Integrated NPU for dedicated AI accelerationChipsetIntel® Z890Graphics- Intel® Xe LPG Graphics Architecture;- 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz;- 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz;- 1 x Intel® Thunderbolt 4, supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120HzExpansion SlotsCPU;- 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode;Chipset;- 2 x PCIe 4.0 x4 Slots (PCIE3 and PCIE4), support x4 mode;- 1 x PCIe 4.0 x1 Slot (PCIE2);- 1 x M. 2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT)StorageCPU;- 1 x Blazing M. 2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode;- 1 x Hyper M. 2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode;Chipset;- 1 x Hyper M. 2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode;- 1 x Hyper M. 2 Socket (M2_4, Key M), supports type 2230/2242/2260/2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes;- 4 x SATA3 6.0 Gb/s Connectors;- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices;- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M. 2 NVMe storage devicesI/OCPU;- 1 x Thunderbolt 4 Type-C (Rear);- 1 x USB 3.2 Gen2x2 Type-C (Rear) Chipset:;- 1 x USB 3.2 Gen2x2 Type-C (Front);- 1 x USB 3.2 Gen2 Type-A (Rear);- 6 x USB 3.2 Gen1 (2 Rear, 4 Front);- 8 x USB 2.0 (4 Rear, 4 Front);- 2 x Antenna Mounting Points;- 1 x HDMI Port;- 1 x DisplayPort 1.4;- 1 x Thunderbolt 4 Type-C Port (40 Gb/s for USB4 protocol; 40Gb/s for Thunderbolt protocol)*;- 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s);- 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s);- 2 x USB 3.2 Gen1 Ports;- 4 x USB 2.0 Ports;- 1 x RJ-45 LAN Port;- 1 x BIOS Flashback Button;- HD Audio Jacks: Line in / Front Speaker / MicrophoneConnectors- 1 x SPI TPM Header;- 1 x Power LED and Speaker Header;- 1 x RGB LED Header;- 3 x Addressable LED Headers;- 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control);- 5 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control);- 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control);- 1 x 24 pin ATX Power Connector;- 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector);- 1 x Front Panel Audio Connector;- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports);- 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports);- 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)Audio7.1 CH HD Audio (Realtek ALC897 Audio Codec)LAN- 2.5 Gigabit LAN 10/100/1000/2500 Mb/s;- Dragon RTL8125BG;- Supports Dragon 2.5G LAN Software;- Smart Auto Adjust Bandwidth Control;- Visual User Friendly UI;- Visual Network Usage Statistics;- Optimized Default Setting for Game, Browser, and Streaming Modes;- User Customized Priority ControlBIOS256Mb AMI UEFI Legal BIOS with GUI supportForm Factor- ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm;- 2oz Copper PCBOSMicrosoft Windows® 11 64-bit;Software;- ASRock Motherboard Utility (A-Tuning);- ASRock Dragon 2.5G LAN Software;- ASRock Polychrome SYNC;UEFI;- ASRock EZ Mode;- ASRock Full HD UEFI;- ASRock My Favorites in UEFI;- ASRock Auto Driver Installer;- ASRock Instant FlashWarranty36 Months

22-04-2025 11:58:13 PM

Parnum: - Dual Channel DDR5 Memory Technology;- 4 x DDR5 DIMM Slots;- Supports DDR5 non-ECC, un-buffered memory up to 9066MHz+(OC)*;- Supports Clocked Unbuffered DIMM (CUDIMM);- Max. capacity of system memory: 256GB;- Supports Intel® Extreme Memory Profile (XMP) 3.0x
