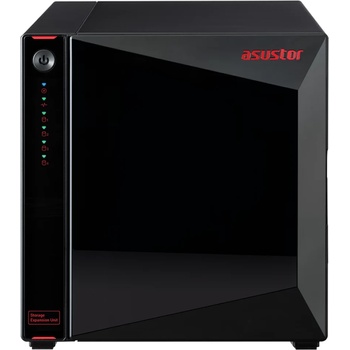

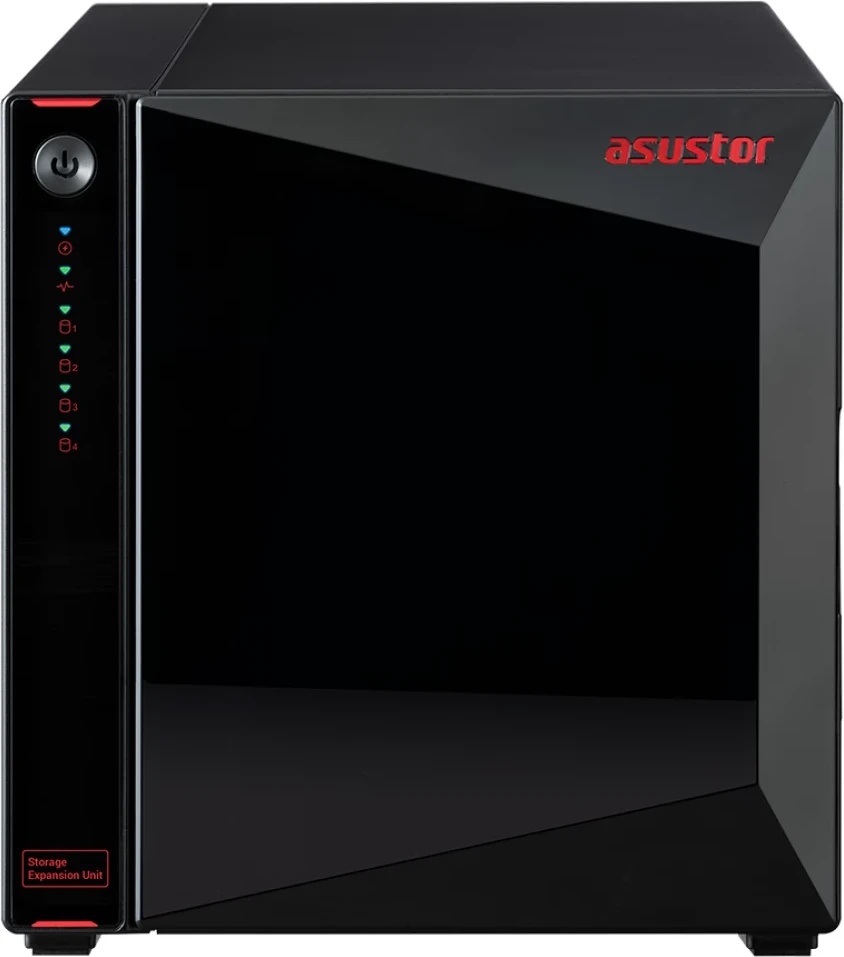

ASUS ASUSTOR XPANSTOR 4 AS5004U

Asustor Xpanstor AS5004U

Faster and Easier!

The all-new Xpanstor 4 adopts USB 3.2 Gen 2 with a Type-C socket. USB 3.2 Gen 2 transfers files even faster with the ability to transfer of up to 10 Gbps. The Xpanstor is also backward compatible with ASUSTOR NAS devices that support USB 3.2 Gen 1 and will operate at the 5 Gbps maximum those devices support. Use the Xpanstor to expand the capacity of your NAS to grow your workflow as needed.

Hardw are Specifications

• Flash Memory: 32MB Flash
• Expansion: USB 3.2 Gen 2 (10Gbps) Type C
• HDD: 4 x SATA3 6Gb/s; 3.5"/2.5" HDD/SSD
• Maximum Internal Raw Capacity: 88 TB  (22 TB HDD x 4, Capacity may vary by RAID types)
• Supports Hot Swappable Drives
• System Fan: 120mm x1
• Power Supply Unit / Adapter: 90W x1

• Input Power Voltage: 100V to 240V AC



Oper ation

• Power Consumption:
  • Operation: 24.68 W
  • Disk Hibernation: 6.02 W
• Operation Temperature: 0°C~40°C (32°F~104°F)
• Humidity: 5% to 95% RH

Size and Weight

• Size: 174(W)x170(H)x230(D) mm
• Weight: 2.03 kg

Software & Features

Operatin g System

• ADM 4.2. 4 Onwards

Fil e System

• Internal Disk: EXT4, Btrfs

Stora ge Management

• Support Multiple Volumes with Spare Drives
• Volume Type: Single, JBOD, RAID 0, RAID 1, RAID 5, RAID 6, RAID 10
• Support for Online RAID Level Migration
• Support for RAID Capacity Expansion

M yArchive

• Hot swappable design enables easy transfer or exchange of high amounts of data
• Up to 4 bays reserved for MyArchive docking purposes
• File system support: EXT4, NTFS, HFS+, Btrfs and exFAT
• Supports AES 256-bit encryption on EXT4 and Btrfs
• Supports Btrfs snapshots
• Supports decryption with a USB key
