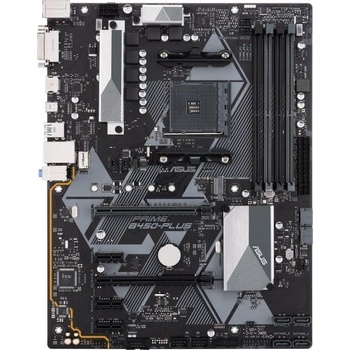

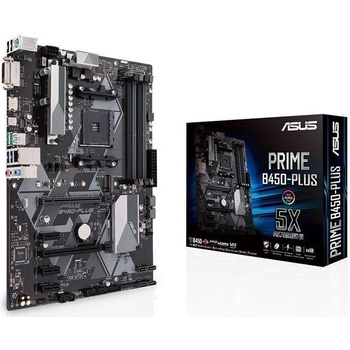

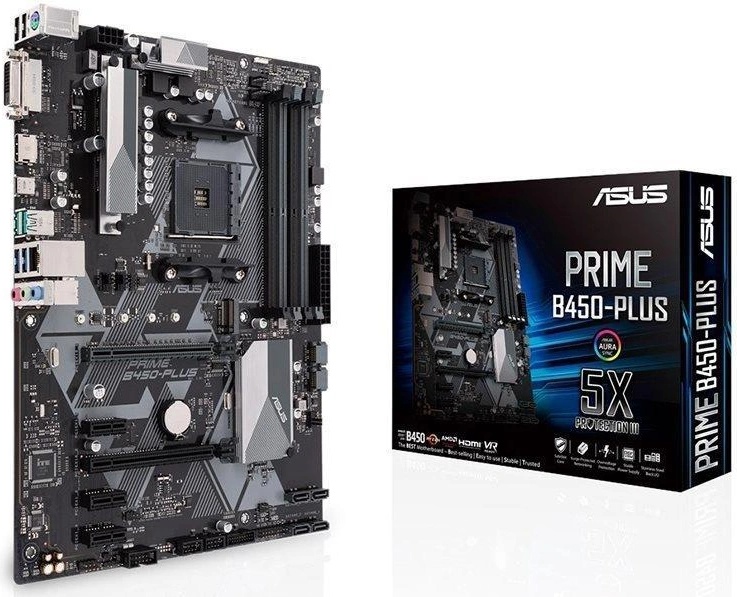

ASUS PRIME B450-PLUS

ASUS PRIME B450-PLUS е дънна платка за вашата компютърна конфигурация. Платформата, която поддържа моделът е AMD, със AM4 сокет. Дъното работи с рам памет тип DDR4 и е съвместимо с операционна система Windows 10.
Характеристики:

Платформа: AMD
Чипсет: AMD B450
Размер: ATX (30.5 x 23.4 см)
Сокет: AM4 за AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3rd/2nd/1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics процесори
Поддържана операционна система: Windows 10/7

Слотове за памет:

Брой слотове: 4 x DIMM DDR4
Максимален капацитет на паметта: 238GB
Поддържа: 4400(O. C)/3466(O. C. )/3200(O. C. )/3000(O. C. )/2800(O. C. )/2666/2400/2133 MHz
Небуферирана памет
Двуканална архитектура на паметта
Поддръжката на ECC памет (ECC режим) варира според процесора.

Слотове за съхранение:

1 x M. 2 slots
4 x SATA 6Gb/s ports3rd/2nd/1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics1 x M. 2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)AMD Athlon with Radeon Vega Graphics Processors:1 x M. 2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA mode)3rd/2nd/1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors:2 x SATA 6Gb/s port(s)Support Raid 0, 1, 10AMD B450 chipset4 x SATA 6Gb/s port(s), Support Raid 0, 1, 10

Разширителни слотове:
3rd/2nd/1st Gen AMD Ryzen Processors1 x PCIe 3.0/2.0 x16 (x16 mode)2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors1 x PCIe 3.0/2.0 x16 (x8 mode)AMD Athlon with Radeon Vega Graphics Processors1 x PCIe 3.0/2.0 x16 (x4 mode)AMD B450 chipset1 x PCIe 2.0 x16 (max at x4 mode)3 x PCIe 2.0 x1
Вътрешни конектори:

1 x Aura RGB Strip Header
1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M. 2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
6 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
3 x Chassis Fan connector(s) (3 x 4 -pin)
1 x AIO_PUMP connector (1 x 4 -pin)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x Clear CMOS jumper(s)
1 x COM port header

Характеристики на аудиото:

Realtek ALC887/897 7.1 8-канален High Definition Audio CODEC
LED-illuminated design
Премиум аудио кондензатори
Dedicated audio PCB layers
Audio Shielding

Портове заден панел:

1 x PS/2 keyboard/mouse combo port(s)
1 x DVI-D
1 x HDMI
1 x LAN (RJ45) port(s)
1 x 5Gb/s port(s) USB Type-CTM
2 x USB 3.1 Gen 2 (teal blue)Type-A,
2 x USB 3.1 Gen 1 (blue) Type-A
2 x USB 2.0
3 x Аудио жакове

Специални функции:

ASUS 5X PROTECTION III:ASUS SafeSlot Core: Fortified PCIe Slot prevents damageASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!ASUS Overvoltage Protection: World-class circuit-protecting power designASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!ASUS DIGI+ VRM: Premium components provide better power efficiency
ASUS Exclusive Features:AI Suite 3Ai ChargerPC CleanerFile Transfer
ASUS Quiet Thermal SolutionStylish Fanless Design Heat-sink solution & MOS HeatsinkASUS Fan Xpert 4 Core
ASUS EZ DIY: ASUS CrashFree BIOS 3 ASUS EZ Flash 3  ASUS UEFI BIOS EZ Mode
ASUS Q-Design:ASUS Q-SlotASUS Q-DIMM
Overclocking Protection:ASUS C. P. R. (CPU Parameter Recall)

BIOS:

128 Mb Flash ROM, UEFI AMI BIOS

В комплекта ще откриете:

2 x SATA 6Gb/s кабели
1 x M. 2 Screw Package
I/O Shield
Ръководство
Гаранция: 36 месеца
