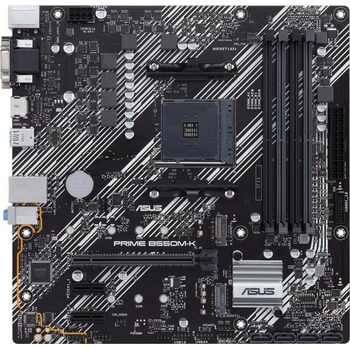

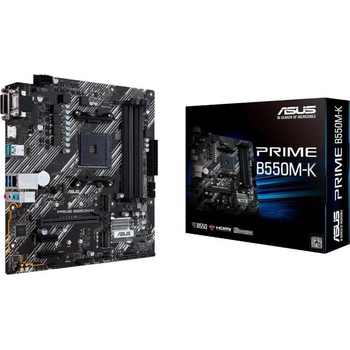

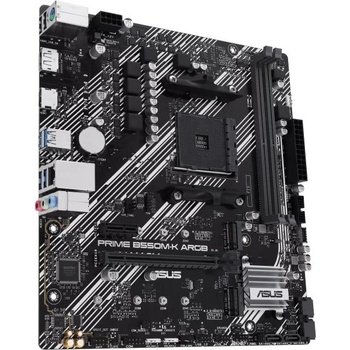

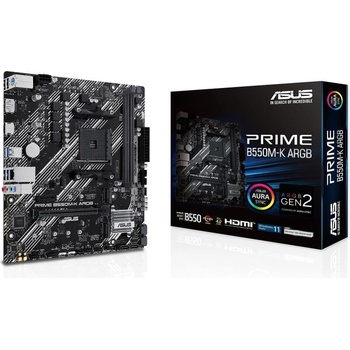

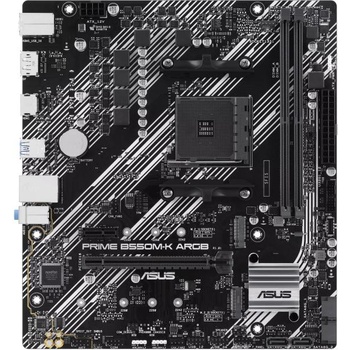

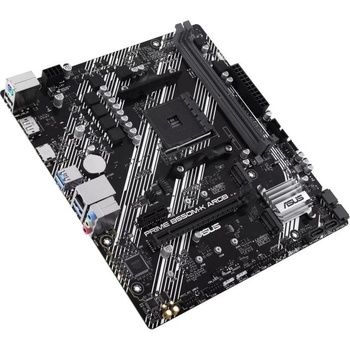

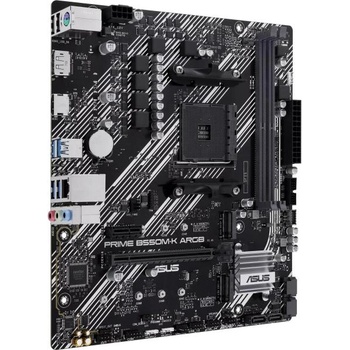

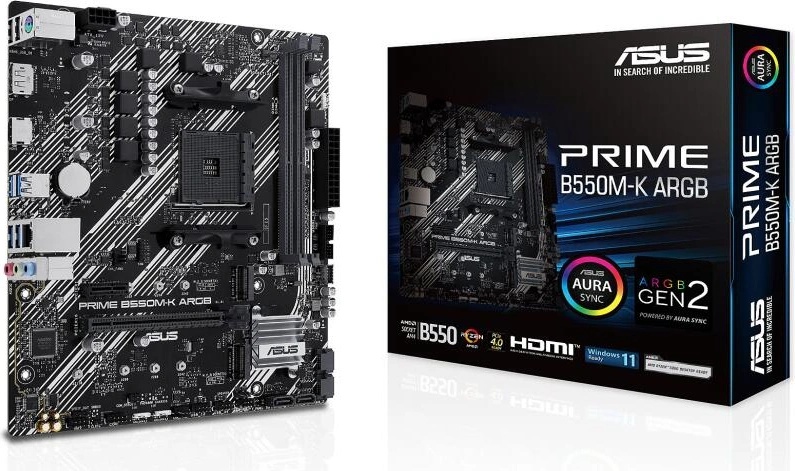

ASUS PRIME B550M-K ARGB

Feature
Details

Chipset
AMD B550 Chipset

Memory
2 x DIMM slots, Max. 64GB, DDR4 5100(OC)/4866(OC)/4600(OC)/4466(OC)/4400 (OC)/4333(OC)/4266(OC)/4200(OC)/4133(OC) /4000(OC)/3866(OC)/3733(OC)/3600(OC)/346 6(OC)/3400(OC)/3333(OC)/3200/3000/2933/2 800/2666/2400/2133, Un-buffered Memory*Dual Channel Memory Architecture* ECC memory (ECC mode) support varies by CPU. * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www. asus. com/support/.

Graphics
1 x DisplayPort**1 x HDMI port**** Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications. ** Supports max. 4K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI 2.1.

Expansion Slots
AMD Ryzen 5000 Series/ 3000 Series Desktop Processors1 x PCIe 4.0 x16 slot (supports x16 mode)AMD Ryzen 5000 G-Series/ 4000 G-Series Desktop Processors1 x PCIe 3.0 x16 slot (supports x16 mode)AMD B550 Chipset1 x PCIe 3.0 x1 slot* Please check the PCIe bifurcation table on the support site (https://www. asus. com/support/FAQ/1037507/). - To ensure compatibility of the device installed, please refer to https://www. asus. com/support/ for the list of supported peripherals.

Storage
Total supports 2 x M. 2 slots and 4 x SATA 6Gb/s ports*AMD Ryzen 5000 Series/ 3000 Series Desktop ProcessorsM. 2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)AMD Ryzen 5000 G-Series/ 4000 G-Series Desktop ProcessorsM. 2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)AMD B550 ChipsetM. 2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)4 x SATA 6Gb/s ports* AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10.

Ethernet
1 x Realtek 1Gb Ethernet

USB
Rear USB (Total 6 ports)4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A)2 x USB 2.0 ports (2 x Type-A)Front USB (Total 7 ports)1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C®)1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports2 x USB 2.0 headers support 4 additional USB 2.0 ports

Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC*- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking- Supports up to 24-Bit/192 kHz playbackAudio Features- Audio Shielding- Premium audio capacitors- Dedicated audio PCB layers* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Back Panel I/O Ports
4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A)2 x USB 2.0 ports (2 x Type-A)1 x DisplayPort1 x HDMI port1 x Realtek 1Gb Ethernet port3 x Audio jacks1 x PS/2 Keyboard/Mouse combo port

Internal I/O Connectors
Fan and Cooling related1 x 4-pin CPU Fan header2 x 4-pin Chassis Fan headersPower related1 x 24-pin Main Power connector1 x 8-pin +12V Power connectorStorage related2 x M. 2 slots (Key M)4 x SATA 6Gb/s portsUSB1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C® )1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports2 x USB 2.0 headers support 4 additional USB 2.0 portsMiscellaneous3 x Addressable Gen 2 headers1 x Clear CMOS header1 x COM Port header1 x Front Panel Audio header (AAFP)1 x S/PDIF Out header1 x Speaker header1 x SPI TPM header (14-1 pin)1 x 10-1 pin System Panel header

Special Features
ASUS 5X PROTECTION III- DIGI+ VRM- LANGuard- Overvoltage Protection- SafeSlot Core- Stainless-Steel Back I/OASUS Q-Design- Q-DIMM- Q-LED Core- Q-SlotASUS Thermal Solution- Aluminum heatsink designAura Sync- Addressable Gen 2 headers

Software Features
ASUS Exclusive SoftwareArmoury Crate- Aura Creator- Aura SyncAI Suite 3- Performance And Power Saving UtilityTurboV EVOEPUDIGI+ VRMFan Xpert 2+- EZ updateASUS CPU-ZNorton 360 Deluxe (60 Days Free Trial)WinRARUEFI BIOSASUS EZ DIY- ASUS CrashFree BIOS 3- ASUS EZ Flash 3- ASUS UEFI BIOS EZ Mode

BIOS
128 Mb Flash ROM, UEFI AMI BIOS

Manageability
WOL by PME, PXE

Accessories
Cables2 x SATA 6Gb/s cablesMiscellaneous1 x I/O Shield1 x Screw package for M. 2 SSDDocumentation1 x User guide

Operating System
Windows® 11, Windows® 10 64-bit

Form Factor
micro-ATX Form Factor9.6 inch x 8.7 inch ( 24.4 cm x 22.1 cm )
