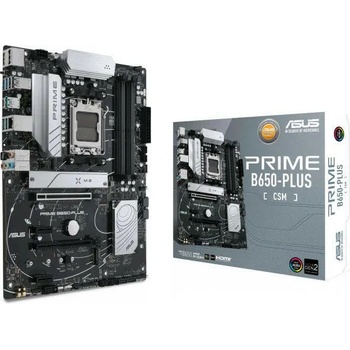

ASUS PRIME B650-PLUS-CSM

Допълнителни снимки на продукта:

Снимка 1 Снимка 2
ASUS PRIME B650-PLUS-CSUPERMICRO /AM5

USB: Rear USB (Total 8 ports);4 x USB 3.2 Gen 2 ports (3 x Type-A + 1 x USB Type-C®);2 x USB 3.2 Gen 1 ports (2 x Type-A);2 x USB 2.0 ports (2 x Type-A);Front USB (Total 7 ports);1 x USB 3.2 Gen 1 connector (supports USB Type-C®);1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports;2 x USB 2.0 headers support 4 additional USB 2.0 ports
Manufacturer: ASUS
Wireless: Vertical M. 2 slot only (Key E, PCIe)
Memory type: 4 x DIMM, Max. 192GB, DDR5 7600+(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC and Non-ECC, Un-buffered Memory;Dual Channel Memory Architecture;Supports AMD Extended Profiles for Overclocking (EXPO);OptiMem II
Features: ASUS 5X PROTECTION III;- DIGI+ VRM;- LANGuard;- Overvoltage Protection;- Safeslot Core+;- Stainless-Steel Back I/O;ASUS Q-Design;- Q-DIMM;- Q-LED Core;- Q-Slot;ASUS Thermal Solution;- Flexible M. 2 heatsink;- VRM heatsink design;ASUS EZ DIY;- BIOS FlashBack button;- BIOS FlashBack LED;- ProCool;Aura Sync;- Aura RGB header;- Addressable Gen 2 headers;Software Features:;ASUS Exclusive Software;Armoury Crate;- Aura Creator;- Aura Sync;- Fan Xpert 2+;- Power Saving;AI Suite 3;- TurboV EVO;- DIGI+ VRM- PC Cleaner;ASUS CPU-Z;IT Management software supported;- ASUS Control Center Express(ACCE);Norton Anti-virus software (Free Trial version);WinRAR;UEFI BIOS;ASUS EZ DIY;- ASUS CrashFree BIOS 3;- ASUS EZ Flash 3;- ASUS UEFI BIOS EZ Mode
CPU's supported: AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors
Chipset: AMD B650 Chipset
Graphics: 1 x DisplayPort;1 x HDMI® port
Expansion Slots: AMD Ryzen 9000 & 7000 Series Desktop Processors;1 x PCIe 4.0 x16 slot (supports x16 mode);AMD Ryzen 8000 Series Desktop Processors;1 x PCIe 4.0 x16 slot (supports x8/x4 mode);AMD B650 Chipset;1 x PCIe 4.0 x16 slot (supports x4 mode);2 x PCIe 4.0 x1 slots
Storage: Total supports 2 x M. 2 slots and 4 x SATA 6Gb/s ports;AMD Ryzen 9000 & 7000 Series Desktop Processors;M. 2_1 slot (Key M), type 2242/ 2260/ 2280/ 22110 (supports PCIe 5.0 x4 mode);M. 2_2 slot (Key M), type 2242/ 2260/ 2280/ 22110 (supports PCIe 4.0 x4 mode);AMD Ryzen 8000 Series Desktop Processors;M. 2_1 slot (Key M), type 2242/ 2260/ 2280 (supports PCIe 4.0 x4 mode);M. 2_2 slot (Key M), type 2242/ 2260/ 2280/ 22110 (supports PCIe 4.0 x4/x2 mode);AMD B650 Chipset;4 x SATA 6Gb/s ports
I/O: 4 x USB 3.2 Gen 2 ports (3 x Type-A + 1 x USB Type-C®);2 x USB 3.2 Gen 1 ports (2 x Type-A);2 x USB 2.0 ports (2 x Type-A);1 x DisplayPort;1 x HDMI® port;1 x Vertical M. 2 slot (Key E);1 x Realtek 2.5Gb Ethernet port;5 x Audio jacks;1 x Optical S/PDIF out port;1 x BIOS FlashBack button
Connectors: Fan and Cooling related;1 x 4-pin CPU Fan header;1 x 4-pin CPU OPT Fan header;1 x 4-pin AIO Pump header;3 x 4-pin Chassis Fan headers;Power related;1 x 24-pin Main Power connector;1 x 8-pin +12V Power connector;Storage related;2 x M. 2 slots (Key M)4 x SATA 6Gb/s ports;USB;1 x USB 3.2 Gen 1 connector (supports USB Type-C® );1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports;2 x USB 2.0 headers support 4 additional USB 2.0 ports;Miscellaneous;3 x Addressable Gen 2 headers;1 x Aura RGB header;1 x Clear CMOS header;1 x COM Port header;1 x Front Panel Audio header (AAFP);1 x SPI TPM header (14-1pin);1 x 20-3 pin System Panel header with Chassis intrude function;1 x Thunderbolt (USB4®) header
Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC;- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking;- Supports up to 24-Bit/192 kHz playback;Audio Features;- Audio Shielding;- Premium audio capacitors;- Dedicated audio PCB layers
LAN: 1 x Realtek 2.5Gb Ethernet
BIOS: 256 Mb Flash ROM, UEFI AMI BIOS
Form Factor: ATX Form Factor, 30.5 cm x 24.4 cm
OS: Windows® 11, Windows® 10 64-bit



.
