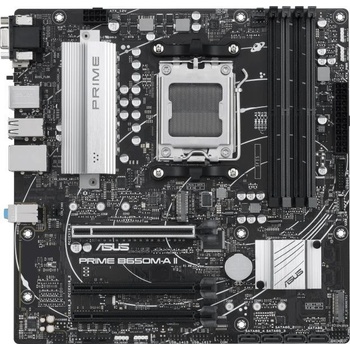

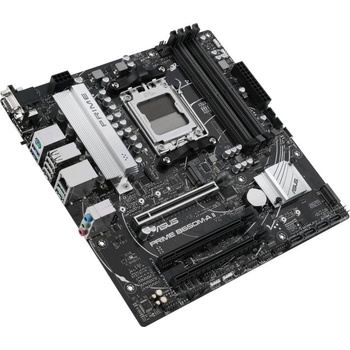

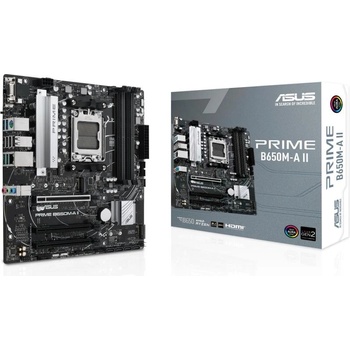

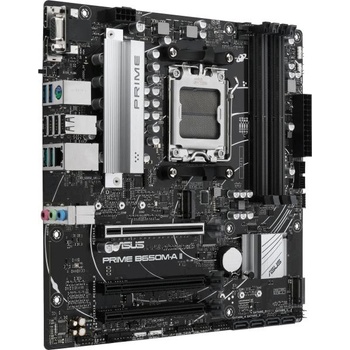

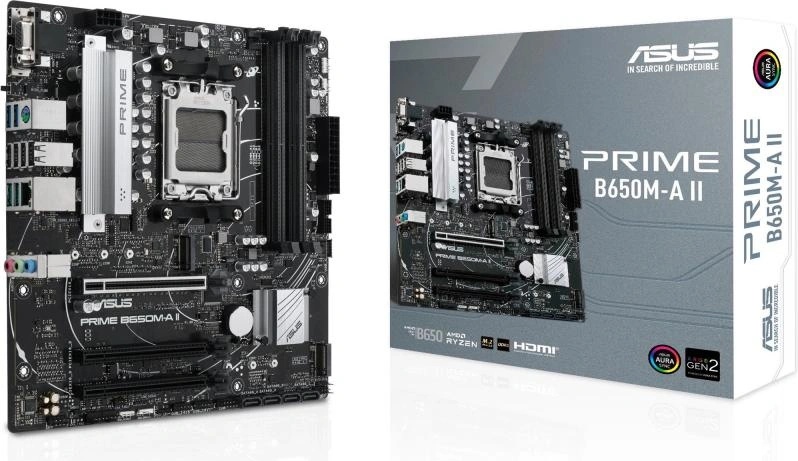

ASUS PRIME B650M-A II

Допълнителни снимки на продукта:

Снимка 1 Снимка 2 Снимка 3
ASUS PRIME B650M-A II

Graphics: 1 x DisplayPort**; 1 x VGA port; 1 x HDMI® port***
CPU's supported: AMD Socket AM5 for AMD Ryzen 7000 Series Desktop Processors*
Chipset: AMD B650 Chipset
Expansion Slots: AMD Ryzen 7000 Series Desktop Processors; 1 x PCIe 4.0 x16 slot (supports x16 mode); AMD B650 Chipset; 2 x PCIe 4.0 x16 slots (support x1 mode)
Storage: Total supports 2 x M. 2 slots and 4 x SATA 6Gb/s ports*; AMD Ryzen 7000 Series Desktop Processors; M. 2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode); AMD B650 Chipset; M. 2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode); 4 x SATA 6Gb/s ports; * AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10.
Memory type: 4 x DIMM, Max. 128GB, DDR5 6400+(OC)/6200(OC)/6000(OC)/5800(OC)/560 0(OC)/5400(OC)/5200/5000/4800 ECC and Non-ECC, Un-buffered Memory*; Dual Channel Memory Architecture; Supports AMD Extended Profiles for Overclocking (EXPO); OptiMem II
I/O: 2 x USB 3.2 Gen 2 ports (2 x Type-A); 2 x USB 3.2 Gen 1 ports (2 x Type-A); 4 x USB 2.0 ports (4 x Type-A); 1 x DisplayPort; 1 x VGA port; 1 x HDMI® port; 1 x Realtek 2.5Gb Ethernet port; 3 x Audio jacks; 1 x BIOS FlashBack button; 1 x PS/2 Keyboard/Mouse combo port
Connectors: 1 x 4-pin CPU Fan header; 1 x 4-pin CPU OPT Fan header; 3 x 4-pin Chassis Fan headers; 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector; 2 x M. 2 slots (Key M); 4 x SATA 6Gb/s ports; 1 x USB 3.2 Gen 1 connector (supports USB Type-C® ); 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports; 2 x USB 2.0 headers support 4 additional USB 2.0 ports; 3 x Addressable Gen 2 headers; 1 x Aura RGB header; 1 x Clear CMOS header; 1 x COM Port header; 1 x Front Panel Audio header (AAFP); 1 x S/PDIF Out header; 1 x Speaker header; 1 x SPI TPM header (14-1pin); 1 x 10-1 pin System Panel header
Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC*; - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking; - Supports up to 24-Bit/192 kHz playback; Audio Features; - Audio Shielding; - Premium audio capacitors; - Dedicated audio PCB layers
LAN: 1 x Realtek 2.5Gb Ethernet
BIOS: 256 Mb Flash ROM, UEFI AMI BIOS
Form Factor: mATX Form Factor; 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
OS: Windows® 11, Windows® 10 64-bit
Warranty: 36 Months



.
