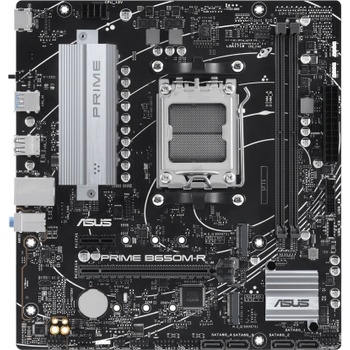

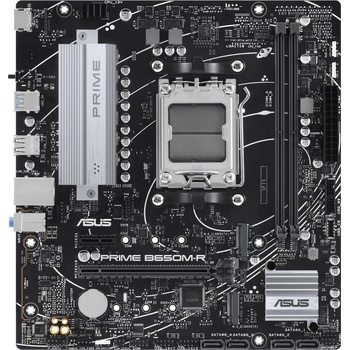

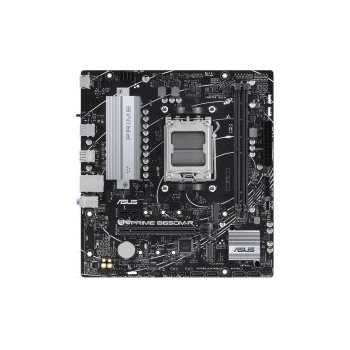

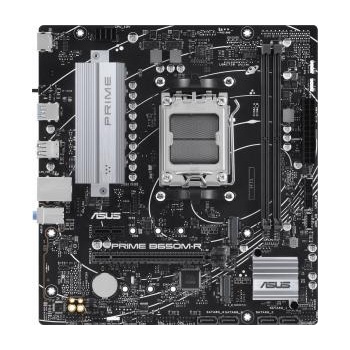

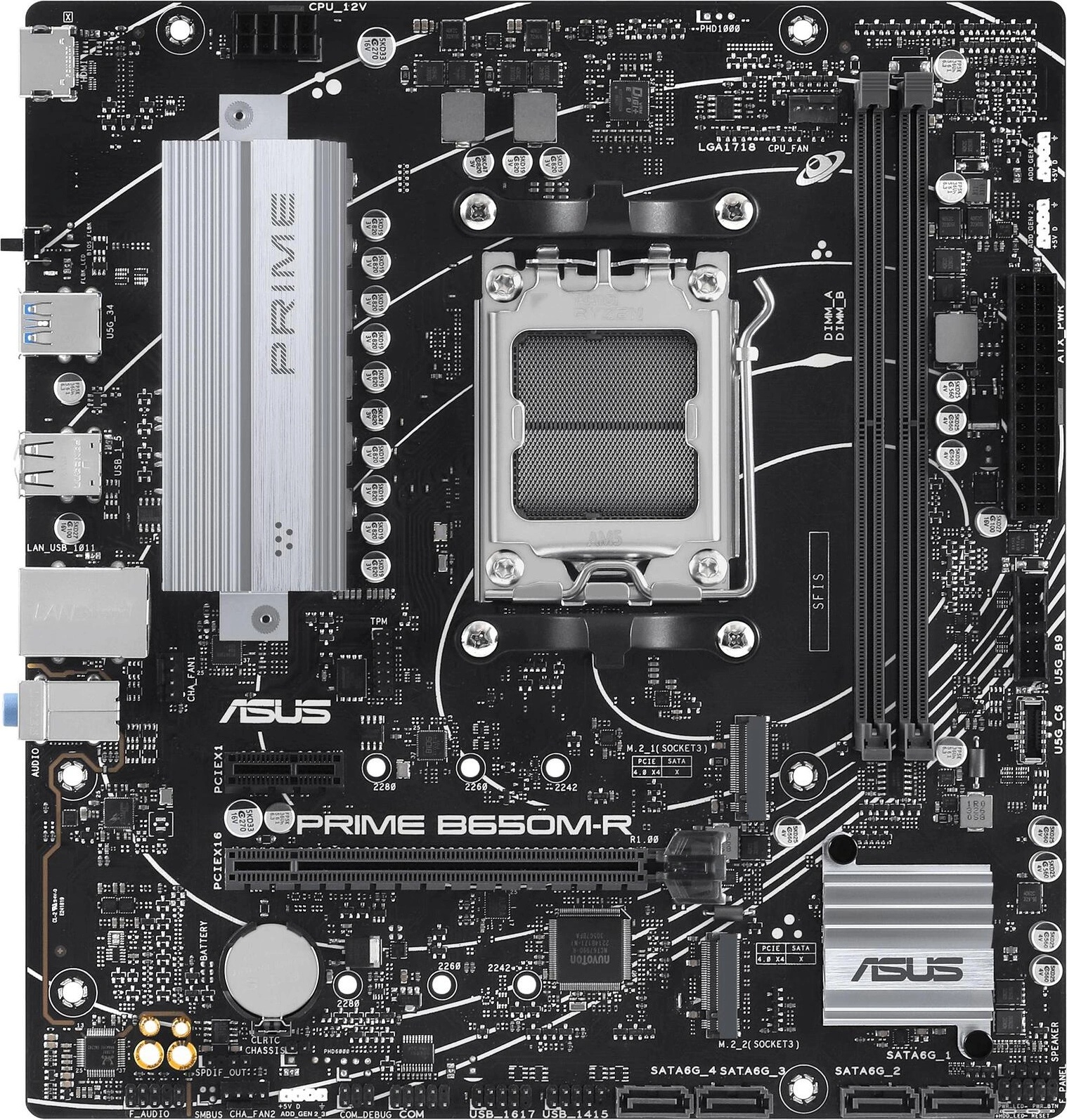

ASUS PRIME B650M-R

Допълнителни снимки на продукта:

Снимка 1 Снимка 2 Снимка 3
ASUS PRIME B650M-R

USB: Rear USB (Total 6 ports);2 x USB 5Gbps ports (2 x Type-A);4 x USB 2.0 ports (4 x Type-A);Front USB (Total 7 ports);1 x USB 5Gbps connector (supports USB Type-C®);1 x USB 5Gbps header supports 2 additional USB 5Gbps ports;2 x USB 2.0 headers support 4 additional USB 2.0 ports
Manufacturer: ASUS
Memory type: 2 x DIMM slots, Max. 96GB, DDR5 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory;Dual Channel Memory Architecture;Supports AMD Extended Profiles for Overclocking (EXPO);OptiMem II
Features: ASUS 5X PROTECTION III;- DIGI+ VRM;- LANGuard;- Overvoltage Protection;- Safeslot Core;- Stainless-Steel Back I/O;ASUS Q-Design;- Q-DIMM;- Q-LED Core;- Q-Slot;ASUS Thermal Solution;- VRM heatsink design;ASUS EZ DIY;- BIOS FlashBack button;- BIOS FlashBack LED;Aura Sync;- Addressable Gen 2 headers
CPU's supported: AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors
Chipset: AMD B650 Chipset
Graphics: 1 x HDMI port
Expansion Slots: AMD Ryzen 9000 & 7000 Series Desktop Processors;1 x PCIe 4.0 x16 slot (supports x16 mode);AMD Ryzen 8000 Series Desktop Processors;1 x PCIe 4.0 x16 slot (supports x8/x4 mode);AMD B650 Chipset;1 x PCIe 4.0 x1 slots
Storage: Supports 2 x M. 2 slots and 4 x SATA 6Gb/s ports;AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors;M. 2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode);AMD B650 Chipset;M. 2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode);4 x SATA 6Gb/s ports
I/O: 2 x USB 5Gbps ports (2 x Type-A);4 x USB 2.0 ports (4 x Type-A);1 x HDMI port;1 x Realtek 2.5Gb Ethernet port;3 x Audio jacks;1 x BIOS FlashBack button
Connectors: Fan and Cooling related;1 x 4-pin CPU Fan header;2 x 4-pin Chassis Fan headers;Power related;1 x 24-pin Main Power connector;1 x 8-pin +12V Power connector;Storage related;2 x M. 2 slots (Key M);4 x SATA 6Gb/s ports;USB;1 x USB 5Gbps connector (supports USB Type-C® );1 x USB 5Gbps header supports 2 additional USB 5Gbps ports;2 x USB 2.0 headers support 4 additional USB 2.0 ports;Miscellaneous;3 x Addressable Gen 2 headers;1 x Clear CMOS header;1 x COM Port header;1 x Front Panel Audio header (AAFP);1 x S/PDIF Out header;1 x Speaker header;1 x SPI TPM header (14-1pin);1 x 10-1 pin System Panel header
Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC*;- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking;- Supports up to 24-Bit/192 kHz playback;Audio Features;- Audio Shielding;- Premium audio capacitors;- Dedicated audio PCB layers;* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
LAN: 1 x Realtek 2.5Gb Ethernet
BIOS: 256 Mb Flash ROM, UEFI AMI BIOS
Form Factor: micro-ATX Form Factor;23.6 cm x 22.1 cm
OS: Windows® 11, Windows® 10 64-bit



.
