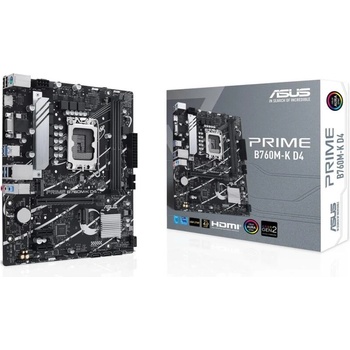

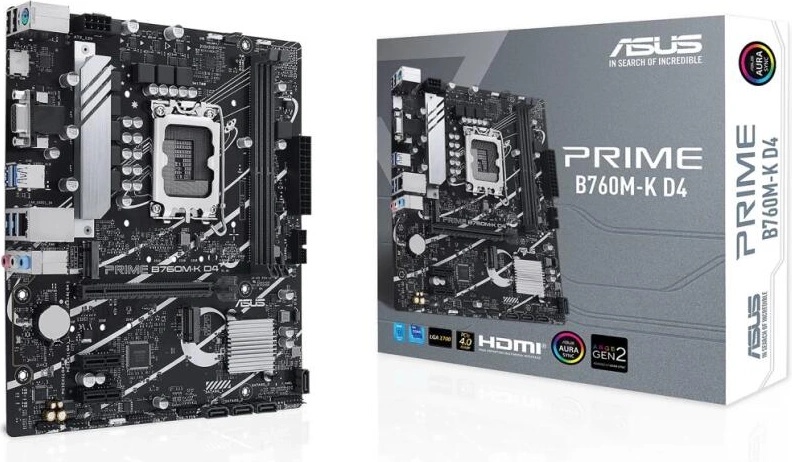

ASUS PRIME B760M-K D4

Model
PRIME B760M-K D4

CPU
Intel® Socket LGA1700 for 13th Gen Intel® Core Processors & 12th Gen Intel® Core, Pentium® Gold and Celeron® Processors*Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0*** Refer to www. asus. com for CPU support list. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset
Intel® B760 Chipset

Memory
2 x DIMM, Max. 64GB, DDR4 5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600 (OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC) /3600(OC)/3466(OC)/3400(OC)/3333(OC)/320 0/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP)* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www. asus. com/support/.

Graphics
1 x VGA port1 x HDMI® port*** Graphics specifications may vary between CPU types. Please refer to www. intel. com for any updates. ** Supports 4K@60Hz as specified in HDMI® 2.1.

Expansion Slots
Intel® 13th & 12th Gen Processors1 x PCIe 4.0 x16 slotIntel® B760 Chipset2 x PCIe 4.0 x1 slotsNote: To ensure compatibility of the device installed, please refer to https://www. asus. com/support/ for the list of supported peripherals.

Storage
Total supports 2 x M. 2 slots and 4 x SATA 6Gb/s ports*Intel® 13th & 12th Gen ProcessorsM. 2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)Intel® B760 Chipset M. 2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)4 x SATA 6Gb/s ports* Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.

Ethernet
1 x Realtek 2.5Gb Ethernet

USB
Rear USB (Total 6 ports)4 x USB 3.2 Gen 1 ports (4 x Type-A)2 x USB 2.0 ports (2 x Type-A）Front USB (Total 5 ports)1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports2 x USB 2.0 headers support 3 additional USB 2.0 ports

Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC*- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking- Supports up to 24-Bit/192 kHz playbackAudio Features - Audio Shielding- Premium audio capacitors- Dedicated audio PCB layers* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Back Panel I/O Ports
4 x USB 3.2 Gen 1 ports (4 x Type-A)2 x USB 2.0 ports (2 x Type-A) 1 x VGA port1 x HDMI® port1 x Realtek 2.5Gb Ethernet port3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo port

Internal I/O Connectors
Fan and Cooling related 1 x 4-pin CPU Fan header1 x 4-pin Chassis Fan headerPower related 1 x 24-pin Main Power connector1 x 8-pin +12V Power connectorStorage related 2 x M. 2 slots (Key M) 4 x SATA 6Gb/s portsUSB 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports2 x USB 2.0 headers support 3 additional USB 2.0 portsMiscellaneous2 x Addressable Gen 2 headers1 x Aura RGB header1 x Clear CMOS header1 x COM Port header1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header1 x Speaker header1 x SPI TPM header (14-1pin)1 x 10-1 pin System Panel header

Special Features
ASUS 5X PROTECTION III - DIGI+ VRM- LANGuard - Overvoltage Protection- SafeSlot Core - Stainless-Steel Back I/OASUS Q-Design - Q-DIMM- Q-LED Core- Q-SlotASUS EZ DIY- ProCoolASUS Thermal Solution- VRM heatsink designAura Sync- Aura RGB header- Addressable Gen 2 headers

Software Features
ASUS Exclusive SoftwareArmoury Crate- Aura Sync- Fan Xpert- Power SavingAI Suite 3- DIGI+ VRM- PC CleanerASUS CPU-ZNorton 360 Deluxe (60 Days Free Trial)WinRARUEFI BIOSASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode

BIOS
128 Mb Flash ROM, UEFI AMI BIOS

Manageability
WOL by PME, PXE

Accessories
Cables2 x SATA 6Gb/s cables Miscellaneous1 x I/O Shield 2 x M. 2 anchorsDocumentation1 x User guide

Operating System
Windows® 11, Windows® 10 64-bit

Form Factor
mATX Form Factor9.6 inch x 8.3 inch (24.4cm x 21.1cm)
