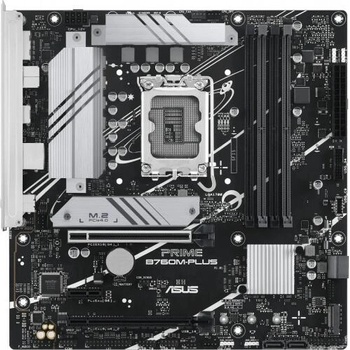

ASUS Prime B760M-PLUS

Asus PRIME B760M-PLUS
90MB1GY0-M0EAY0

CPU
Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0*
* Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset
Intel B760 Chipset

Memory
4x DIMM slots, max. 192GB, DDR5
7200+(OC)/7000(OC)/6800(OC)/6600(OC) /6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
ASUS Enhanced Memory Profile II (AEMP II)
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration.
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

Graphics
1x DisplayPort**
1x HDMI port***
* Graphics specifications may vary between CPU types.
** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI 2.1.

Expansion Slots
Intel Core Processors (14th & 13th & 12th Gen)*
1x PCIe 4.0 x16 slot
Intel B760 Chipset
1x PCIe 4.0 x16 slot (supports x4 mode)
1x PCIe 4.0 x1 slot

Storage
Total supports 2x M. 2 slots and 4 x SATA 6Gb/s ports*
Intel Core Processors (14th & 13th & 12th Gen)
M. 2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Intel B760 Chipset
M. 2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
4x SATA 6Gb/s ports
* Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.

Ethernet
1x Realtek 2.5Gb Ethernet
ASUS LANGuard

USB
Rear USB (Total 6 ports)
2x USB 10Gbps ports (2x Type-A)
4x USB 2.0 ports (4x Type-A)
Front USB (Total 8 ports)
1x USB 5Gbps connector ((supports USB Type-C)
1x USB 5Gbps headers support 2 additional USB 5Gbps ports
3x USB 2.0 header support 5 additional USB 2.0 ports
* USB Type-C power delivery output: max. 5V/3A

Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback"
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Back Panel I/O Ports
2x USB 10Gbps ports (2x Type-A)
4x USB 2.0 ports (4x Type-A)
1x DisplayPort
1x HDMI port
1x Realtek 2.5Gb Ethernet port
3x Audio jacks
1x PS/2 Keyboard/Mouse combo port

Internal I/O Connectors
Fan and Cooling related
1x 4-pin CPU Fan header
1x 4-pin CPU OPT Fan header
2x 4-pin Chassis Fan headers
Power related
1x 24-pin Main Power connector
1x 8-pin +12V Power connector
Storage related
2x M. 2 slots (Key M)
4x SATA 6Gb/s ports
USB
1x USB 5Gbps connector (supports USB Type-C)
1x USB 5Gbps header supports 2 additional USB 5Gbps ports
3x USB 2.0 header support 5 additional USB 2.0 ports
Miscellaneous
3x Addressable Gen 2 headers
1x Aura RGB header
1x Clear CMOS header
1x COM Port header
1x Front panel audio header (F_AUDIO)
1x LPT header
1x S/PDIF Out header
1x SPI TPM header (14-1pin)
1x 20-3 pin System Panel header with Chassis intrude function

Special Features
ASUS 5X PROTECTION III
- DIGI+ VRM (- Digital power design with DrMOS)
- ESD Guards
- LANGuard
- SafeSlot Core+
- Stainless-Steel Back I/O
ASUS Q-Design
- Q-DIMM
- Q-LED Core
- Q-Slot
ASUS Thermal Solution
- M. 2 heatsink
- VRM heatsink design
ASUS EZ DIY
- ProCool
AURA Sync
- AURA RGB header
- Addressable Gen 2 headers

UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode

BIOS
128 Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE

Operating System
Windows 11, Windows 10 64-bit

Form Factor
micro-ATX Form Factor
24.4 cm x 24.4 cm
