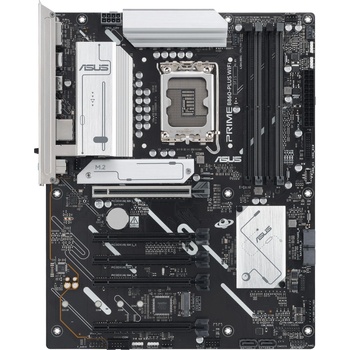

ASUS PRIME B860-PLUS WIFI (90MB1K50-M0EAY0)

Допълнителни снимки на продукта:

Снимка 1 Снимка 2 Снимка 3 Снимка 4 Снимка 5
ASUS PRIME B860-PLUS WIFI

USB: Rear USB (Total 8 ports);1 x USB 20Gbps port (1 x USB Type-C®);2 x USB 10Gbps ports (2 x Type-A);1 x USB 5Gbps port (1 x Type-A);4 x USB 2.0 ports (4 x Type-A);Front USB (Total 5 ports);1 x USB 5Gbps port (1 x USB Type-C®);1 x USB 5Gbps header supports additional 2 USB 5Gbps ports;1 x USB 2.0 header supports 2 additional USB 2.0 ports
Manufacturer: ASUS
Wireless: Wi-Fi 6E 2x2 Wi-Fi 6E (802.11ax);Supports 2.4/5/6GHz frequency band
Memory type: 4 x DIMM slots, max. 256GB, DDR5;Support up to 8666+MT/s (OC), Non-ECC, Un-buffered , Clocked Unbuffered DIMM (CUDIMM);Dual channel memory architecture;DIMM Fit;Supports Intel® Extreme Memory Profile (XMP) memory module;ASUS Enhanced Memory Profile III (AEMP III)
Features: ASUS 5X PROTECTION III;-DIGI+ VRM (- Digital power design with DrMOS);- LANGuard;- Overvoltage Protection;- SafeSlot;- Stainless-steel back I/O;ASUS Q-Design;- Q-Antenna;- Q-Dashboard;- Q-DIMM;- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]);- Q-Slot;ASUS Thermal Solution;- M. 2 heatsink;- VRM heatsink design;ASUS EZ DIY;- ProCool;- Pre-mounted I/O shield;Aura Sync;- Aura RGB header;- Addressable Gen 2 headers
CPU's supported: Support Intel® Core Ultra Processors (Series 2) , LGA1851;Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
Chipset: Intel® B860 Chipset
Bluetooth: Bluetooth® v5.3
Graphics: 1 x DisplayPort;1 x HDMI port
Expansion Slots: Intel® Core Ultra Processors (Series 2);1 x PCIe 5.0 x16 slot (PCIEX16(G5));Intel® B860 Chipset;1 x PCIe 4.0 x16 slot (PCIEX16(G4)_3) (supports x4 mode);3 x PCIe 4.0 x16 slots (PCIEX16(G4)_1/2/4) (support x1 mode)
Storage: Intel® Core Ultra Processors (Series 2);1 x PCIe 5.0 x16 slot (PCIEX16(G5));Intel® B860 Chipset;1 x PCIe 4.0 x16 slot (PCIEX16(G4)_3) (supports x4 mode);3 x PCIe 4.0 x16 slots (PCIEX16(G4)_1/2/4) (support x1 mode) Total supports 2 x M. 2 slots and 4 x SATA 6Gb/s ports;Intel® Core Ultra Processors (Series 2);M. 2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode);Intel® B860 Chipset;M. 2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode);4 x SATA 6Gb/s ports
I/O: 1 x USB 20Gbps port (1 x USB Type-C®);2 x USB 10Gbps ports (2 x Type-A);1 x USB 5Gbps port (1 x Type-A);4 x USB 2.0 ports (4 x Type-A);1 x DisplayPort;1 x HDMI port;1 x Wi-Fi module;1 x Realtek 2.5Gb Ethernet port;3 x Audio jacks
Connectors: Fan and Cooling related;1 x 4-pin CPU Fan header;1 x 4-pin CPU OPT Fan header;1 x 4-pin AIO Pump header;4 x 4-pin Chassis Fan headers;Power related;1 x 24-pin Main Power connector;1 x 8-pin +12V CPU Power connector;Storage related;2 x M. 2 slots (Key M);4 x SATA 6Gb/s ports;USB;1 x USB 5Gbps connector (supports USB Type-C®);1 x USB 5Gbps header supports 2 additional USB 5Gbps ports;1 x USB 2.0 header supports 2 additional USB 2.0 ports;Miscellaneous;3 x Addressable Gen 2 headers;1 x Aura RGB header;1 x Clear CMOS header;1 x Chassis Intrusion header;1 x COM Port header;1 x Front Panel Audio header (F_AUDIO);1 x S/PDIF Out header;1 x SPI TPM header (14-1pin);1 x 10-1 pin Front System Panel header;1 x Thunderbolt (USB4®) header
Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC;- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking;- Supports up to 24-Bit/192 kHz playback;Audio Features;- Audio Shielding;- Premium audio capacitors;- Dedicated audio PCB layers
LAN: 1 x Realtek 2.5Gb Ethernet;ASUS LANGuard
BIOS: 2 x 128 Mb Flash ROM, UEFI AMI BIOS
Form Factor: ATX Form Factor, 30.5 cm x 24.4 cm
OS: Windows 11 (22H2 & later), Windows 10 64-bit(21H2 & later)



.
