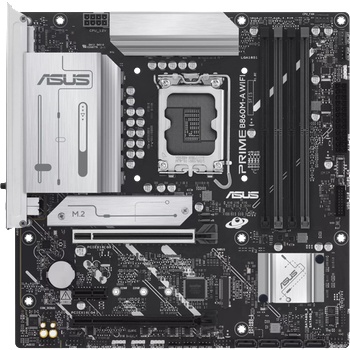

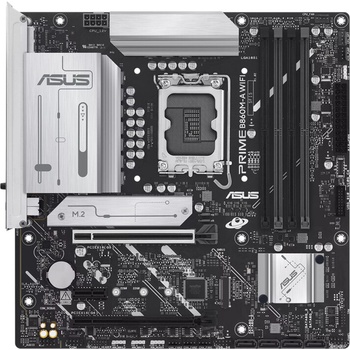

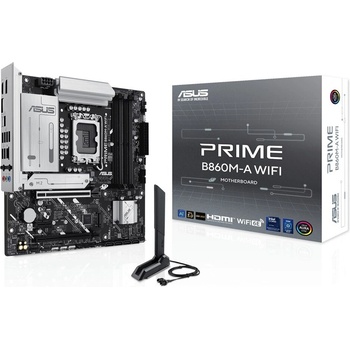

ASUS PRIME B860M-A WIFI (90MB1JY0-M0EAY0)

Основни Характеристики

Модел
PRIME B860M-A WIFI

Чипсет
Intel® B860 Chipset

Форм фактор
micro-ATX Form Factor (9.6 inch x 9.6 inch / 24.4 cm x 24.4 cm)

BIOS
256 (128+128) Mb Flash ROM, UEFI AMI BIOS

Операционна система
Windows 11 (22H2 & later), Windows 10 64-bit (21H2 & later)

Процесор (CPU)

Поддръжка на процесори
Support Intel® Core Ultra Processors (Series 2), LGA1851

Технологии
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0

Памет (Memory)

Слотове
4 x DIMM slots

Макс. памет
256GB, DDR5

Скорост (OC)
Supports up to 8666+MT/s (OC), Non-ECC, Un-buffered, CUDIMM

Архитектура
Dual channel memory architecture

Профили
Supports Intel® Extreme Memory Profile (XMP) memory module, ASUS Enhanced Memory Profile III (AEMPIII)

Слотове за Разширение (Expansion Slots)

От CPU
1 x PCIe 5.0 x16 slot

От Chipset

1 x PCIe 4.0 x16 slot (supports x4 mode)
1 x PCIe 4.0 x1 slot

Дискове и Съхранение (Storage)

Общо слотове
Total supports 2 x M. 2 slots and 4 x SATA 6Gb/s ports

M. 2 слотове (от CPU)
M. 2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)

M. 2 слотове (от Chipset)
M. 2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 modes)

SATA портове
4 x SATA 6Gb/s ports

RAID поддръжка
Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10

Мрежа и Безжична Връзка (Networking)

Ethernet
1 x Realtek 2.5Gb Ethernet (ASUS LANGuard)

Wi-Fi

Wi-Fi 6E (802.11ax) 2x2
Supports 2.4/5/6GHz frequency band

Bluetooth
v5.3

Видео (Graphics)

Портове

2 x DisplayPort (max. 4K@60Hz)
1 x HDMI port (4K@60Hz)
1 x USB 20Gbps port (USB Type-C®) supports DisplayPort video output (max. 4K@120Hz)

Аудио (Audio)

CODEC
Realtek 7.1 Surround Sound High Definition Audio CODEC

Характеристики

Audio Shielding
Premium audio capacitors
Dedicated audio PCB layers

Задни I/O Портове (Rear I/O Ports)

USB

1 x USB 20Gbps (Type-C® with DP Alt mode)
1 x USB 10Gbps (Type-A)
2 x USB 5Gbps (Type-A)
4 x USB 2.0 (Type-A)

Видео/Мрежа/Аудио

2 x DisplayPort
1 x HDMI port
1 x Wi-Fi module
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks

Вътрешни I/O Конектори (Internal I/O Connectors)

Вентилатори и Охлаждане

1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers

Захранване

1 x 24-pin Main Power connector
1 x 8-pin +12V CPU Power connector

USB Конектори

1 x USB 10Gbps connector (supports USB Type-C®)
1 x USB 5Gbps header (2 additional USB 5Gbps ports)
1 x USB 2.0 header (2 additional USB 2.0 ports)

Разни Конектори

3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x Chassis Intrusion header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x S/PDIF Out header
1 x SPI TPM header (14-1 pin)
1 x 10-1 pin Front System Panel header
1 x Thunderbolt (USB4®) header

Специални и Софтуерни Характеристики

ASUS 5X PROTECTION III
DIGI+ VRM, ESD Guards, LANGuard, Overvoltage protection, SafeSlot, Stainless-steel back I/O

ASUS Q-Design
Q-Antenna, Q-Dashboard, Q-DIMM, Q-LED Core, Q-Slot

ASUS Thermal Solution
M. 2 heatsink, VRM heatsink design

Aura Sync
Aura RGB header, Addressable Gen2 headers

Гаранция: 36 месеца
