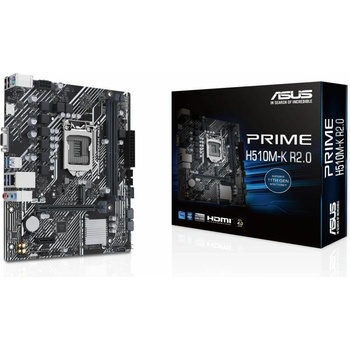

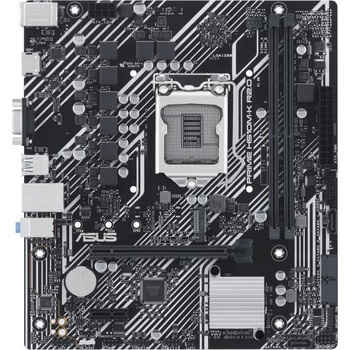

CPU

Intel ® Socket LGA1200 for 11 th Gen Intel ® CoreProcessors & 10 th Gen Intel ® Core , Pentium ® Gold and Celeron ® Processors*

Supports Intel ® 14 nm CPU

Supports Intel ® Turbo Boost Technology 2.0 and Intel ® Turbo Boost Max Technology 3.0**

* Refer to www. asus. com for CPU support list.

** Intel ® Turbo Boost Max Technology 3.0 support depends on the CPU types.



Chipset

Intel ® H470 Chipset



Memory

2 x DIMM, Max. 64GB, DDR4 3200(OC)/3000(OC)/2933/2800/2666/2400/21 33 Non-ECC, Un-buffered Memory*

Dual Channel Memory Architecture

Supports Intel ® Extreme Memory Profile (XMP)

* 10 th Gen Intel ® Corei7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666.

* 11 th Gen Intel ® processors support 3200(OC)/3000(OC)/2933/2800/2666/2400/21 33.

* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www. asus. com/support/.



Graphics

1 x VGA port

1 x HDMIport**

* Graphics specifications may vary between CPU types.

** Only Intel ® 11 th Gen processors support HDMI2.1 with max. resolution of 4K@60Hz, others will only support HDMI1.4 with max. resolution of 4K@30Hz. Please refer to www. intel. com for any updates.



Expansion Slots

Intel ® 11 th  & 10 th  Gen Processors*

1 x PCIe 4.0/3.0 x16 slot

- Intel ® 11 th Gen processors support PCIe 4.0 x16

- Intel ® 10 th Gen processors support PCIe 3.0 x16

Intel ® H470 Chipset

1 x PCIe 3.0 x1 slot



Storage

Total supports 1 x M. 2 slot and 4 x SATA 6Gb/s ports

Intel ® H470 Chipset

M. 2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)

4 x SATA 6Gb/s ports



Ethernet

1 x Realtek 1Gb Ethernet

USB

Rear USB (Total 6 ports)

4 x USB 3.2 Gen 1 ports (4 x Type-A)

2 x USB 2.0 ports (2 x Type-A)

Front USB (Total 6 ports)

1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports

2 x USB 2.0 headers support 4 additional USB 2.0 ports



Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC*

- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

- Supports up to 24-Bit/192 kHz playback

Audio Features

- Audio Shielding

- Premium audio capacitors

- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.



Back Panel I/O Ports

4 x USB 3.2 Gen 1 ports (4 x Type-A)

2 x USB 2.0 ports (2 x Type-A)

1 x VGA port

1 x HDMIport

1 x Realtek 1Gb Ethernet port

3 x Audio jacks

1 x PS/2 Keyboard/Mouse combo port

Internal I/O Connectors



Fan and Cooling related

1 x 4-pin CPU Fan header

1 x 4-pin Chassis Fan header

Power related

1 x 24-pin Main Power connector

1 x 8-pin +12V Power connector

Storage related

1 x M. 2 slot (Key M)

4 x SATA 6Gb/s ports

USB

1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports

2 x USB 2.0 headers support 4 additional USB 2.0 ports

Miscellaneous

1 x RGB header

1 x Clear CMOS header

1 x COM Port header

1 x Front Panel Audio header (AAFP)

1 x S/PDIF Out header

1 x Speaker header

1 x SPI TPM header (14-1pin)

1 x 10-1 pin System Panel header



Form Factor

micro-ATX, 22.6 cm x 20.3 cm



Продукт известен още и като PRIME H 510 M K R 2 0, PRIMEH510MKR20, PRIME H510M K R2.0, PRIMEH510M-KR20, PRIME H51 0M-K R2. 0
