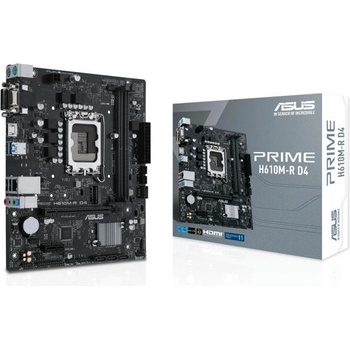

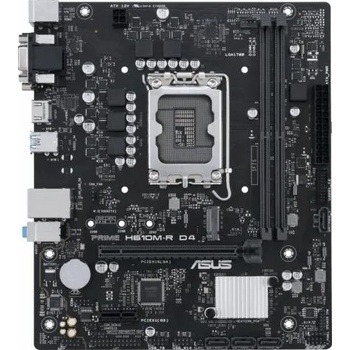

ASUS PRIME H610M-R D4 (90MB1B40-M0ECY0)

Допълнителни снимки на продукта:

Снимка 1 Снимка 2
ASUS PRIME H610M-R D4-SI

Graphics: 1 x D-Sub; 1 x DVI-D; 1 x HDMI® port**
CPU's supported: Intel® Socket LGA1700 for 12th Gen Intel® Core, Pentium® Gold and Celeron® Processors*; Supports up to Intel® 65W CPU; Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
Chipset: Intel® H610 Chipset
Expansion Slots: Intel® 12th Gen Processors; 1 x PCIe 4.0 x16 slot; Intel® H610 Chipset; 1 x PCIe 3.0 x1 slot
Storage: Total supports 1 x M. 2 slot and 4 x SATA 6Gb/s ports; Intel® H610 Chipset; M. 2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode); 4 x SATA 6Gb/s ports
Memory type: 2 x DIMM, Max. 64GB, DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*; Dual Channel Memory Architecture; Supports Intel® Extreme Memory Profile (XMP)
I/O: 2 x USB 3.2 Gen 1 ports (2 x Type-A); 2 x USB 2.0 ports (2 x Type-A); 1 x D-Sub port; 1 x DVI-D port; 1 x HDMI® port; 1 x Realtek 1Gb Ethernet port; 3 x Audio jacks; 1 x PS/2 Keyboard (purple) port; 1 x PS/2 Mouse (green) port
Connectors: 1 x 4-pin CPU Fan header; 1 x 4-pin Chassis Fan header; 1 x 24-pin Main Power connector; 1 x 4-pin +12V Power connector; 1 x M. 2 slot (Key M); 4 x SATA 6Gb/s ports; 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports; 2 x USB 2.0 headers support additional 4 USB 2.0 ports; 1 x Clear CMOS header; 1 x Chassis Intrusion header; 1 x COM Port header; 1 x Front Panel Audio header (AAFP); 1 x LPT header; 1 x Speaker header; 1 x SPI TPM header (14-1 pin); 1 x 10-1 pin System Panel header
Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC*; - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking; - Supports up to 24-Bit/192 kHz playback; Audio Features; - Audio Shielding; - Premium audio capacitors; - Dedicated audio PCB layers
LAN: 1 x Realtek 1Gb Ethernet
BIOS: 128 Mb Flash ROM, UEFI AMI BIOS
Form Factor: mATX Form Factor; 8.9 inch x 7.6 inch (22.6 cm x 19.3 cm )
OS: Windows® 11 64-bit, Windows® 10 64-bit
Warranty: 36 Months



.
